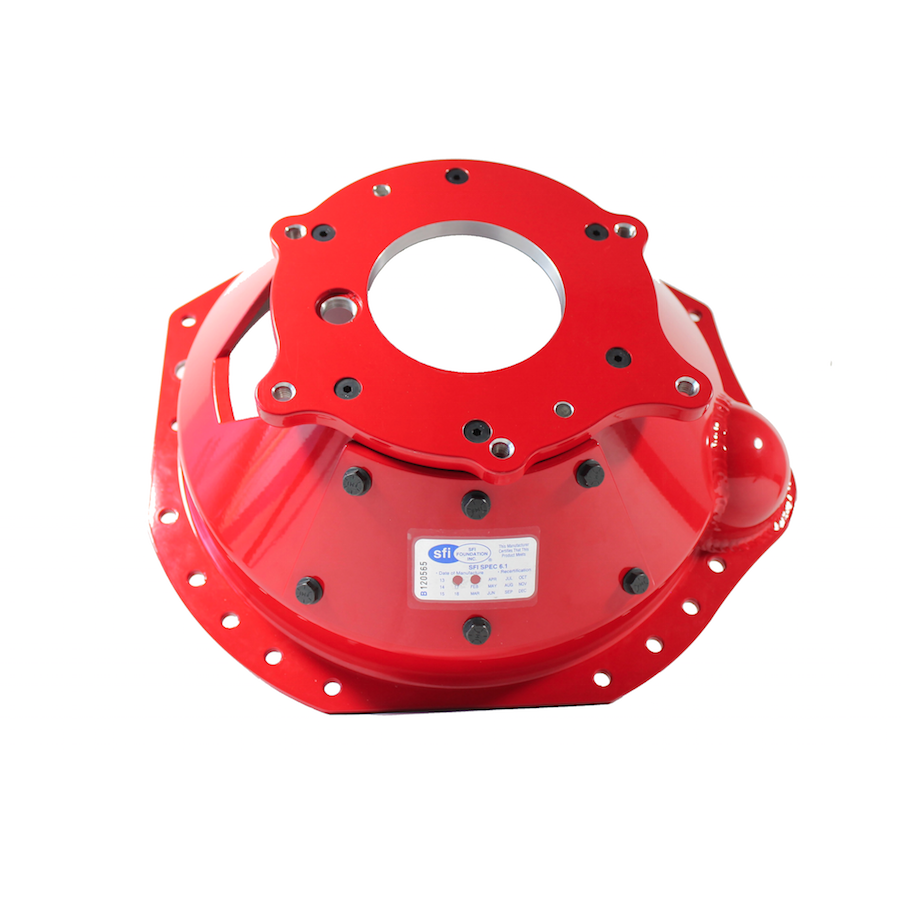

Bellhousing: Aluminum w/Titanium Liner: Ford: w/Block Plate: SFI 6.1

McLeod aluminum bellhousings are the gold standard when it comes to accuracy and compact performance. They're constructed of CNC-machined spun aluminum—with a narrow body design for lightness, and a titanium inner liner for added strength and protection. These bellhousing come with a removeable inspection cover to help aide in clutch adjustment between rounds. They come in two different configurations, SFI rated with a steel block plate that gives the bellhousing its SFI 6.1 rating. We also offer a Non- SFI rated version for those customers looking for a light weight bellhousing, but not concerned with a SFI rating so these units do not come with a steel block plate.

Additional Attributes:

GTIN: 00887753315830
Bellhousing Material: Aluminum With Titanium Liner
Block Plate Included: Yes
Engine: 1964-1995 SBF
Flywheel Fitment: Fits 164 Tooth Flywheel Only
Make: Ford
Note: This bell housing has a very specific fitment requirement. It requires a SBF with a flywheel that has a 164T Ring Gear and a transmission with a Borg Warner T-5 mounting pattern and input-shaft length. Aftermarket transmissions such as G-Force, Liberty Gears, Rockland Standard Gear, Astro Performance will work as long as the transmission fits the parameters listed above. Call McLeod Tech for further info 714-630-2764.
Quantity: Sold individually.
SFI-Approved: Yes
Stock Collar I.D. (in.): 4.850
Transmission: Borg Warner T-5

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 20 x 19 x 7 inches
Weight: 20 PG

PDF:

BellhousingInstructions
