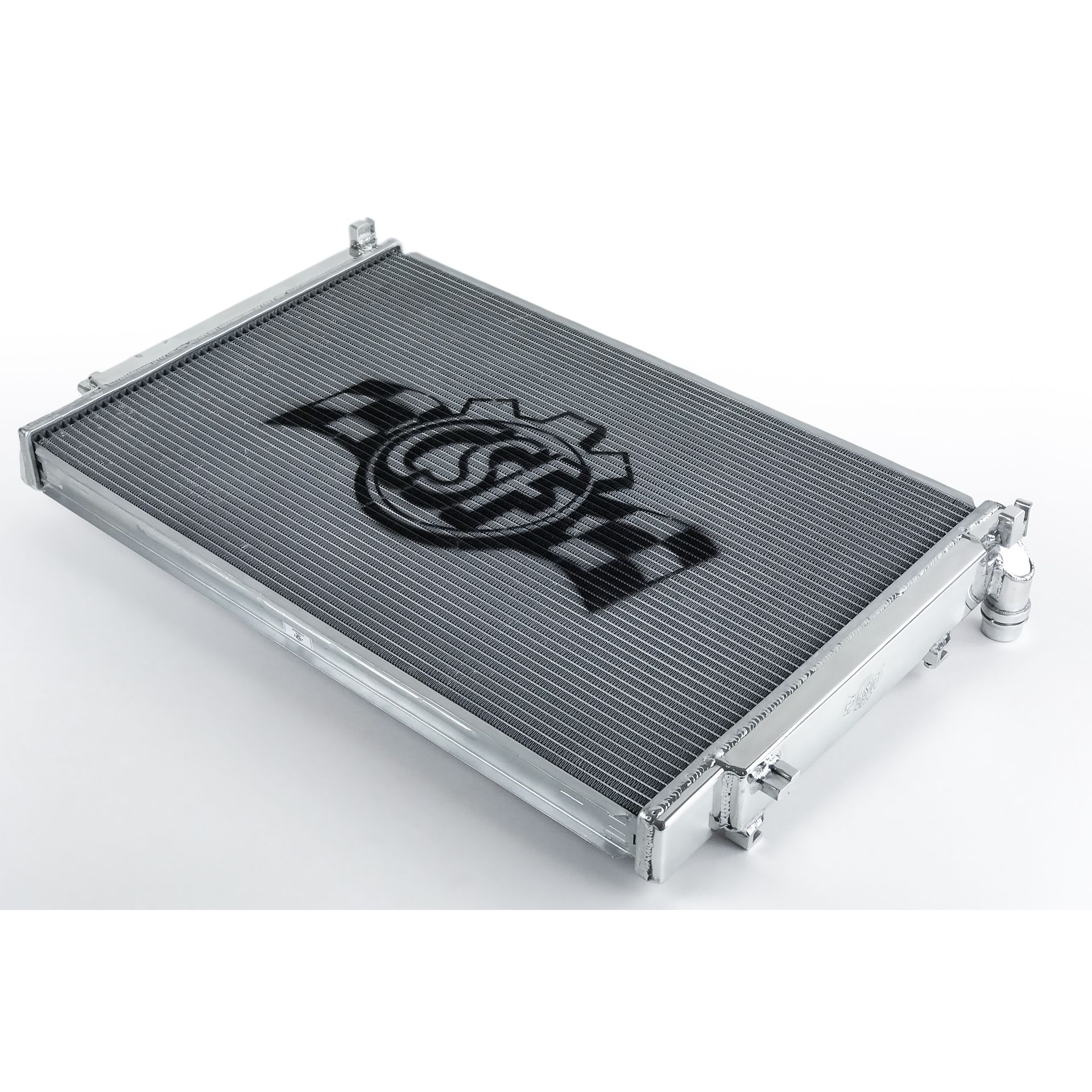

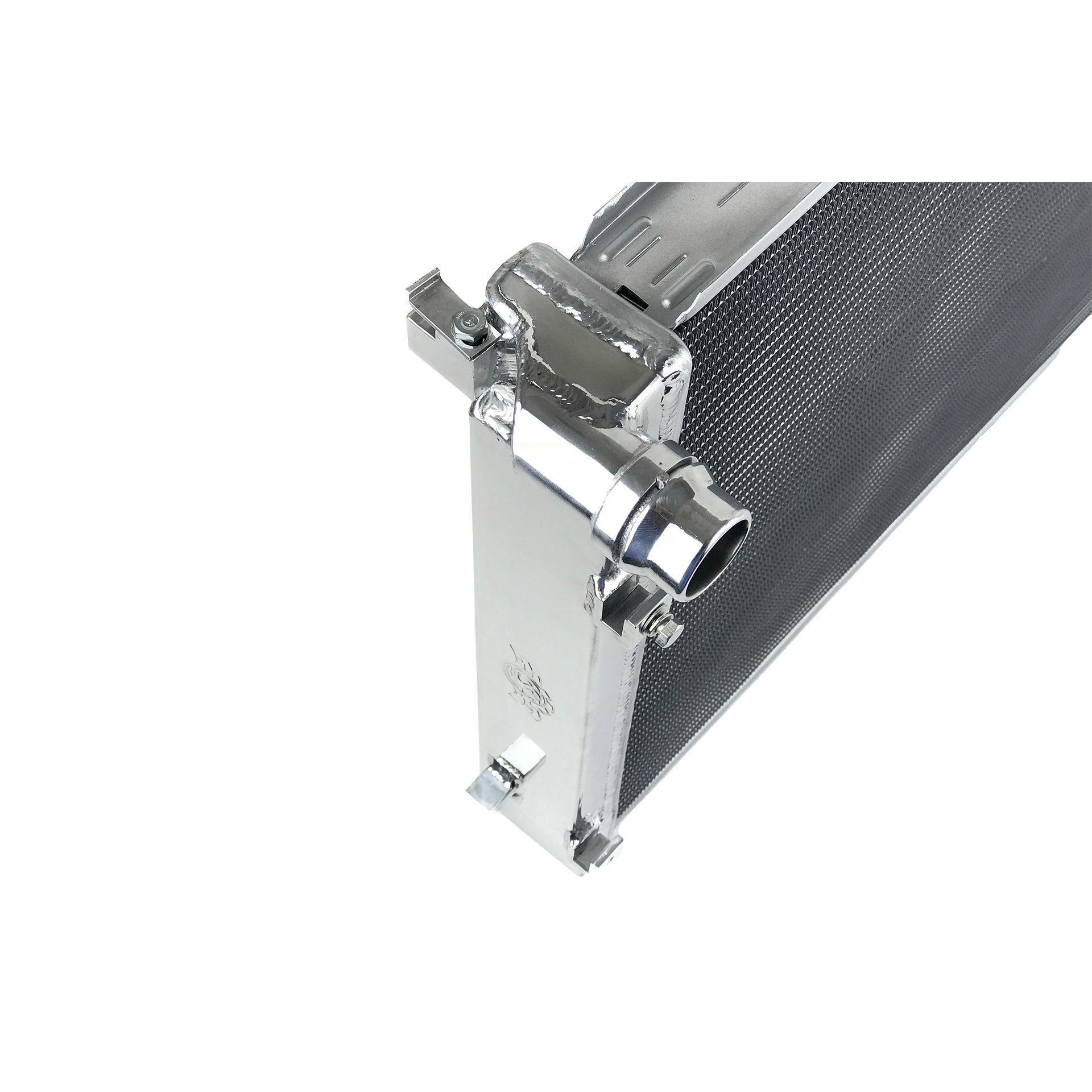

Audi / VW MQB Triple-pass High-Performance All-Aluminum Radiator

The CSF Audi/VW radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Fitment Note: The CSF #7084 will not fit with some aftermarket intercoolers. Intercoolers with cores thicker than 60mm will not fit due to the thicker CSF radiator core (42mm vs 26mm). The CSF #7084 is confirmed to work with AMS, APR, and 034 Motorsport.

Additional Attributes:

GTIN: 00710353070840
Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 25.5625 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.625 in.
Core Width: 17.3125 in.
Down Flow Or Cross Flow Type: Cross Flow
Finish/Color: Satin
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Quick Connect
Inlet Diameter: 1.25 in.
Inlet Location: Top Left
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Quick Connect
Outlet Diameter: 1.25 in.
Outlet Location: Bottom Right
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 32 x 7 x 22 inches
Weight: 20 PG
