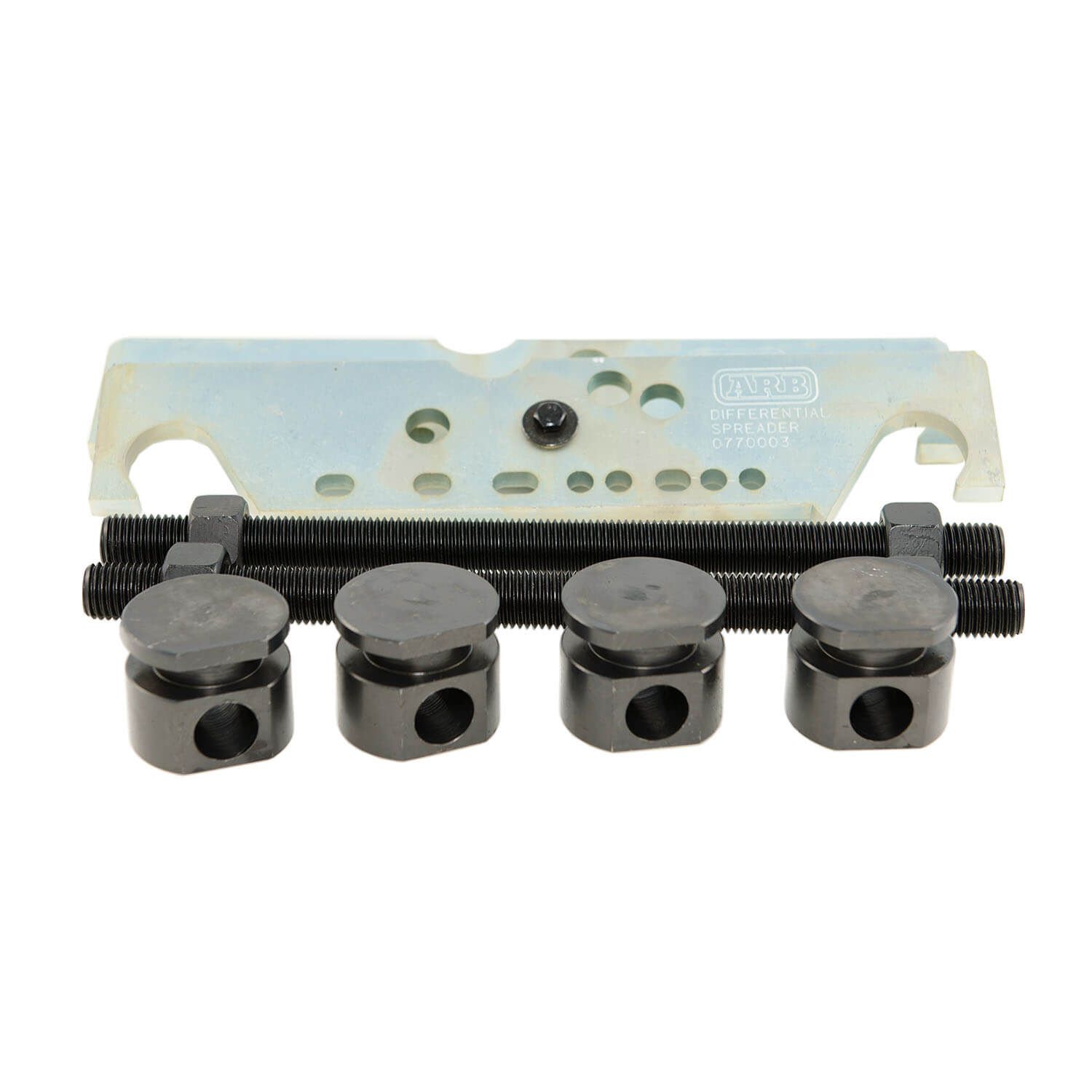

ARB – 0770003 – Air Locker Differential Case Spreader

ARBs Air Locker Differential Spreader is a professional automotive tool that no differential installer should be without. Most common Salisbury style axle assemblies (e.g., Dana Spicer model 44) require the use of a differential spreader in order to achieve the required carrier bearing pre-load during set-up. Stretching the housing casting (or pumpkin) open by sufficient enough force as to allow extra shim to be added to create the pre-load is the method that the OEM manufactures endorse, and most manufacture's have included special spreader sockets in the housing for exactly this purpose. Insufficient pre-load can result in bearing failure, or ring and pinion failure on any differential, and possible oil/air leakage issues in an Air Locker Differential. As a part of ARBs Air Locker Tools range of differential service/installation equipment, this specialty tool offers an easy, quick and highly effective way of pre-loading these axles.

Additional Attributes:

GTIN: 09332018010193
Add-On: N/A
Prop 65 Yes/No: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 18 x 10 x 9 inches
Weight: 31 PG

PDF:

0770003_Differential Housing Spreader
