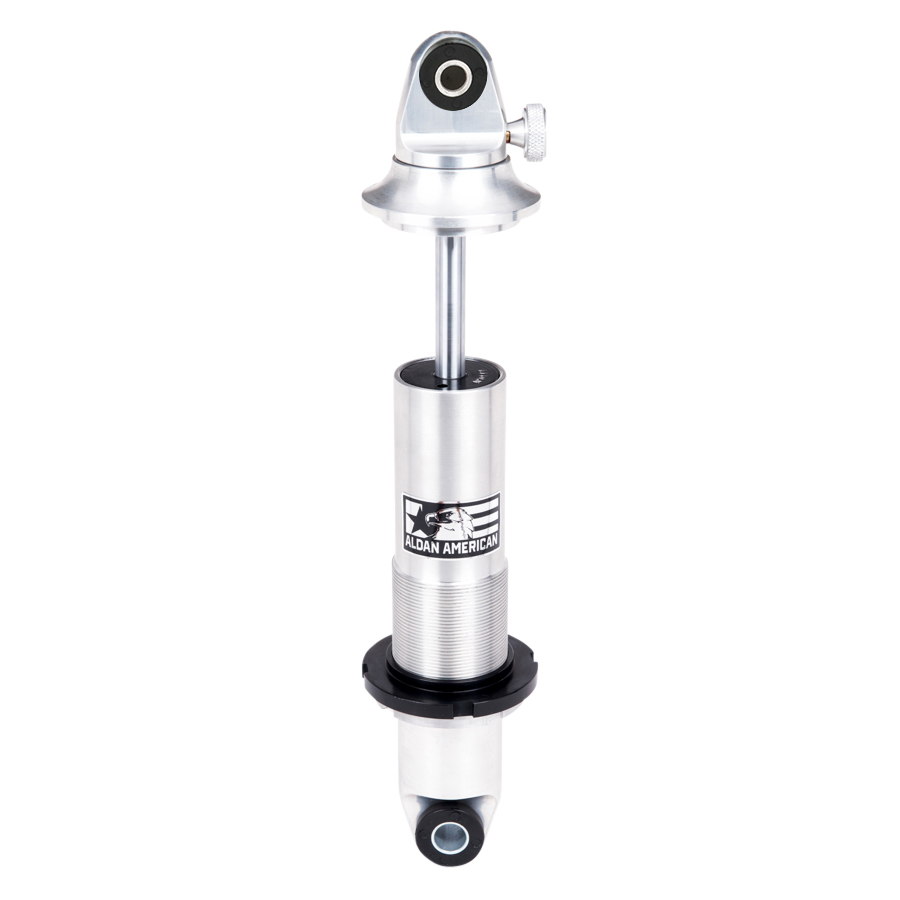

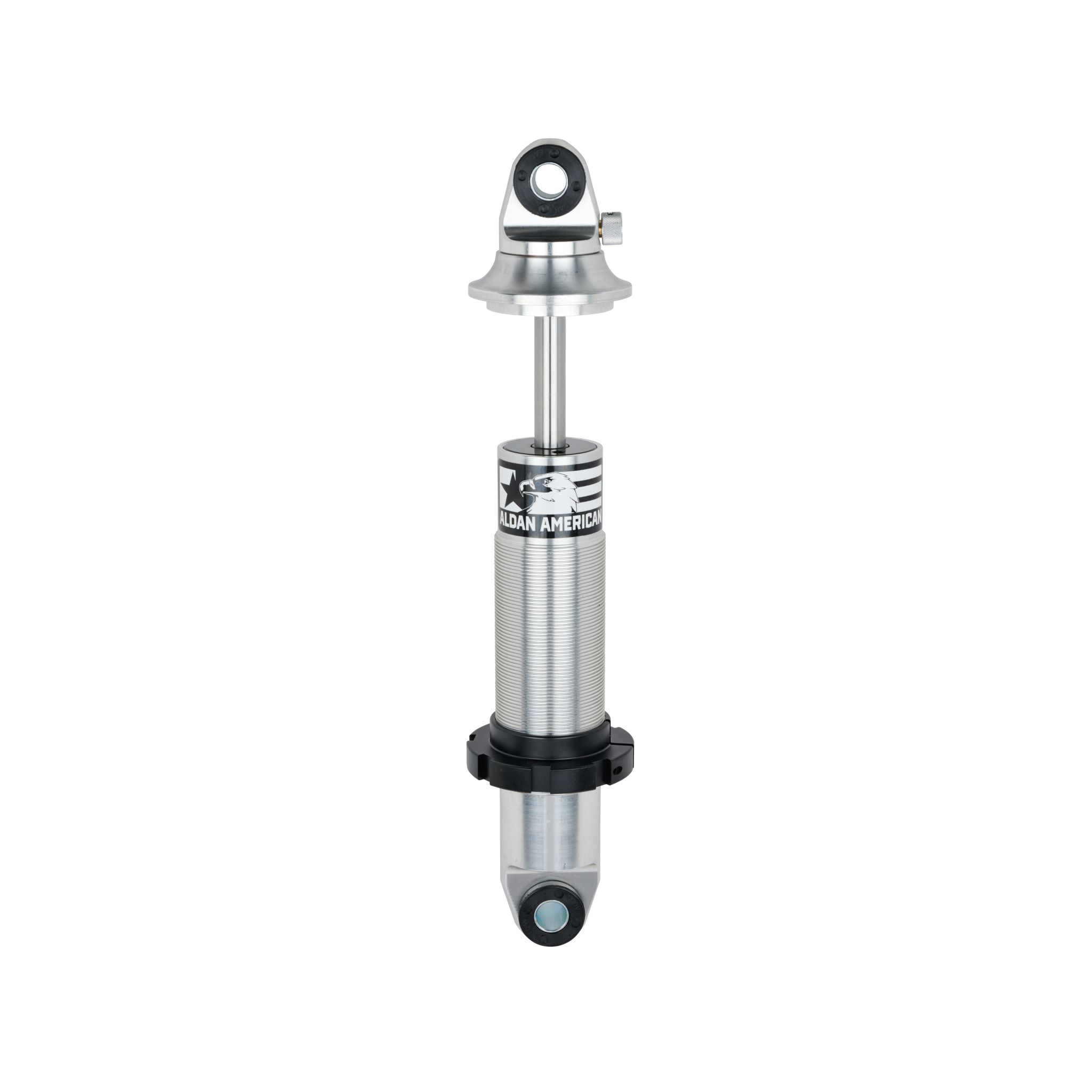

Aldan American Coil-Over Shock, Phantom, Single Adj. 15.00 in. Extended, 11.30 in. Compressed

Additional Attributes:

GTIN: 00602003022852
Adjustable Mounting Bracket Included: No
Adjustable: Yes
Body Diameter: 2
Bushing Color: Black
Bushing Material: Polyurethane
Coil Over Springs Included: No
Coilover Application: Front/Rear
Compressed Length: 11.3
Extended Length: 15
Gas Charged: Yes
Hardware Included: Yes
Internal Design: Twin-tube
Mounting: Bushing
Number of Valving Selections: 11
Product Line: Aldan American Phantom Series Coilover Shocks
Rebound/Compression/Preset: Rebound
Recommended Spring Diameter: 2.5
Recommended Spring Length: 10
Ride Height: 13.5-14
Shock Body Finish: Billet
Shock Body Material: Aluminum
Shock Type: Single-adjustable

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 22.5 x 8.75 x 4 inches
Weight: 5 PG

PDF:

X-0016, ALDAN-Shock-Install-Guide-FINAL
