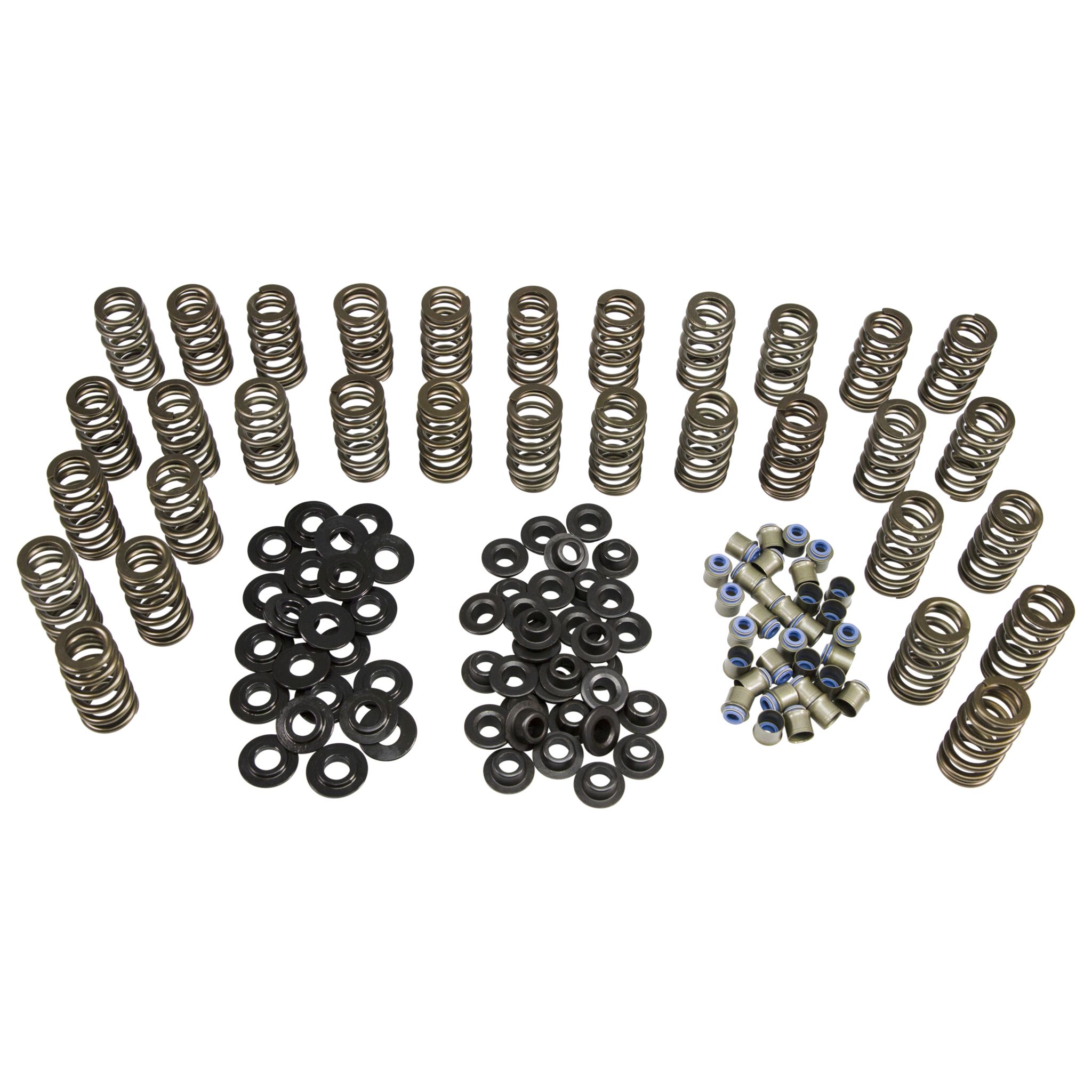

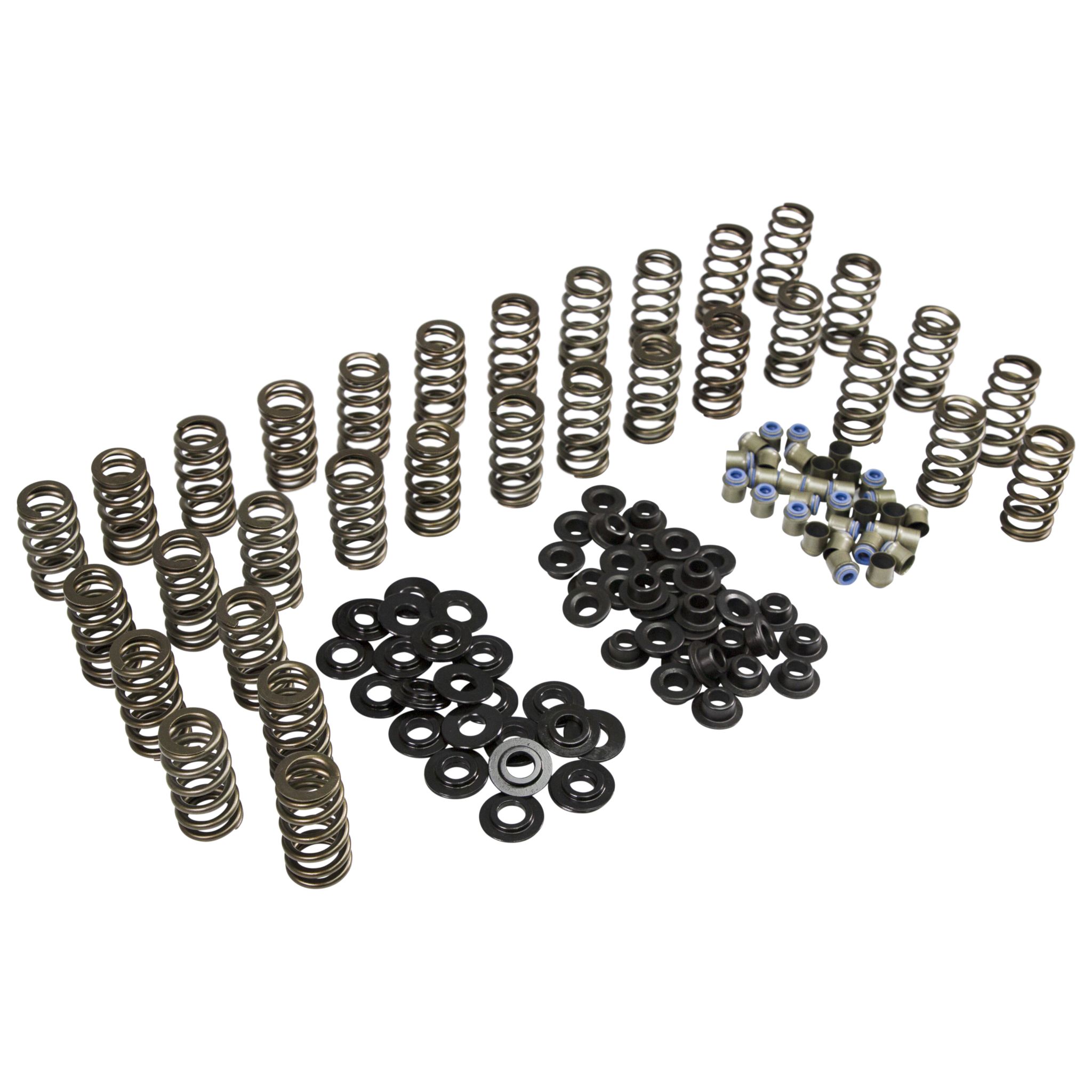

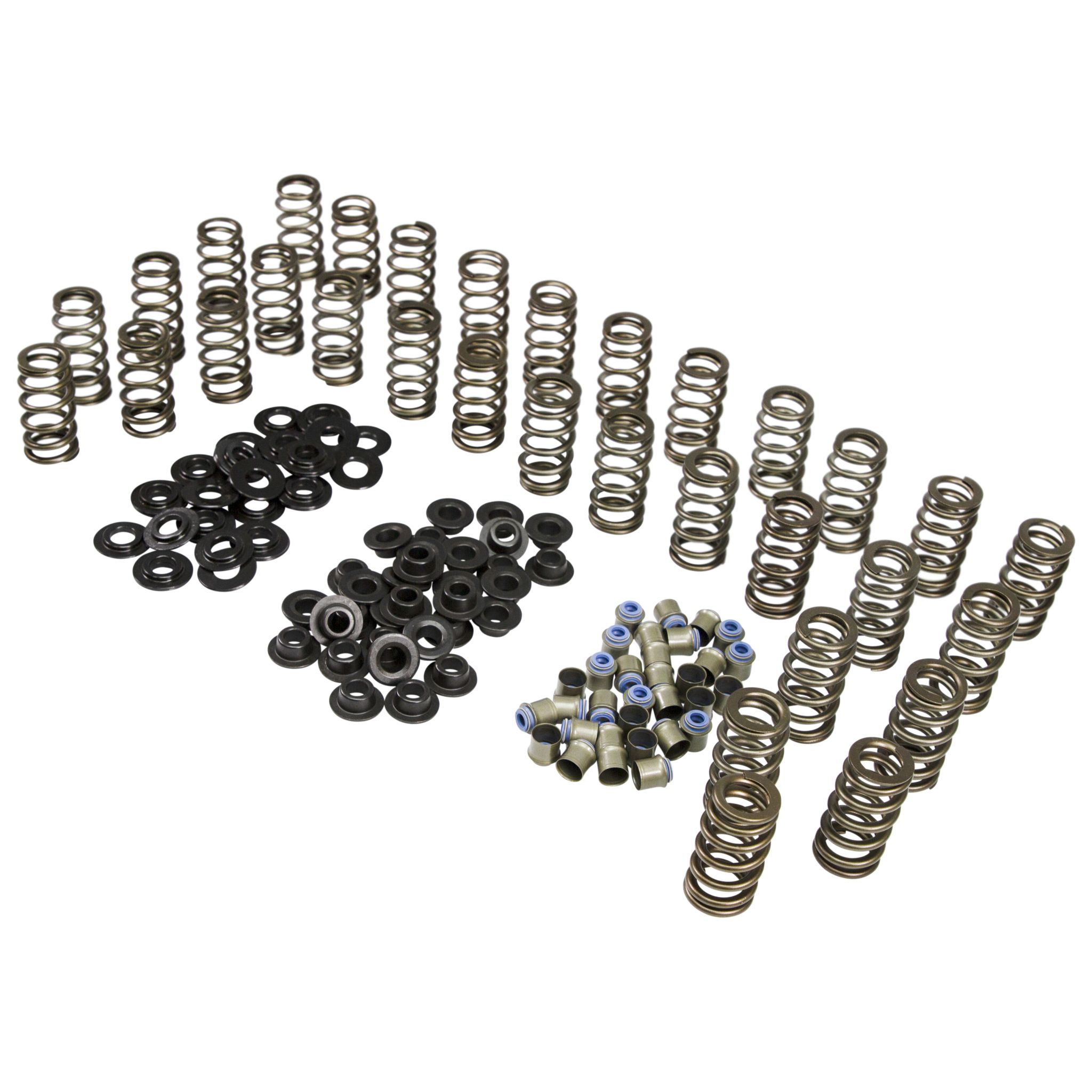

.585″ Lift Beehive Spring Kit for ’06-’16 GM 6.6L Duramax Diesel

ensuring valve train stability at elevated RPM and boost pressures.

Additional Attributes:

GTIN: 00036584408468
Big End Outside Diameter: 1.101
Camshaft Type: Solid Roller
Coil Bind Height: 0.97
Damper: No
Free Length: 2.108
ID Big End: 0.738
ID Small End: 0.65
Included Seats: 4688-32
Includes Retainers?: Yes
Includes Seats?: Yes
Includes Shims?: No
Inside Diameter: 0.650/0.738
Installed Height: 1.585
Installed Pressure: 130
Machine Work Required?: No
Max Lift: 0.585
Number of Springs: 1
Open Height: 1.1
Open Pressure: 259
Retainer Material: 4140 Chromemoly Steel
Seat Pressure: 130
Small End Outside Diameter: 1.013
Spring Rate: 258
Spring Seat Type: Steel
Spring Style: Beehive
Spring Type: Beehive
Valve Spring Series: Diesel

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 14.8 x 8.9 x 5.8 inches
Weight: 5.9 PG
