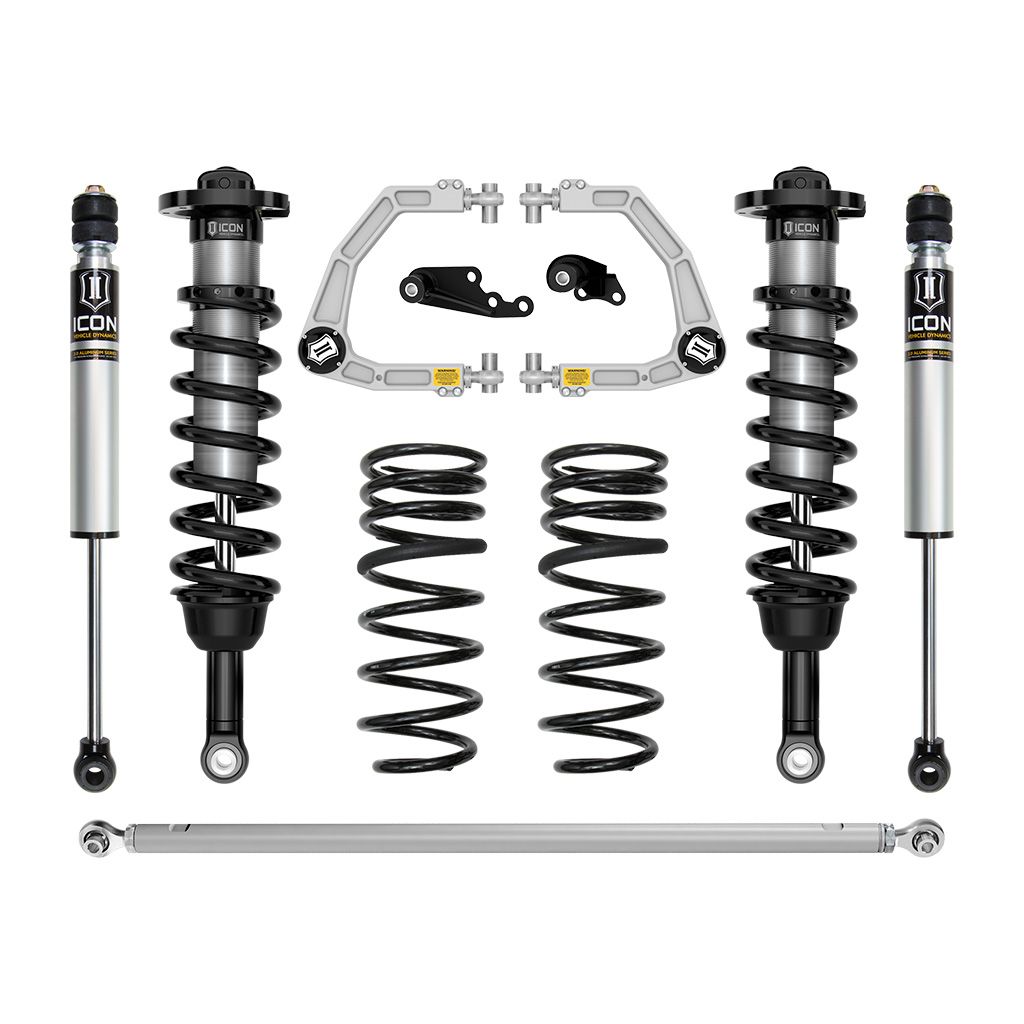

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the GX550 with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Lexus GX550 Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Additional Attributes:

GTIN: 00840103430874
Maximum Lift Height Front: 3
Maximum Lift Height Rear: 2
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 3
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
Active or Passive Suspension: Passive
Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Compression: No
Adjustable Control Arm: Yes
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Front Reservoir Style: Internal
Front Shock Body Diameter: 2.5
Maximum Lift Front: 3
Maximum Lift Rear: 2
Minimum Lift Front: 1.25
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 34″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: 17×8.5 with 6.32” Backspace / 40mm Offset
Reservoir Style: Internal

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 31.0000 x 13.0000 x 7.0000 inches
Weight: 166.0000 PG
