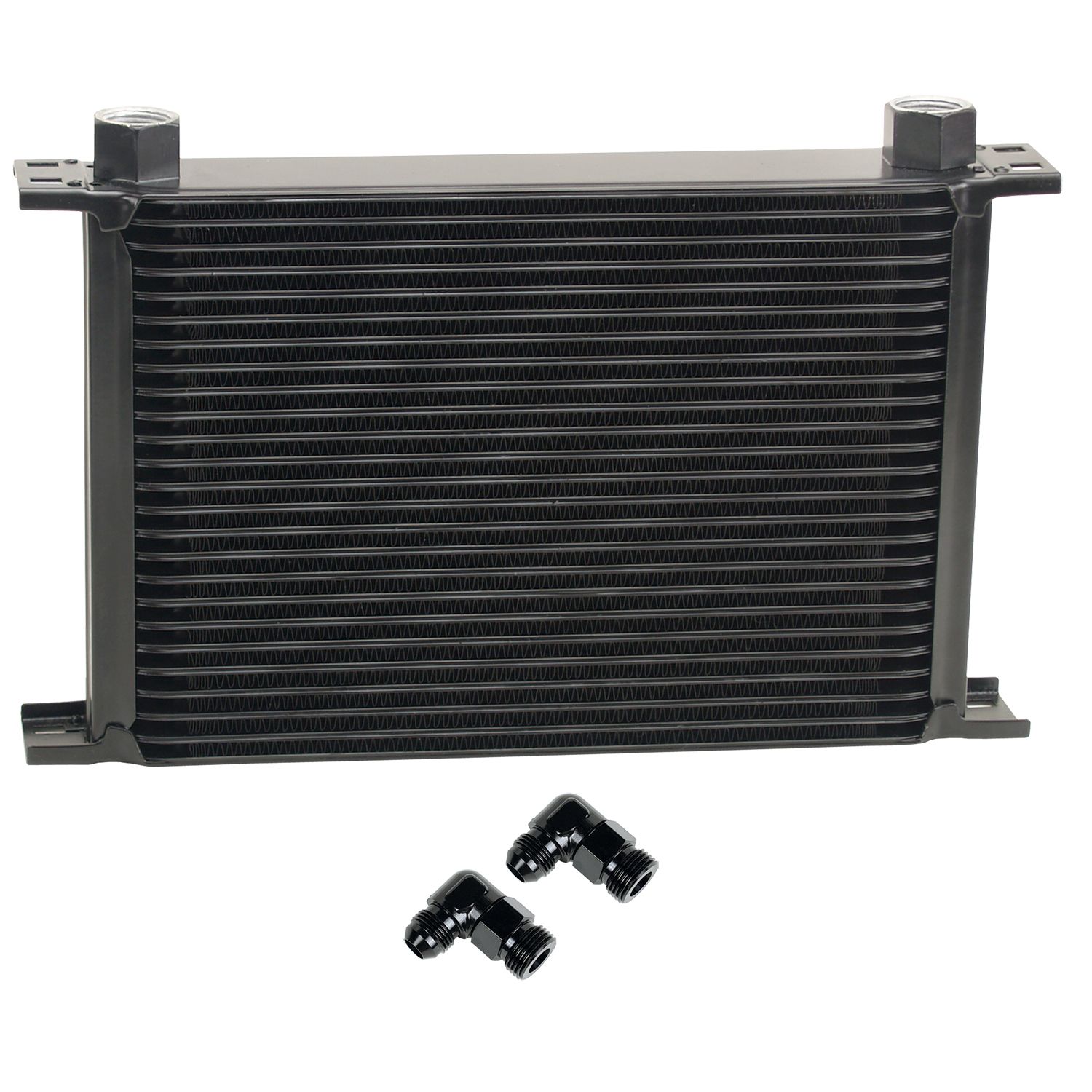

25 Row Series 10000 Stack Plate Fluid Cooler, 90 degree swivel -8AN

Our most efficient heat exchanger, the all aluminum 25 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes bright aluminum anodized finished 90 degree swivel -8AN male adapter fittings.

Additional Attributes:

GTIN: 00083277525889
BTU’s Per Hour: 46000
Color: Black
Cooler style: Stacked Plate
Depth: 2
Height: 9-5/16
Inlet dim: 10
Inlet size: 10AN o-ring female x -10AN male
Material: Aluminum
Mounting: 12-1/4 x 7-5/8
Prop 65: Yes
Width: 13

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 18.625 x 13 x 2.125 inches
Weight: 4.375 PG

PDF:

Fitting-InstructionSheet
