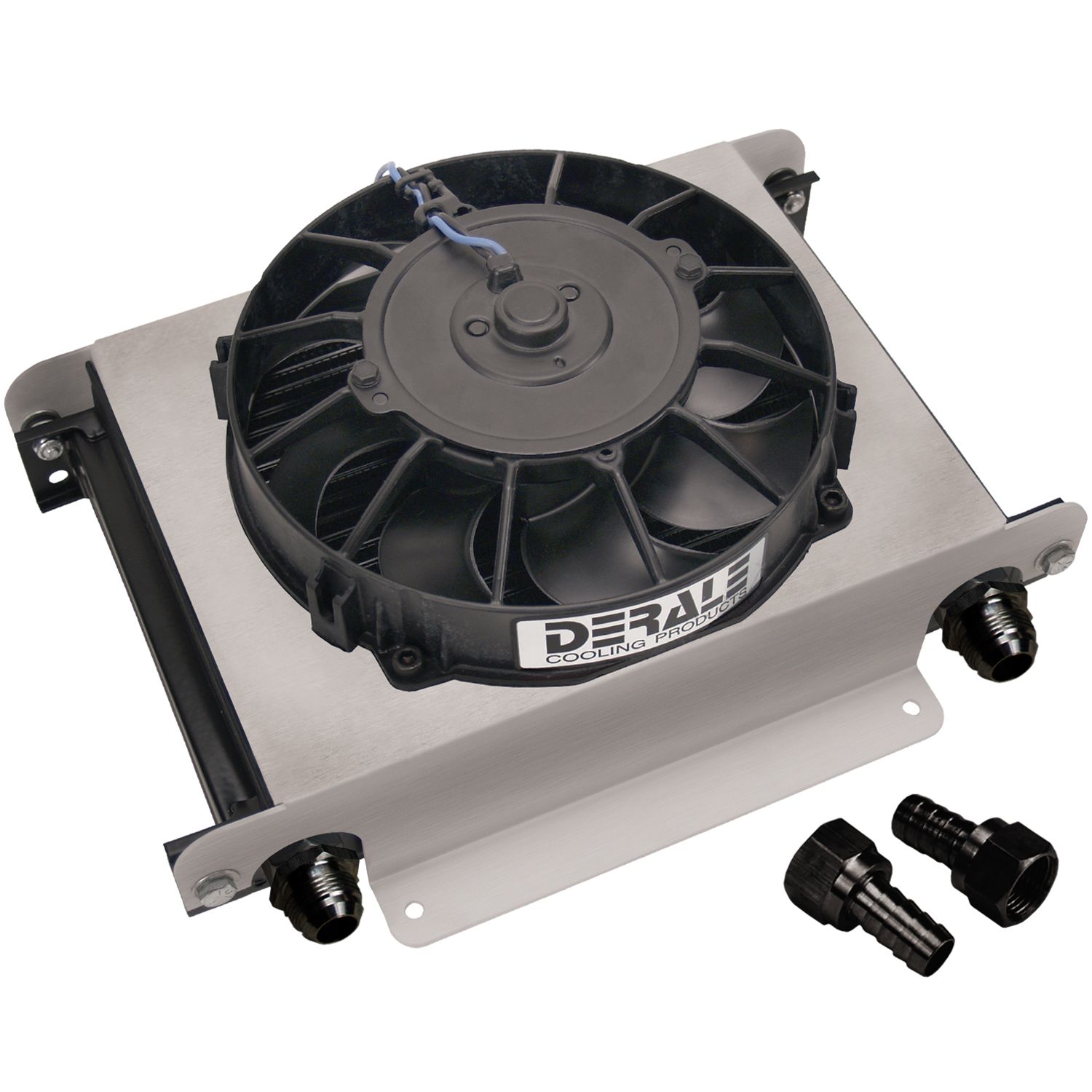

25 Row Hyper-Cool Remote Fluid Cooler, -10AN

Equipped with our top-of-the-line 25-row stack plate cooler, the Hyper-Cool remote fluid cooler can literally be mounted almost anywhere, making it a popular addition for serious performance cars, hot rods, muscle cars and trucks. With an all-aluminum, oven-brazed Stack Plate cooler coupled with a Tornado fan and aluminum shroud, it comes with aluminum -10AN male fittings and -10AN x 1/2" barb adapters to provide serious cooling in a small package. This cooler was designed primarily for engine oil applications, but also can be used for heavy-duty transmission or fuel cooling. The Hyper-Cool is perfect for extreme duty applications.

Additional Attributes:

GTIN: 00083277158650
Amp draw: 4.8
Barb size: 1/2
BTU’s Per Hour: 46000
CFM: 500
Color: Black
Cooler style: Stacked Plate
Depth: 5-5/8
Fan size: 8
Height: 10
Inlet dim: 10
Inlet size: -10AN o-ring female (7/8″-14) x -10AN male
Mounting: 7-1/2 x 9
Prop 65: Yes
Width: 13

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 12 x 17.5 x 6.625 inches
Weight: 6.4375 PG
