23-25 SEQUOIA 3-4.25" STAGE 4 3.0 SUSPENSION SYSTEM TUBULAR
23-25 SEQUOIA 3-4.25" STAGE 4 3.0 SUSPENSION SYSTEM TUBULAR

23-25 SEQUOIA 3-4.25″ STAGE 4 3.0 SUSPENSION SYSTEM TUBULAR

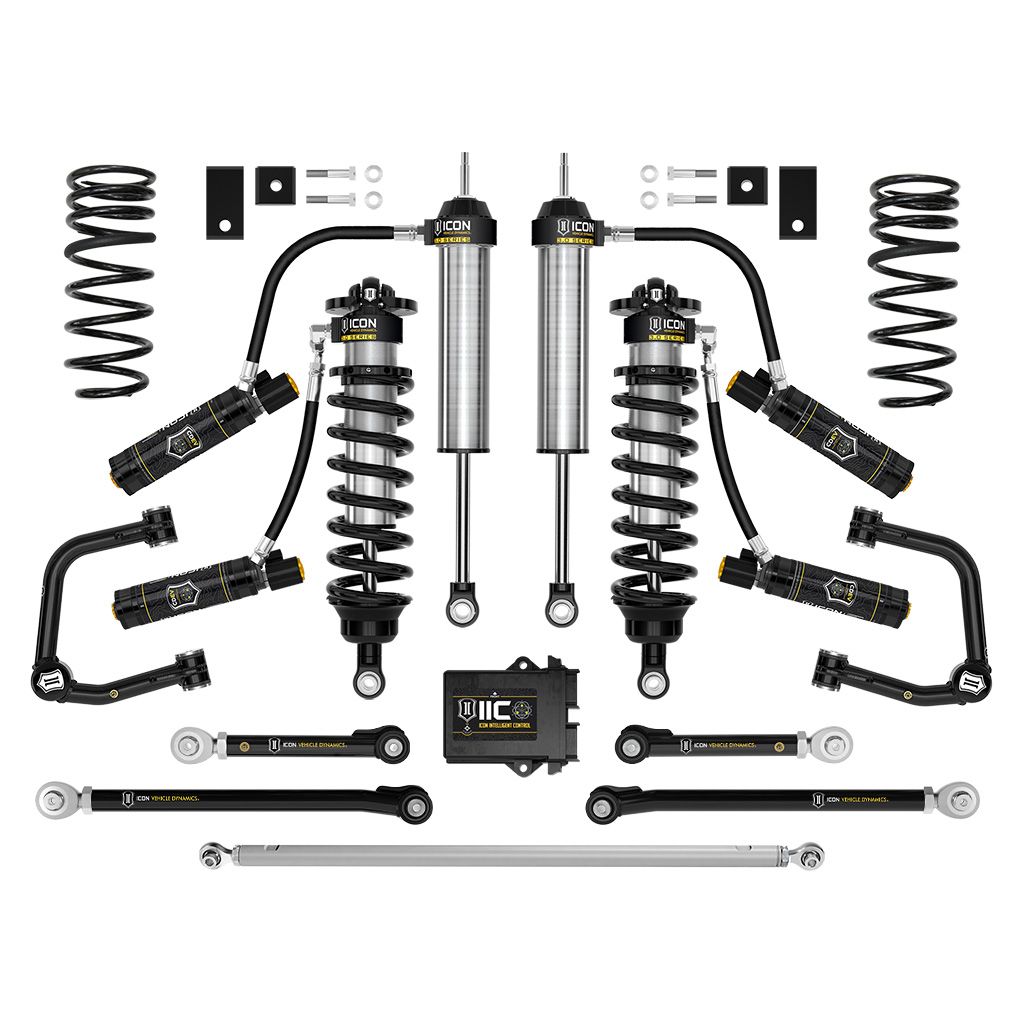

Stage 4 includes 3.0 Series CDEV coilovers for 3-4.25” of front lift, greater performance, and 35” tire fitment. UCAs, rear links/track bar provide alignment correction and rear coils with 3.0 Series CDEV rear shocks balance the tuning.

  • Vehicle specific design for 2023-2025 Toyota Sequoia
  • Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
  • Dual rate rear coil springs improve performance and ride quality while providing 0″ or 2″ of rear lift, depending on the vehicle’s stock suspension package
  • On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
  • 3.0 Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • 3.0 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • Adjustable front ride heights from 3-4.25” of front lift over stock
  • ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

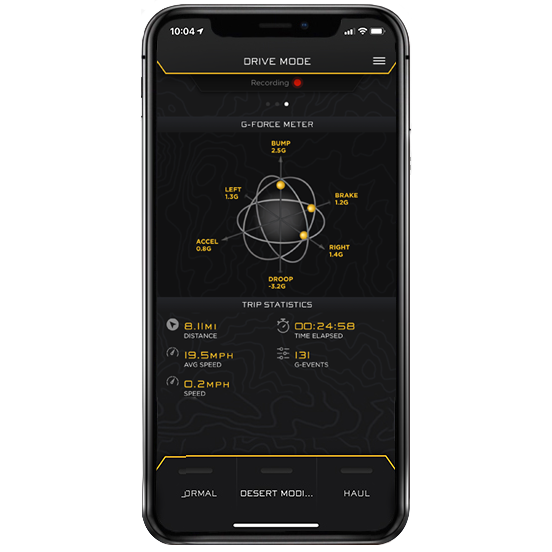

  • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for full wheel travel without overstressing OE components
SKU FRDK-K53254T Category

Le prix initial était : $ 16,024.73.Le prix actuel est : $ 15,261.65.

Rounding out the Stage 4 suspension system are 3.0 Series rear remote reservoir shocks specially tailored for the 2023-2025 Sequoia. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks, offering outstanding performance off-road and a smooth ride on the street. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks, plus their remote reservoirs, offer even greater heat dissipation and resistance to shock fade under hard use. Also equipped with CDE Valves, these offer active, on the fly compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDEV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

Additional Attributes:

GTIN: 00840103422183
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 4.25
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 191013 – NIPPLE GREASING ADAPTER KIT
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Electronic
Front Reservoir Style: Remote
Front Shock Body Diameter: 3
Maximum Lift Front: 4.25
Maximum Lift Rear: 2
Minimum Lift Front: 3
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 3
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
Reservoir Style: Remote

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 33.0000 x 15.0000 x 10.0000 inches
Weight: 247.0000 PG

PDF:

Information complémentaire

Poids112.04 kg
Dimensions33.0000 × 15.0000 × 10.0000 cm
