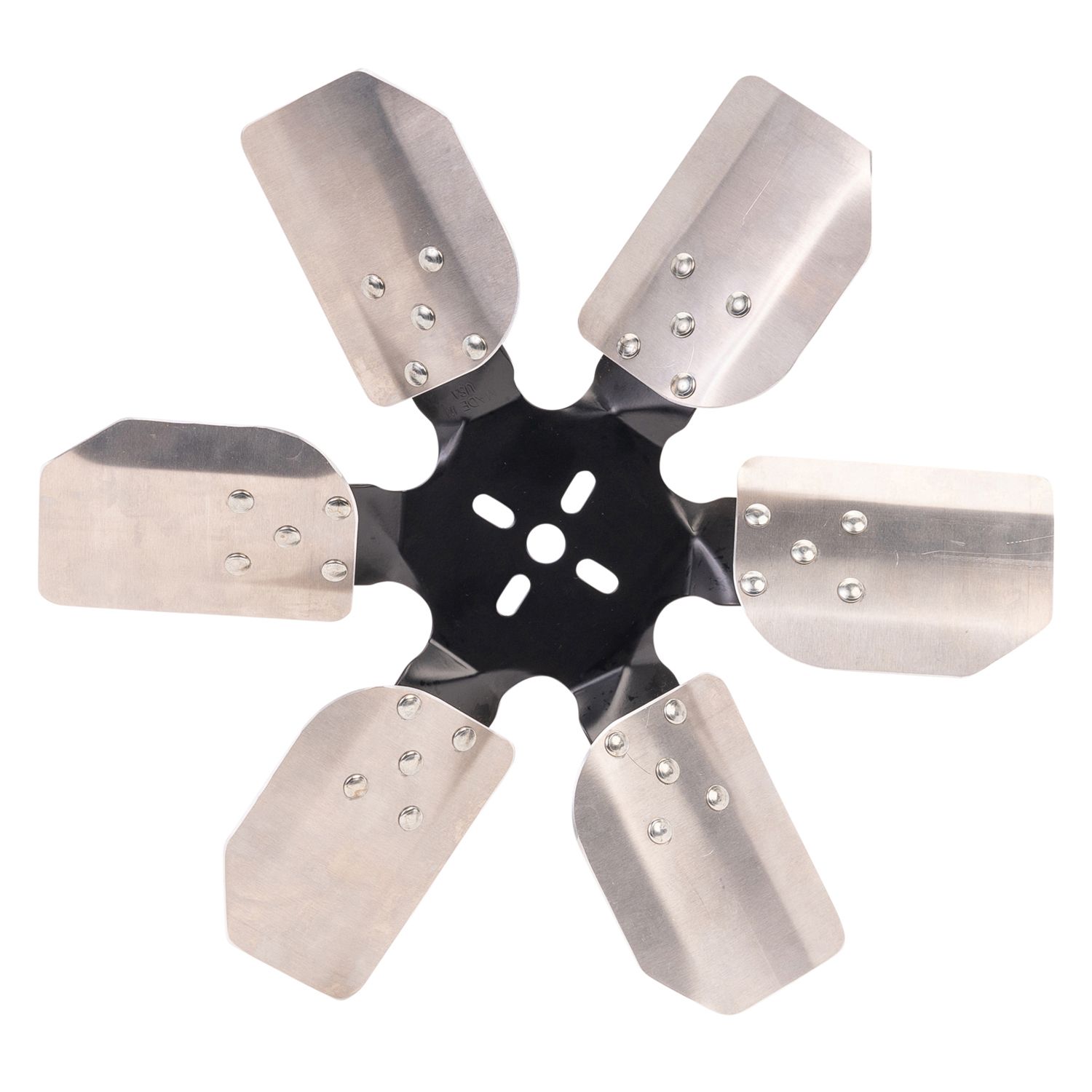

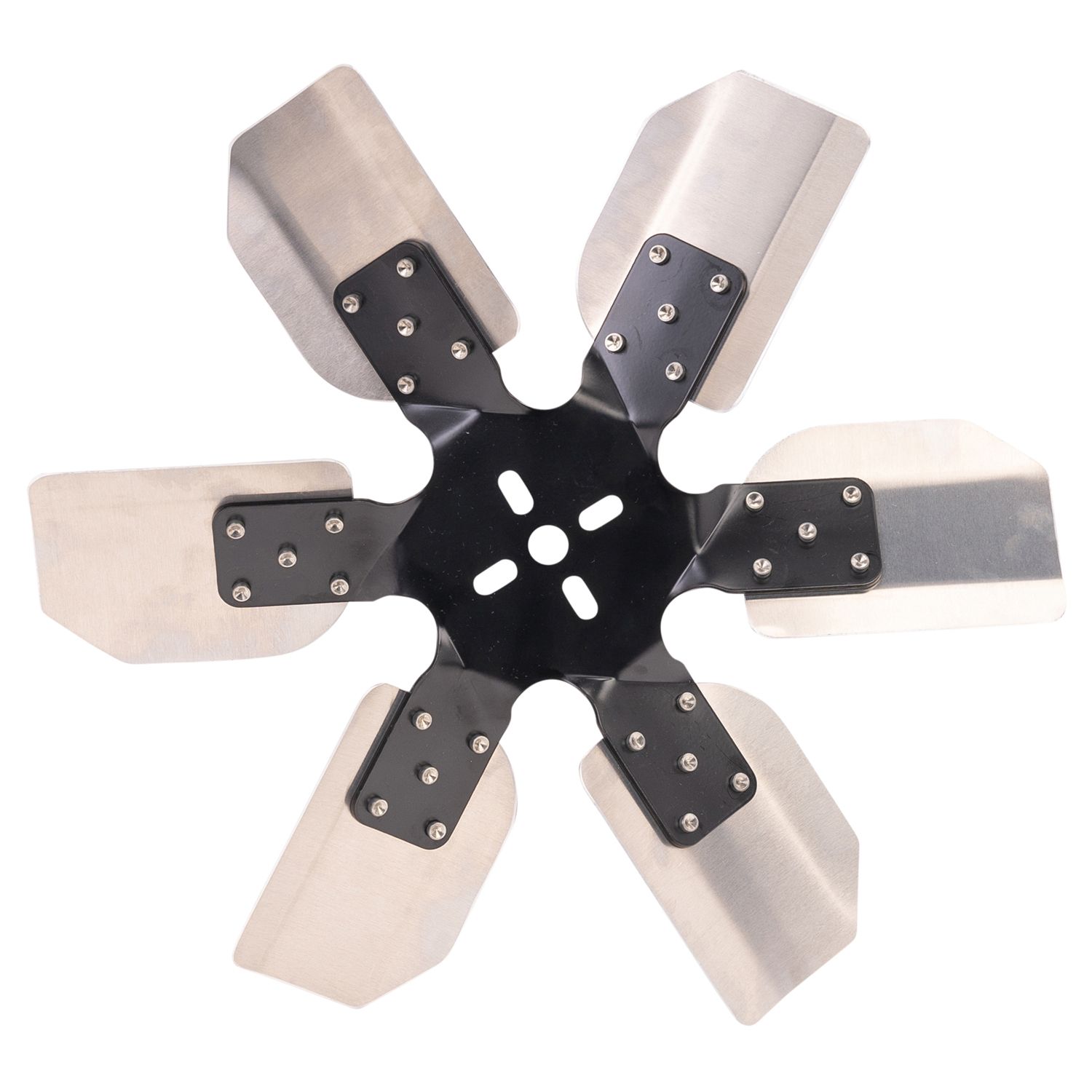

17″ Standard Rotation Rigid Race Fan, Aluminum Blade

Providing maximum full time airflow across the rpm range, this standard rotation 17" rigid race fan features a sturdy black powder coated steel hub, 6 aluminum fan blades and is rated up to 8,000 rpm.

Additional Attributes:

GTIN: 00083277175176
Blade material: Aluminum
Blade pitch: 28°
Color: Black
Depth: 2-5/16
Diameter: 17
Flange bolt spacing: 1-3/4-2-1/4
Hub material: Powder coated black steel
Mounting surface to front: 1-9/16
Mounting surface to rear: 3/4
Prop 65: Yes
Rotation: Standard (clockwise)

Extended Information:

Emissions : 4
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 21.375 x 18.25 x 2.75 inches
Weight: 3.6875 PG

PDF:

BeltDrivenFans-InstructionSheet – for all Part Numbers 1
