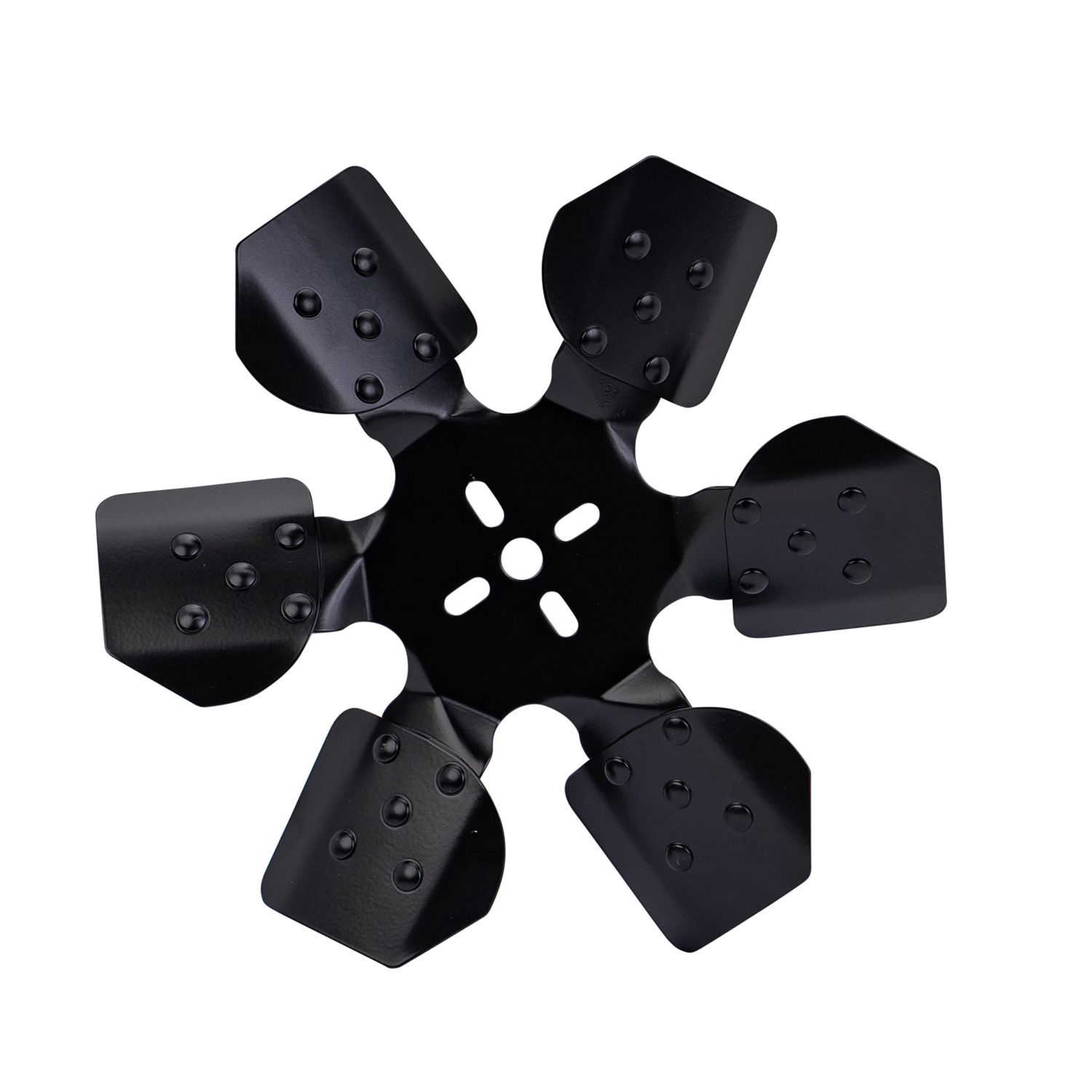

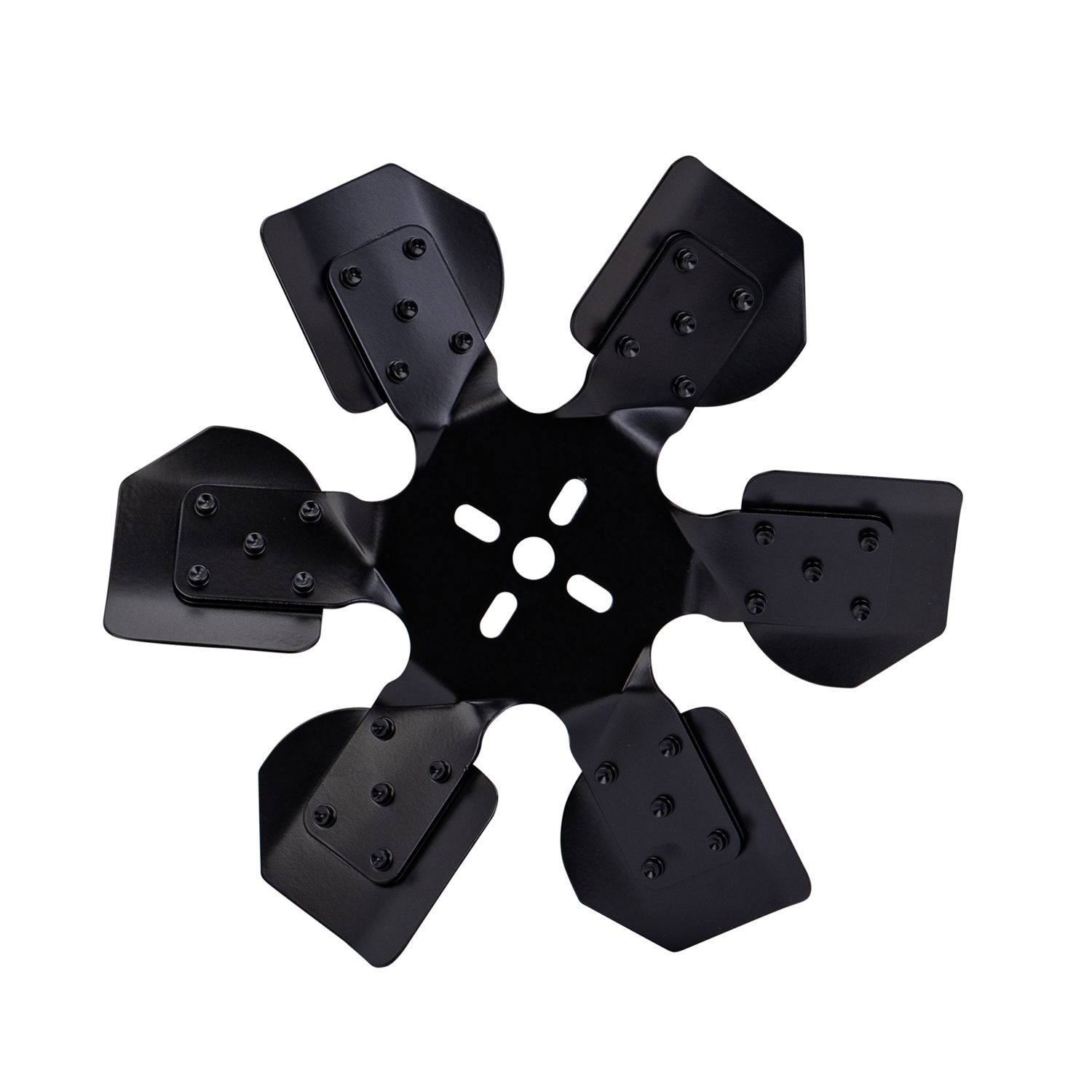

13″ Reverse Rotation Rigid Race Fan, Steel Blade

Designed to provide maximum full time airflow across the rpm range, this reverse rotation 13" rigid race fan features a steel hub, 6 steel fan blades and is rated up to 8,000 rpm. Comes finished in durable black powder coat.

Additional Attributes:

GTIN: 00083277174131
Blade pitch: 28°
Color: Black
Depth: 2-3/16
Diameter: 13
Flange bolt spacing: 1-3/4-2-1/4
Material: Powder coated black steel
Mounting surface to front: 1-7/16
Mounting surface to rear: 3/4
Prop 65: Yes
Rotation: Reverse (counter clockwise)

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available Only While Supplies Last

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 21.375 x 18.25 x 2.75 inches
Weight: 4.3125 PG

PDF:

BeltDrivenFans-InstructionSheet – for all Part Numbers 1
