Winch

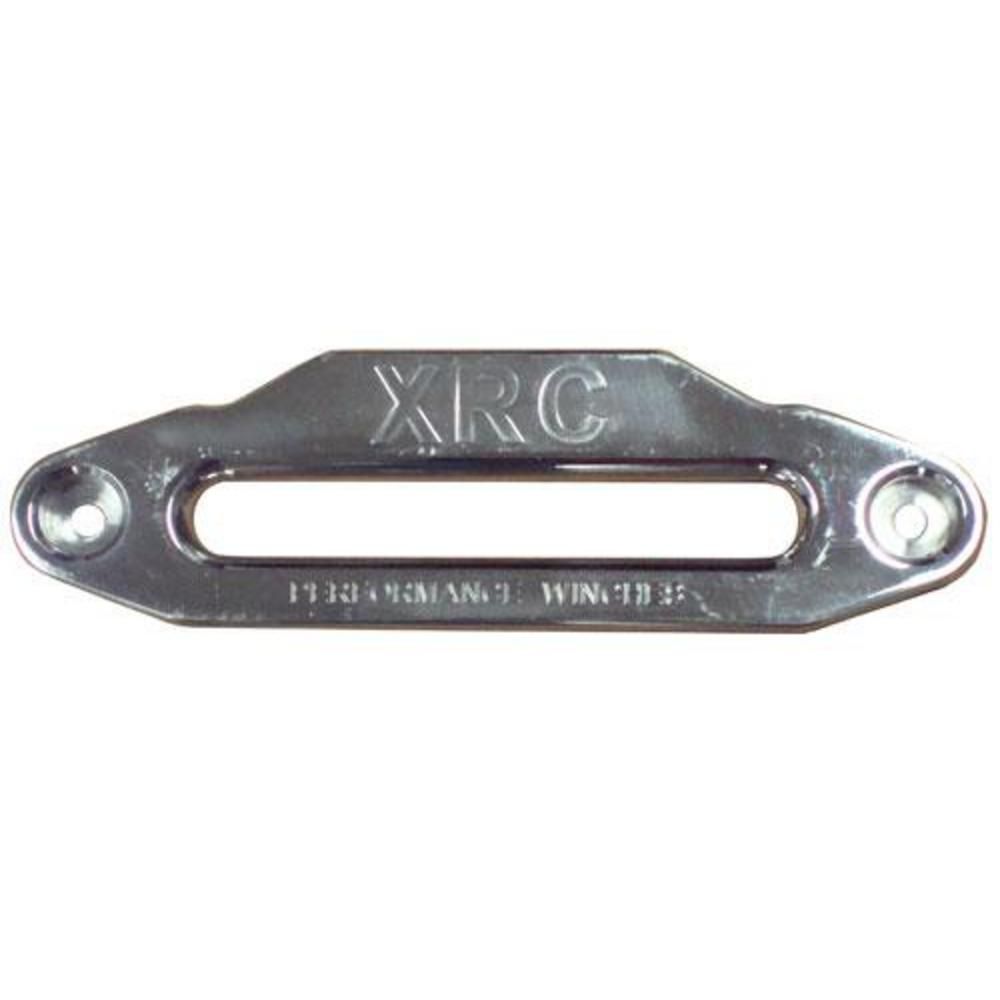

Aluminum Hawse Fairlead - Comp Series - Polished W/ XRC Logo

• For Winches Over 4000 LBS./1814 Kg
• Polished-Aluminum Finish
• XRC Logo
• Standard Drum Designed
• For Synthetic Rope Only

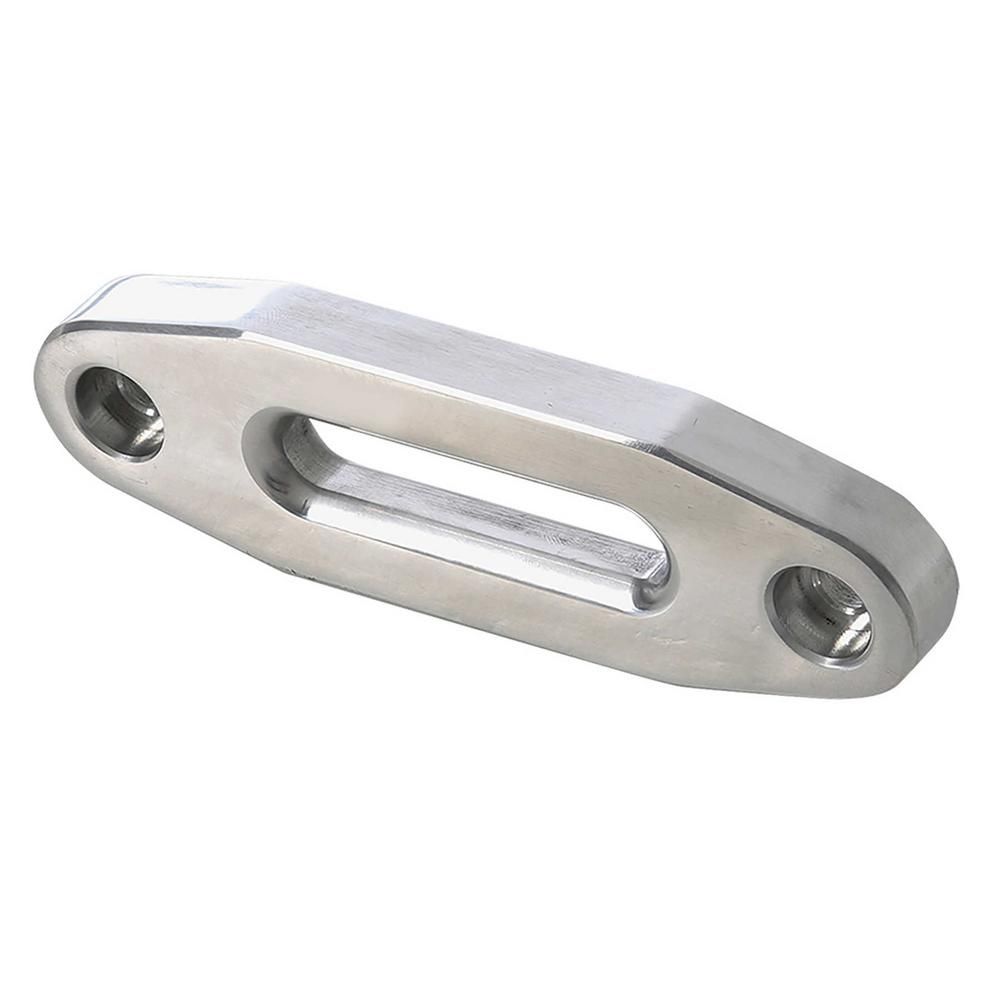

Aluminum Hawse Fairlead - ATV - Polished w/o Logo

• For synthetic ropes only
• Requires a fairlead mount
• Solid billet aluminum
• Includes mounting hardware
• For ATV and UTV winches, up to 5K lbs
• Smittybilt Advantage Warranty

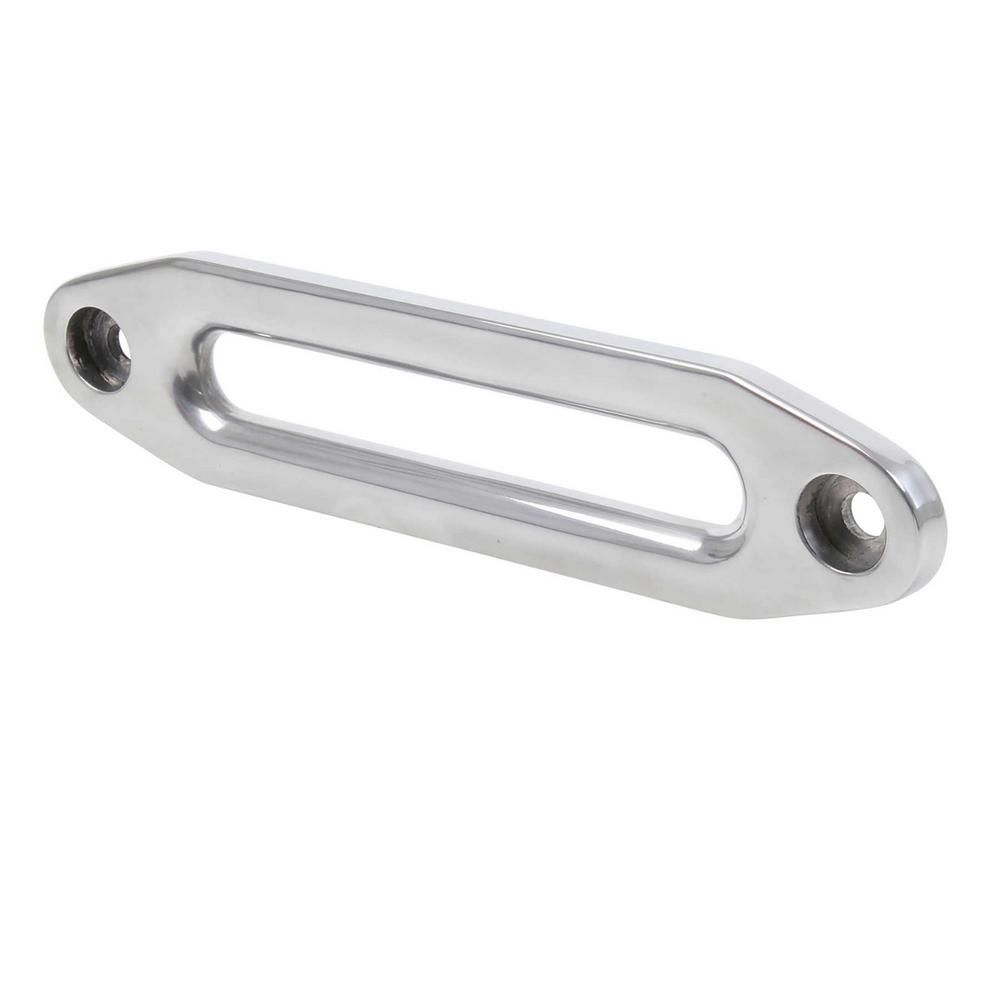

Aluminum Hawse Fairlead - Polished w/o Logo

• Requires a fairlead mount
• For synthetic ropes only
• 10" on center bolt pattern
• Smittybilt Advantage Warranty
• Solid billet aluminum
• Includes mounting hardware
• Works with winches up to 12K lbs

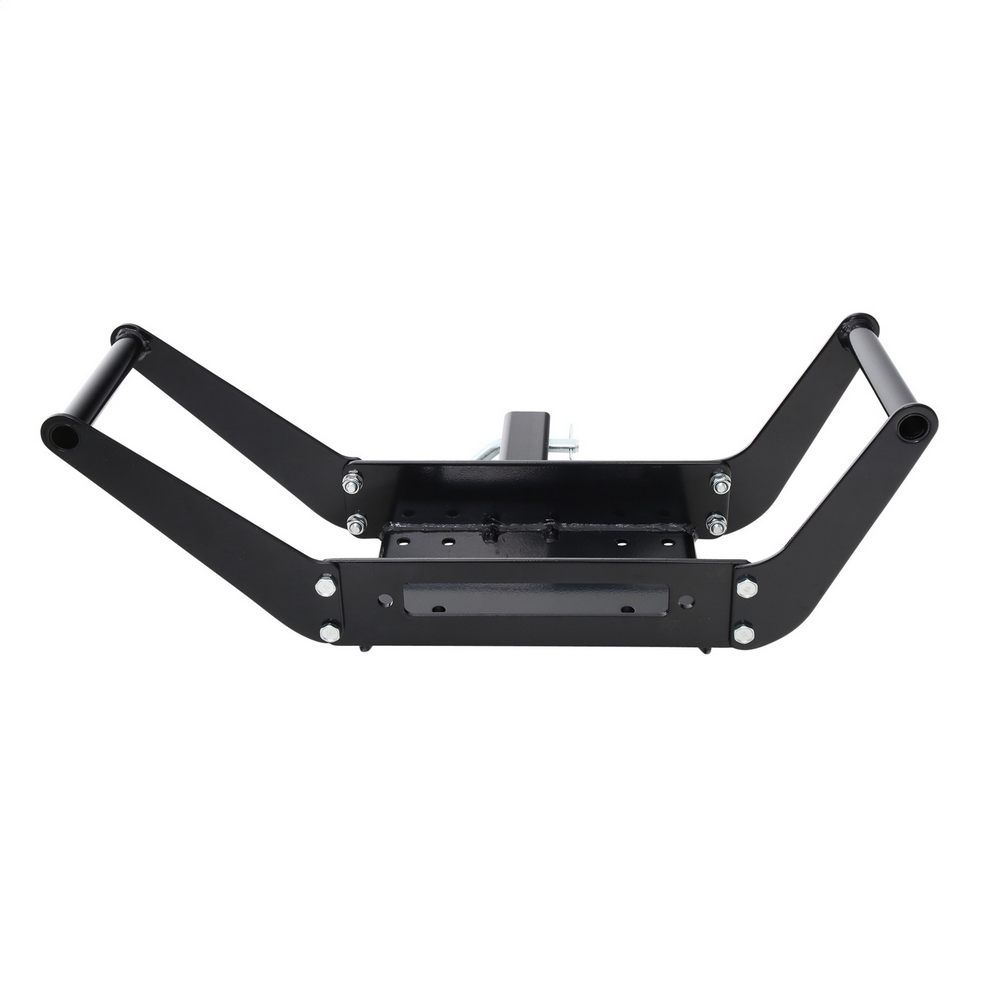

Winch Cradle - 2" Receiver - Fits 8K To 12K Winches

• Will not work with Smittybilt Gen 3 winches with armor installed
• Fits most winches
• Manufactured out of 3/16" and 1/4" cold rolled steel
• Finished in a two-stage gloss black powder coat
• Includes fairlead mount
• Limited Lifetime Structural Warranty / 5 Year Finish Warranty
• Fits most 8K to 12K lb winches
• Fits any standard 2" receiver hitch

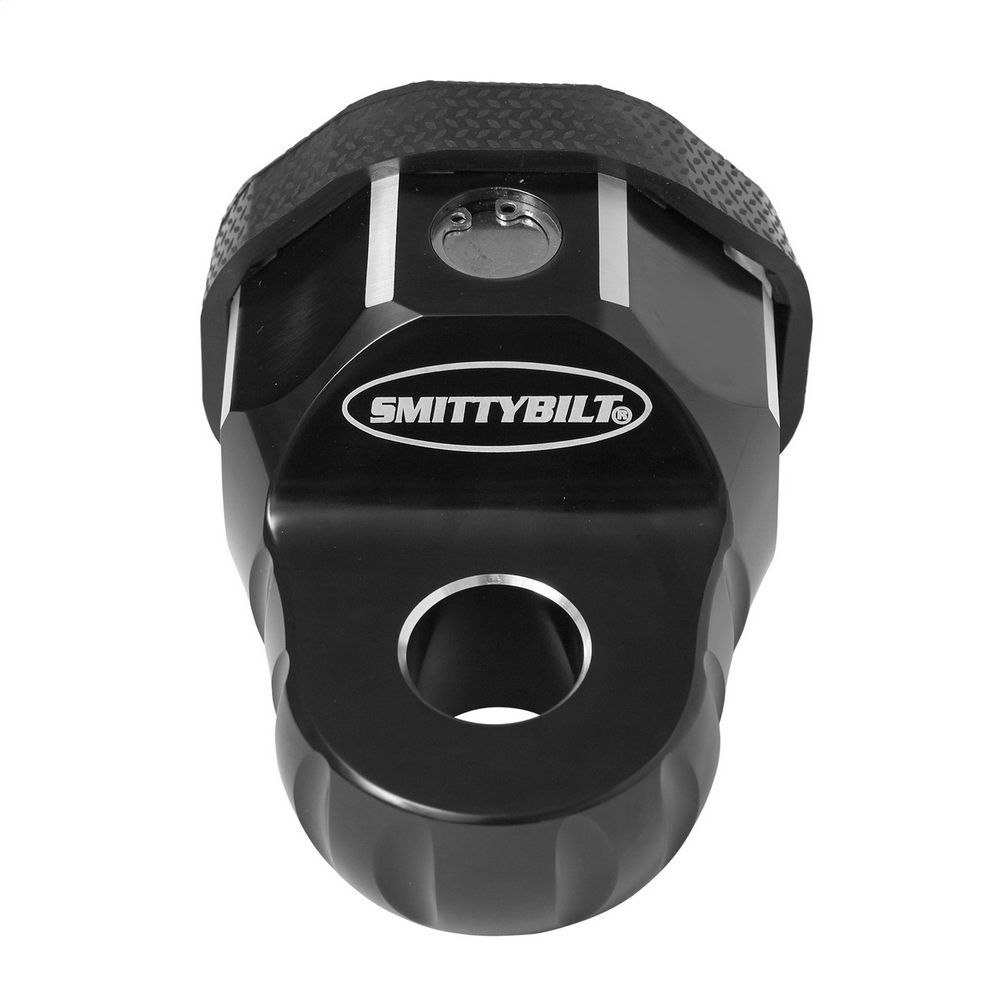

A.W.S. - Aluminum Winch Shackle

• Precision machined from lightweight billet aircraft grade 6061 T-6 aluminum
• Fits synthetic ropes and wire cables up to 1/2" in diameter
• Works with 3/4" & 7/8" D-rings
• Durable long lasting
• Works with roller and aluminum fairleads
• Rugged, black aluminum anodized finish
• Smittybilt Advantage Warranty
• Easy install and removal
• 20K lbs max load rating

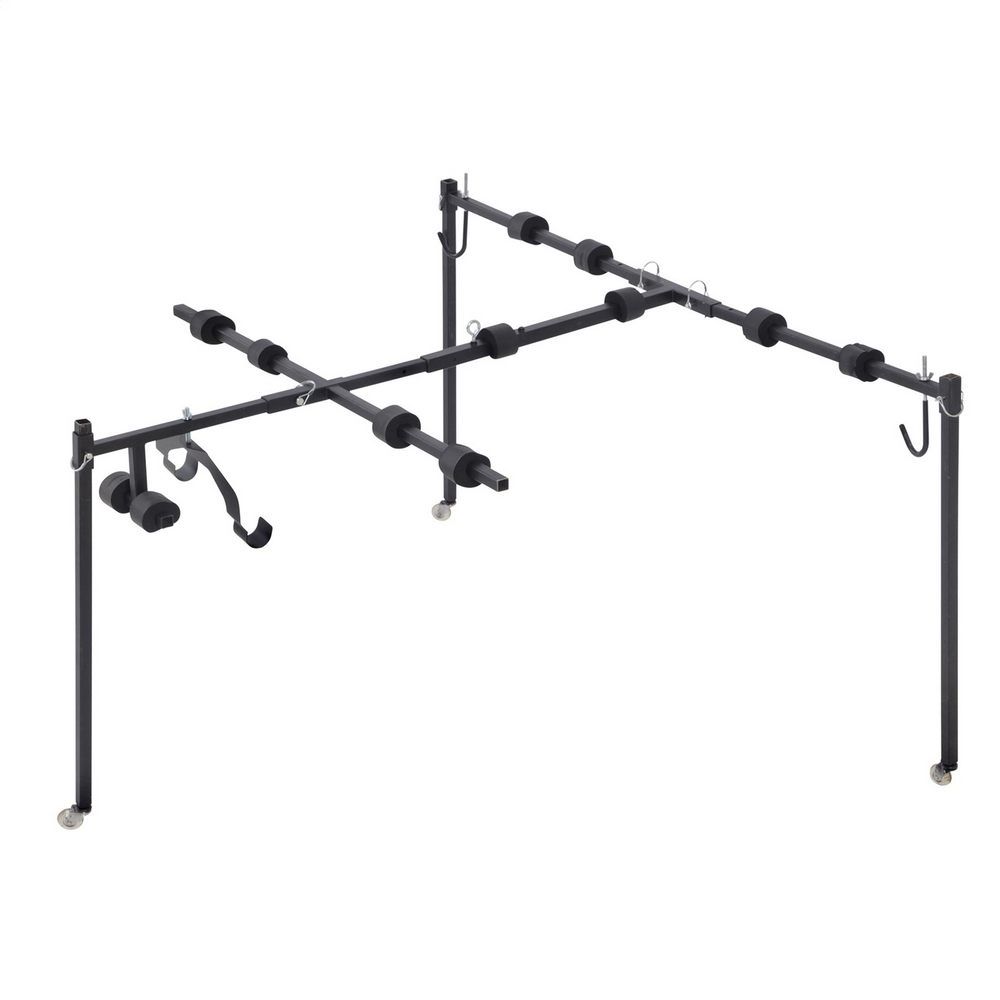

Brackets & Hardware for Hardtop Hoist

• Rear window bracket prevents window distortion
• Does not work with JL or JT Hardtops
• Does not fit 04-06 LJ Wrangler Unlimited models
• Fully adjustable
• Fits 2007-2018 Wrangler JK/JKU, 2 & 4 Door with Freedom Top
• Brackets and Hardware ONLY, motor sold separately (part number: 510001-01)
• 1987-2006 Wrangler TJ/YJ
• Rubber stops, cushioned support rollers, and coated J-hooks prevent scratches
• Exclusive Easy-Glide wheels enable you to move the top around
• Limited Lifetime Structural Warranty / 5 Year Finish Warranty

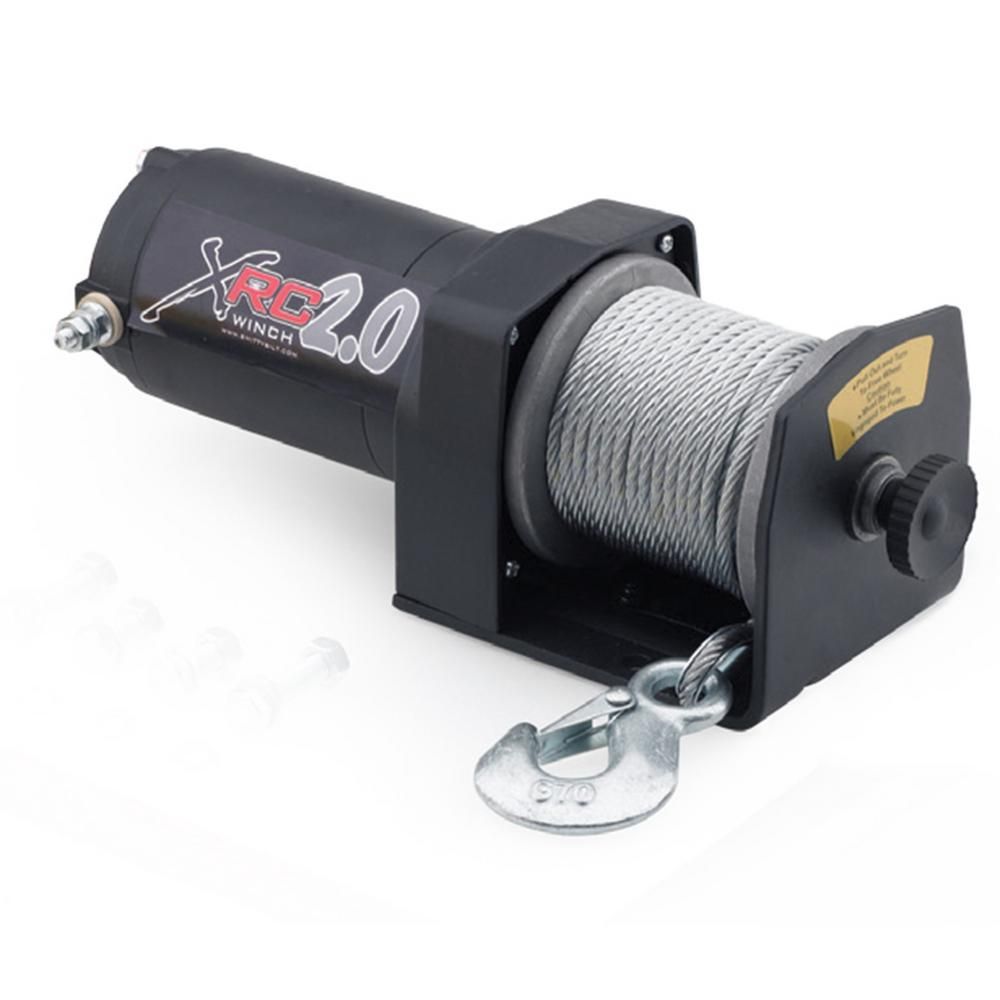

XRC-2 2000lb Winch - Utility/ATV/UTV Winch

• Rated Line Pull: = 2000 LBS
• Winch Type: = Electric
• Voltage: = 12V
• Motor: = 1.0 Hp
• Remote Control: = 11 Ft. Lead
• Gear Ratio: = 153:1
• Size: = 11.25 In. X 4 In. X 4.1 In.
• Weight: = 12 LBS.
• Wire Rope: = 49 Ft. Of 5/32
• Fairlead: = Roller

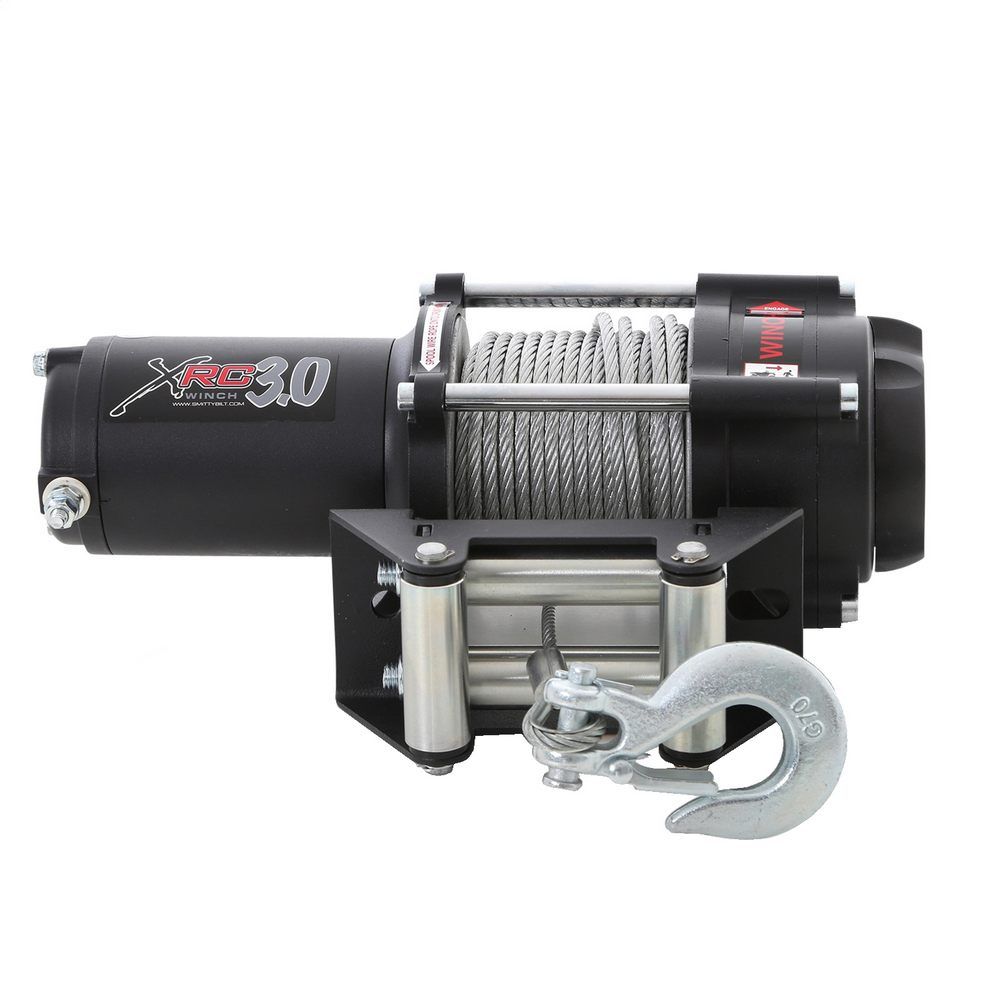

XRC-3 3,000LB ATV/UTV Winch w/ Steel Cable

• 4-way roller fairlead
• Smittybilt Advantage Warranty
• 3.9HP winch motor
• Dimensions: 12.6" L x 4.13" W x 4.35" H
• Self-locking friction brake
• Requires a minimum of a 175CCA battery
• Wired remote control with 11.5' Lead
• Rated Line Pull = 3000 LBS.
• 2-stage planetary gearbox
• 5.5mm x 10m steel cable
• 153:1 gear ratio
• 2" drum

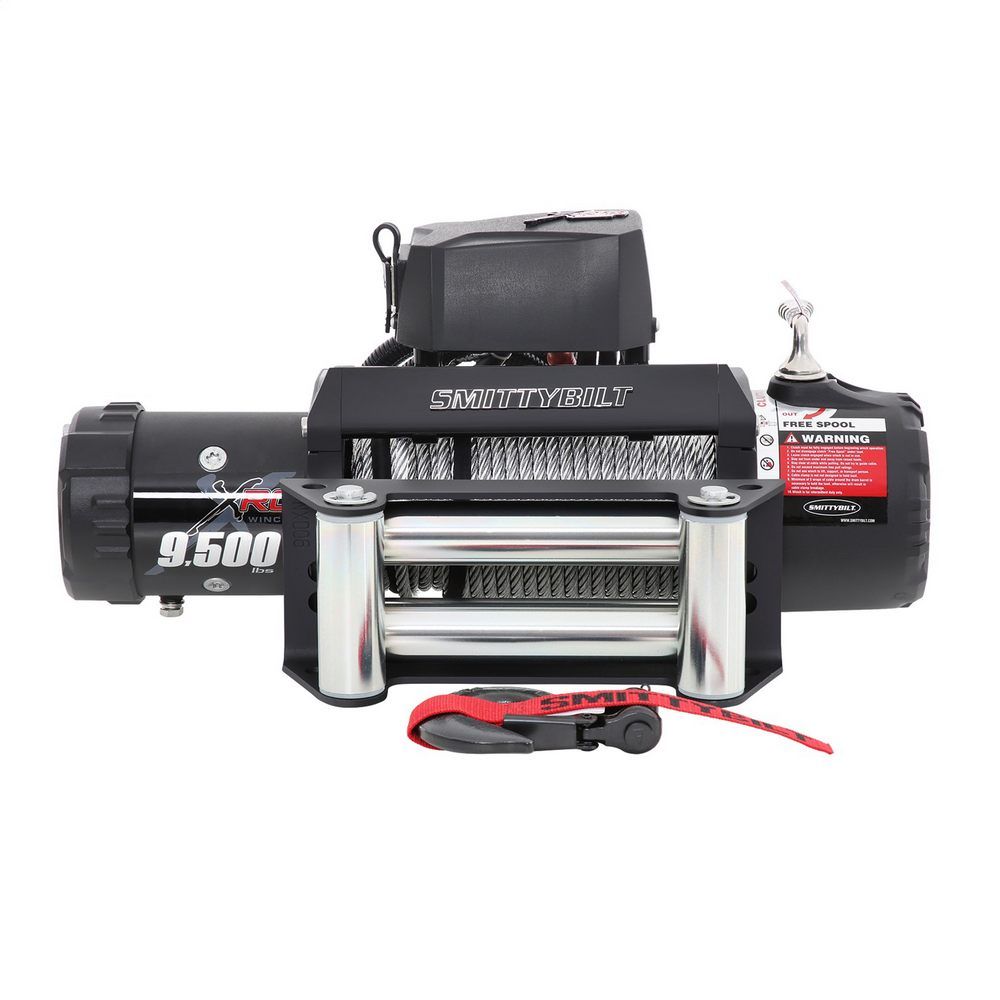

XRC Gen 2 9500lb Winch w/ Steel Cable

• Sliding ring gear clutch
• 2.5" drum diameter
• 161.28:1 gear ratio
• 3-stage planetary gearbox
• 5' battery power cables
• Rated Line Pull: 9,500Lbs (4,309kgs) single-line
• IP67 waterproof
• Dimensions: 22.3" L x 5.4" W x 9.4" H
• Brake: Automatic In-Drum
• 3-Year Electrical / Limited-Lifetime Mechanical Warranty
• 6.6HP series-wound motor
• 4-way roller fairlead
• Bolt Pattern: 10" x 4.5 "
• Weight 99lbs
• Wired remote control with 11.5' Lead
• 5/16" x 93.5' steel cable
• Recommended Battery: 650CCA minimum for winching

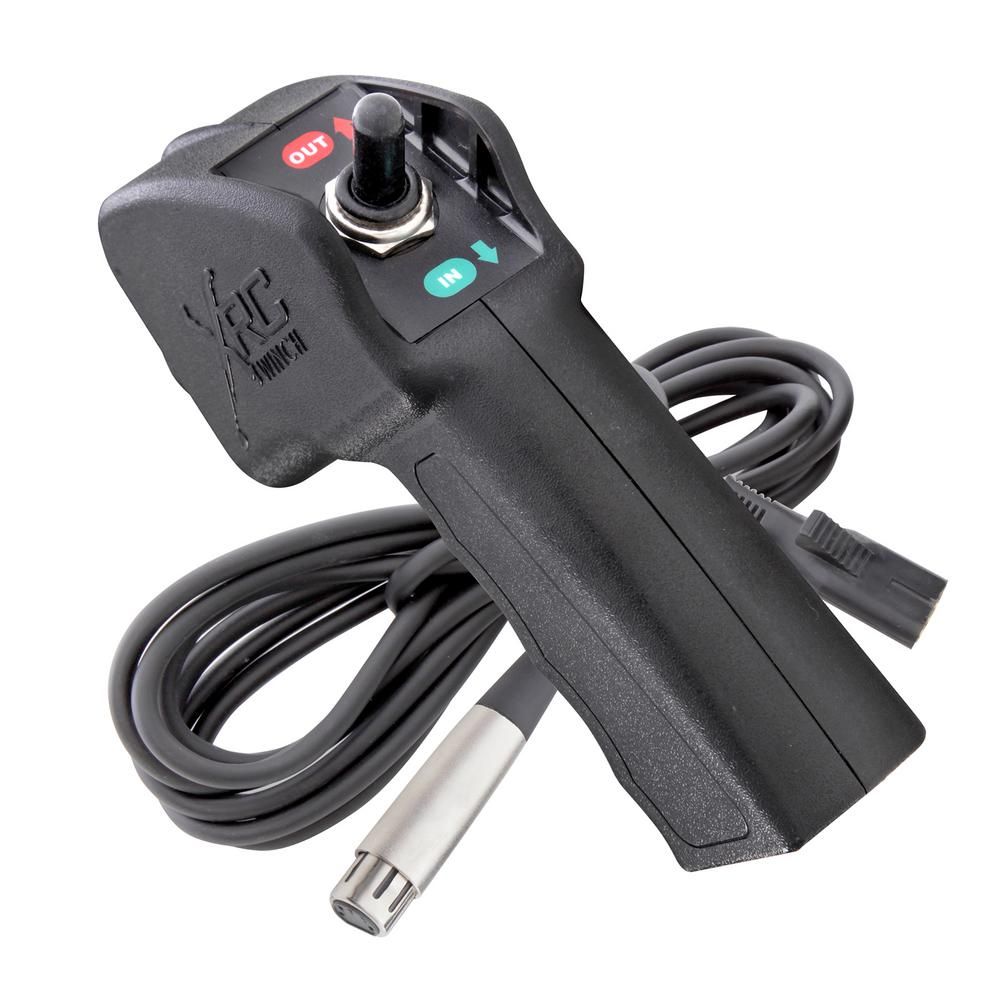

XRC Gen 2 Winch Replacement Remote

• Smittybilt Advantage Warranty
• Works with XRC Gen 2 winches: 97495, 98495, 97412, 98412, 97415, 97417
• Works as a wired replacement for X2O Gen 2 winches: 97510, 98510, 97512, 98512, 97515, 97517
• Direct replacement for XRC Gen 2 winches

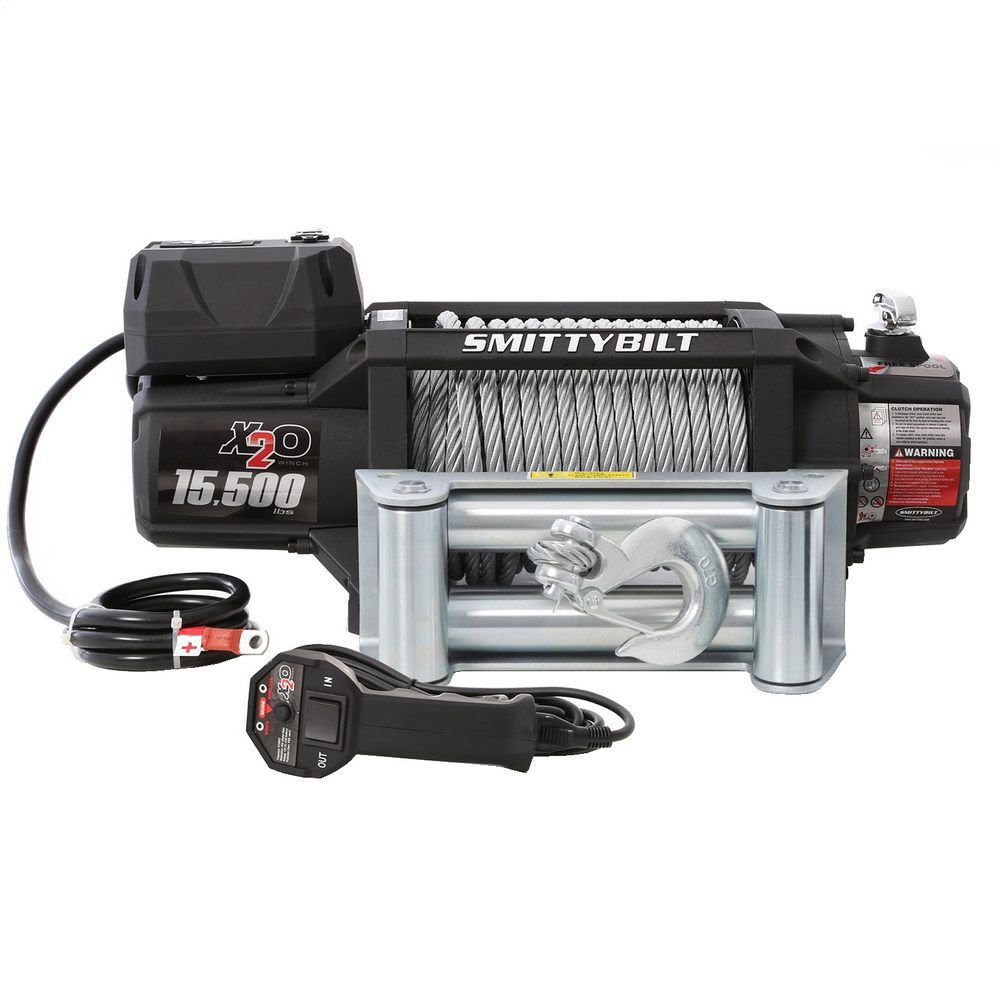

X2O Gen 2 15,500lb Winch w/ Steel Cable

• Mounting Bolt Pattern: 10.0” x 4.50”
• Fairlead: 4-Way Roller
• Clutch: Sliding Ring Gear
• Cable: 98.5’ 3/8” Diameter
• Finish: Textured Black
• Gear Ratio: 430:1
• Drum Size: Diameter 3.45”
• Motor: 6.6hp Series Wound
• Control: Remote Switch, 12’ (3.7m) lead
• Battery Leads: 25mm2, 72”(1.83m)1
• Weight: 150.0Lbs (45.0Kgs)
• 5-Year Electrical / Limited Lifetime Mechanical Warranty
• Gear Train: 3-Stage Planetary
• Remote Control: Included
• Overall Dimensions: (L x W x H) 22.3” x 7.5” x 10.7”
• Recommended Battery: 650CCA Minimum for Winching
• Rated Line Pull: 15,500Lbs (7,045kgs) Single Line
• Brake: Automatic Out-Of-Drum
• Waterproofing: IP68 Rating

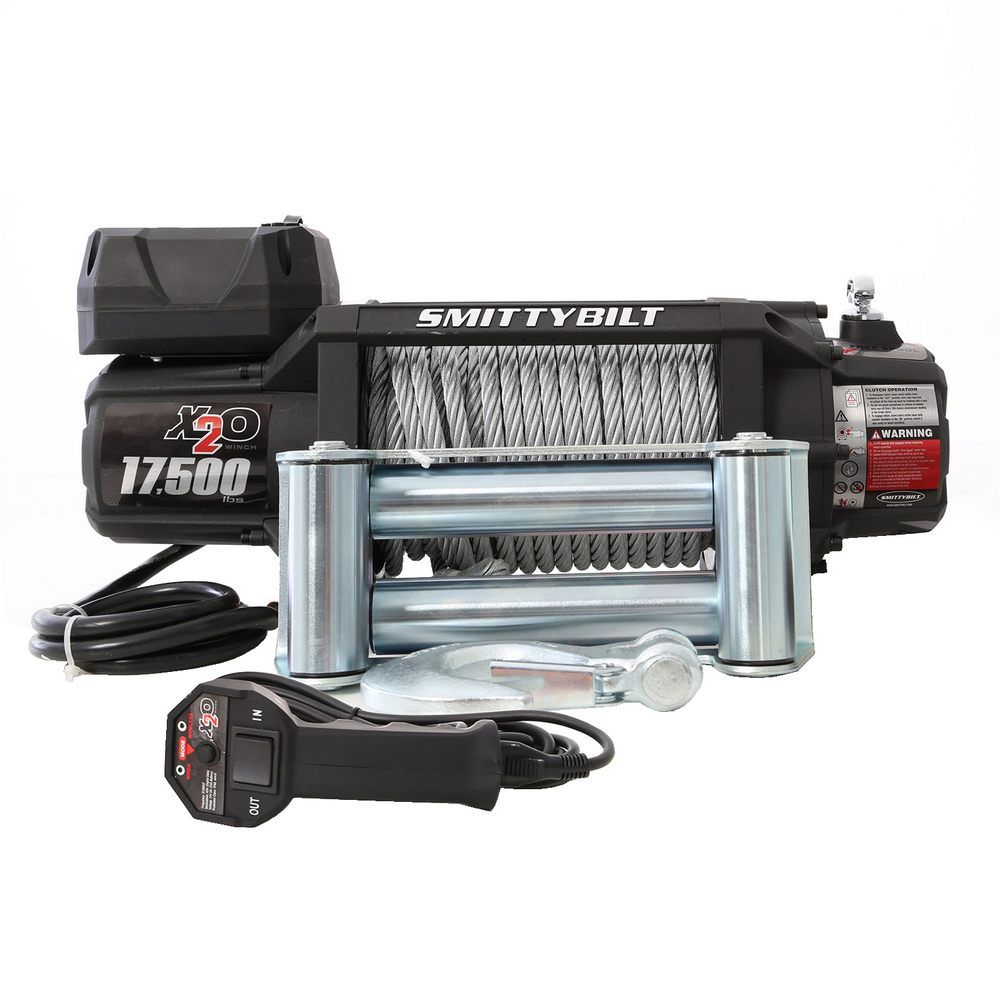

X2O Gen 2 17,500lb Winch w/ Steel Cable

• Battery Leads: 25mm2, 72”(1.83m)1
• Remote Control: Included
• Recommended Battery: 650CCA Minimum for Winching
• Control: Remote Switch, 12’ (3.7m) lead
• Weight: 150.0Lbs (45.0Kgs)
• Waterproofing: IP68 Rating
• Fairlead: 4-Way Roller
• Drum Size: Diameter 3.45”
• Overall Dimensions: (L x W x H) 22.3” x 7.5” x 10.7”
• Clutch: Sliding Ring Gear
• Gear Train: 3-Stage Planetary
• Finish: Textured Black
• Gear Ratio: 430:1
• Motor: 6.6hp Series Wound
• Mounting Bolt Pattern: 10.0” x 4.50”
• Cable: 98.5’ 3/8” Diameter
• 5-Year Electrical / Limited Lifetime Mechanical Warranty
• Brake: Automatic Out-Of-Drum
• Rated Line Pull: 17,500Lbs (7,954kgs) Single Line

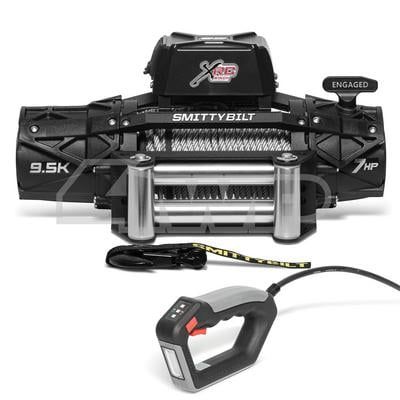

XRC Gen 3 9,500lb Winch w/ Steel Cable

• Forged gears and silicon steel plate rotor
• 9,500 lb. rated line pull
• Increased line speed over Gen2
• High-Viz clutch lever
• Steel cable
• Electrical warranty - 5 years
• IP67 waterproof
• Customizable, detachable body armor
• Roller fairlead
• Powerful, industry-best 7.0 HP motor
• Daytime running light
• Mechanical warranty - Limited-Lifetime
• Controller flashlight and dual magnet mounts
• 3-Stage planetary gear system
• Moveable control box with 12V accessory power post
• Innovative new load indicator warning system

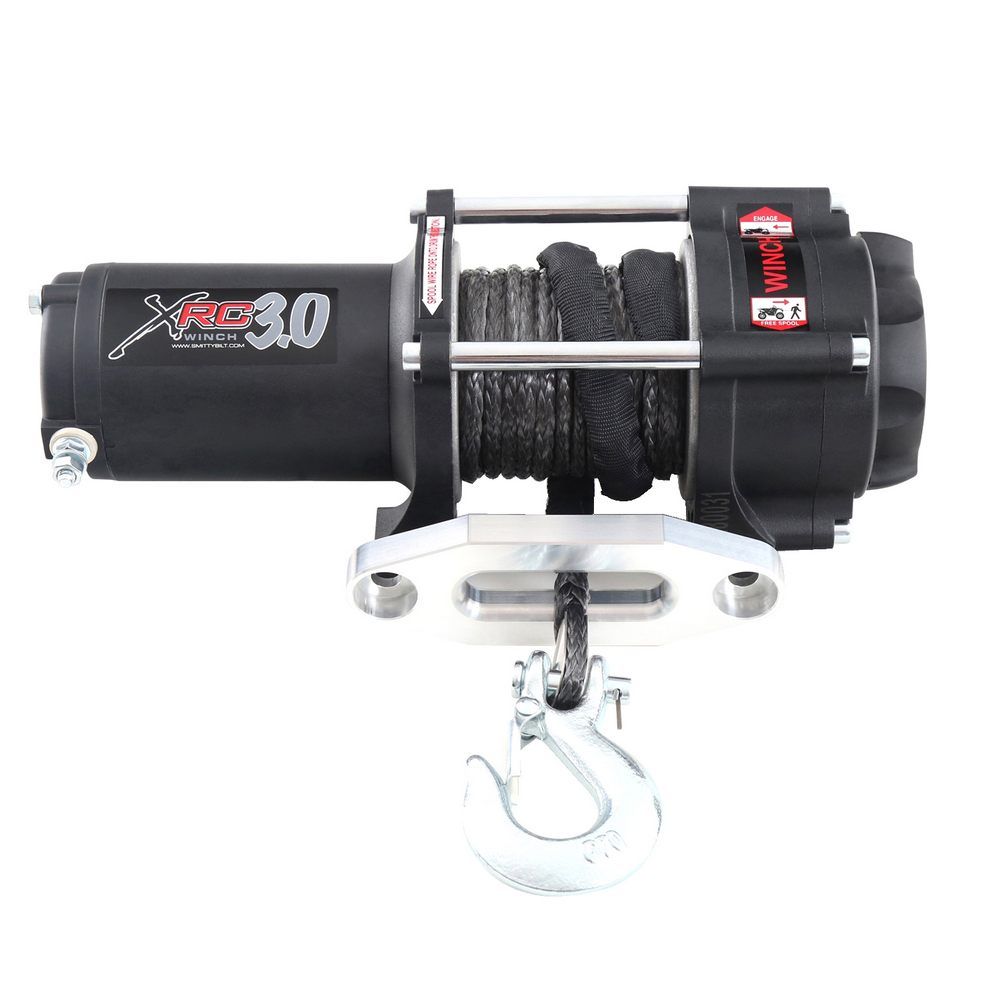

XRC-3 3,000LB ATV/UTV Comp Winch w/ Synthetic Rope

• 2-stage planetary gearbox
• Wired remote control with 11.5' Lead
• 3.9HP motor
• Braking Action = Self-Locking
• Rated Line Pull = 3000 lbs
• Smittybilt Advantage Warranty
• 136:1 gear ratio
• Cable = 40' Of Synthetic DSK-75 Rope
• Aluminum hawse fairlead

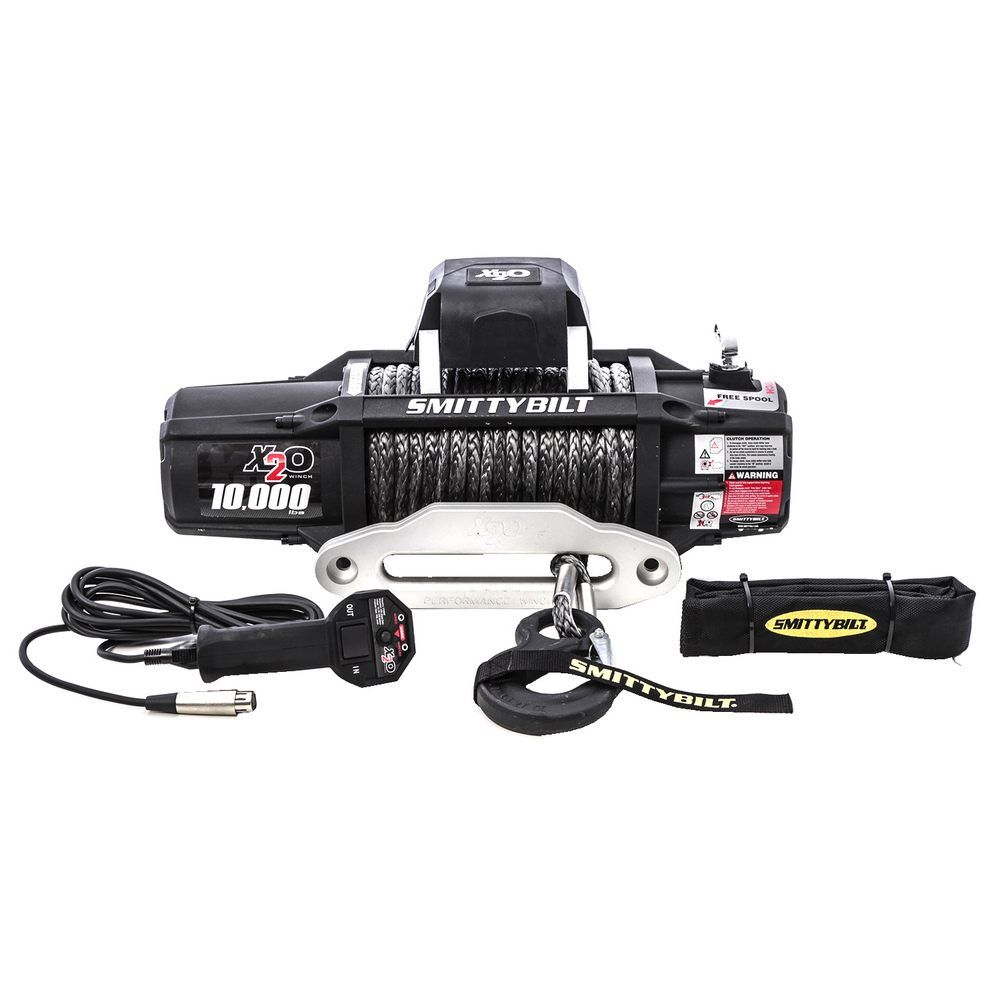

X2O Gen 2 10,000lb Comp Winch w/ Synthetic Rope

• Cable: 98.5’ 3/8” Diameter
• Recommended Battery: 650CCA Minimum for Winching
• Rated Line Pull: 10,000Lbs (4,545kgs) Single Line
• Battery Leads: 25mm2, 72”(1.83m)1
• Cable Type: Synthetic Rope
• Gear Train: 3-Stage Planetary
• Waterproofing: IP68 Rating
• Finish: Textured Black
• Fairlead: Hawse
• Weight: 67.0Lbs (30.4Kgs)
• Motor: 6.6hp Series Wound
• Drum Size: Diameter 2.5”
• 5-Year Electrical / Limited Lifetime Mechanical Warranty
• Remote Control: Included
• Control: Remote Switch, 12’ (3.7m) lead
• Gear Ratio: 218:1
• Clutch: Sliding Ring Gear
• Overall Dimensions: (L x W x H) 22.3” x 5.4” x 9.4”
• Mounting Bolt Pattern: 10.0” x 4.50”
• Brake: Automatic Out-Of-Drum

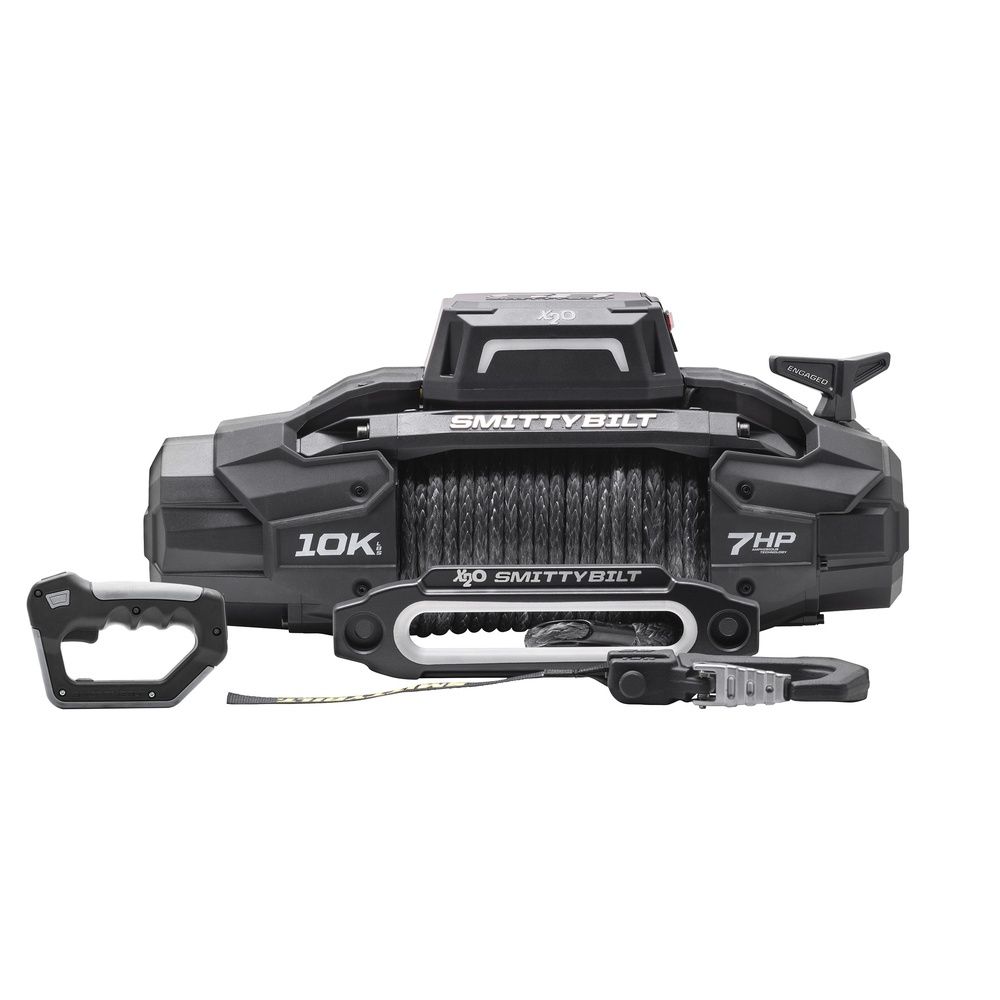

X2O GEN3 10K Winch with Synthetic Rope

• 7HP series wound motor
• Wireless remote with 10' charging/wired cord
• 3/8" x 98.5' synthetic rope
• Sliding ring gear clutch
• 5-Year Electrical / Limited Lifetime Mechanical Warranty
• 3-stage planetary gearbox
• 5' battery power cables
• Recommended Battery: 650CCA Minimum for Winching
• Integrated Wireless Remote
• Automatic load-holding brake - out-of-drum
• Mounting Bolt Pattern: 10.0" x 4.50"
• Overall Dimensions: (L x W x H) 22.3" x 5.4" x 9.4"
