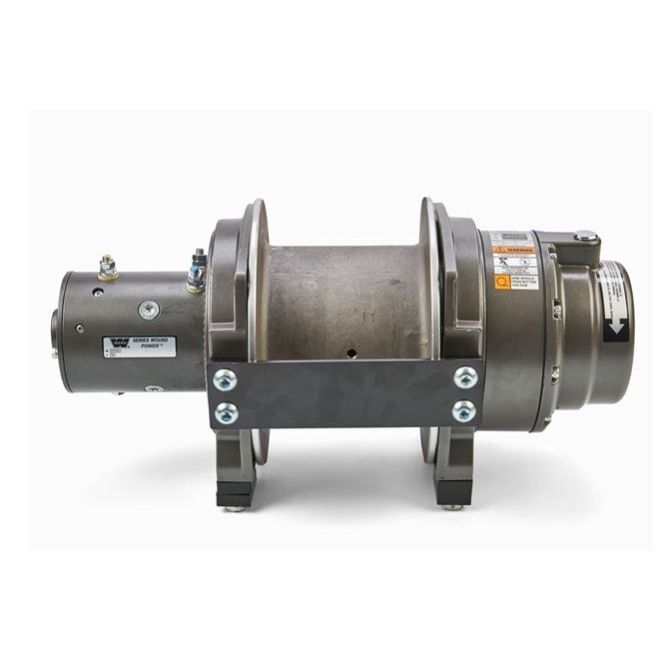

Vehicle-Mounted Hoist

12 Volt; Permanent Magnet; Counter-Clockwise Drum Rotation; 2500 Pound Line Pull Capacity; Without Rope; Without Fairlead; Without Remote; 21:1 Gear Reduction; Automatic Cone Brake

• The DC2500 Hoist Combines A Powerful Permanent Magnet DC Motor With Robust Sealing And Our Prov
• Permanent Grease Lubrication Means Years Of Trouble Free Service
• All Hoists Incorporate An Automatic Mechanical Brake That Holds Full Rated Load
• The Durable Powder Coated Finish Stands Up To The Elements And Looks Great
• The DC2500 Hoist Is Built On WARN's Robust Large Frame Design With A Cast Aluminum Drum To Prov
• Limited 1 Year Warranty

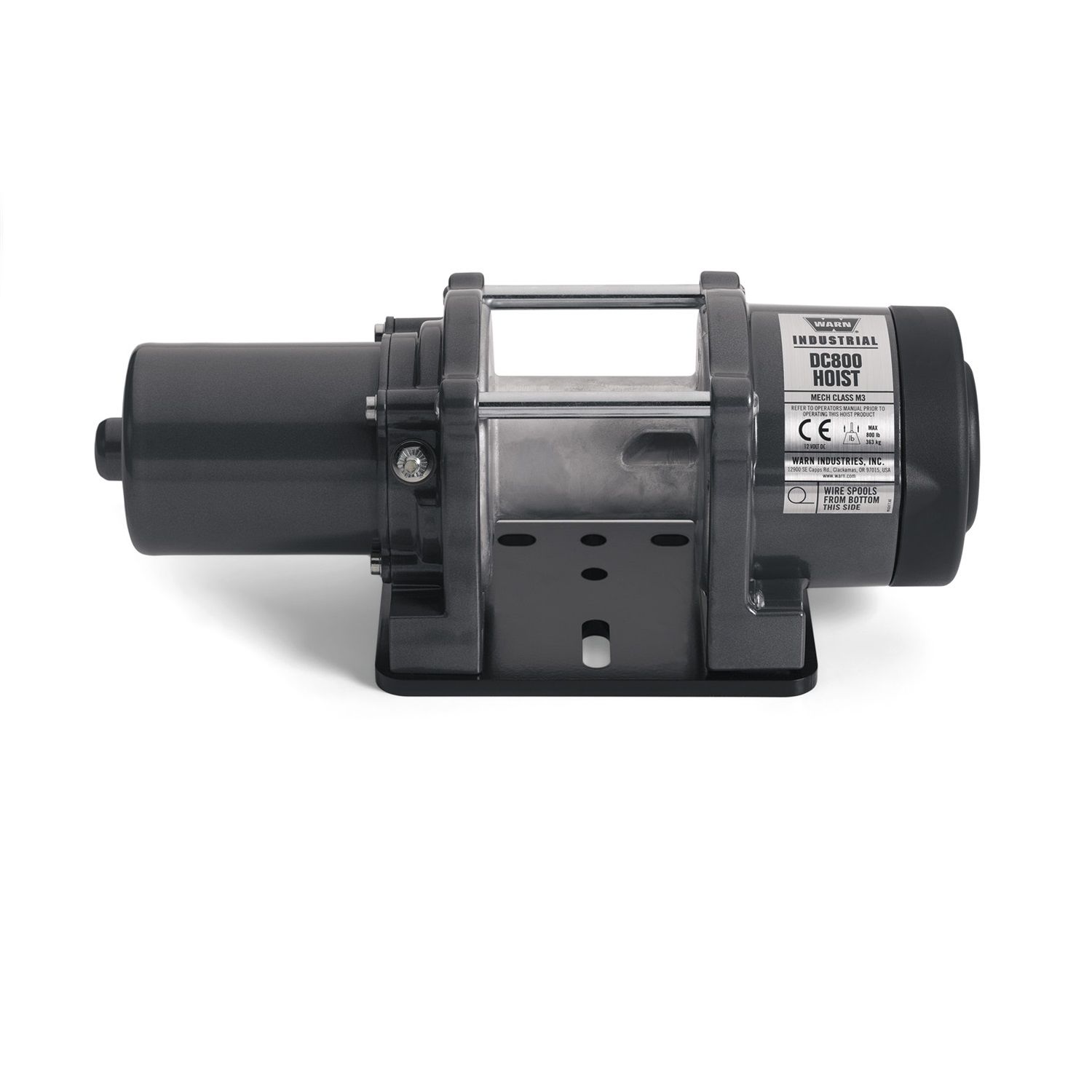

12 Volt Electric; 800 Pound Line Pull Capacity; Without Rope; Without Fairlead; Without Remote; 154:1 Gear Reduction; Disc Brake

• The DC800 hoist combines a powerful permanent magnet DC motor with robust sealing and our prove
• Combines A Powerful Permanent Magnet DC Motor With Robust Sealing And Our Proven 3-Stage All Me
• Incorporates An Automatic Mechanical Brake That Holds Full Rated Load
• Durable Powder Coated Finish Stands Up To The Elements And Looks Great
• Limited 1 Year Warranty

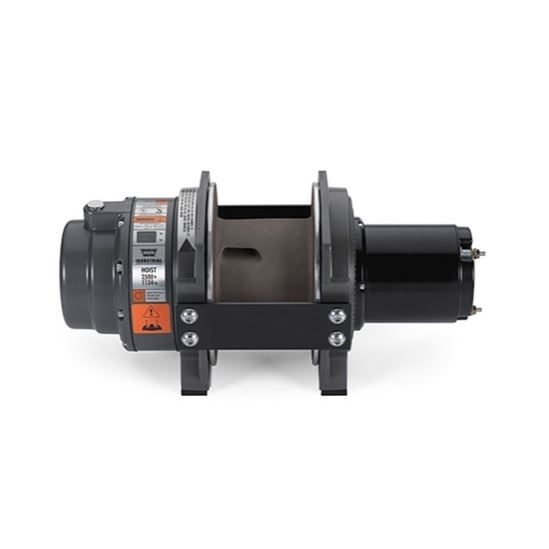

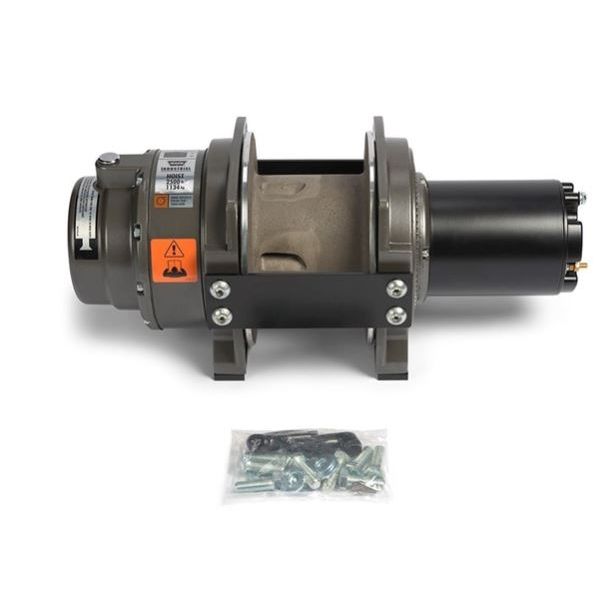

24 Volt Electric; 2500 Pound Line Pull Capacity; Without Rope; Without Fairlead; Without Remote; 315:1 Gear Reduction; Automatic Cone Brake

• The DC2500 hoist combines a powerful permanent magnet DC motor with robust sealing
• Powerful Permanent Magnet DC Motor With Robust Sealing
• Proven 3-Stage Planetary Gear Train
• Permanent Grease Lubrication
• Automatic Cone Brake That Holds Full Rated Load
• Large Frame With A Cast Aluminum Drum For Plenty Of Wire Rope Capacity
• Limited 1 Year Warranty

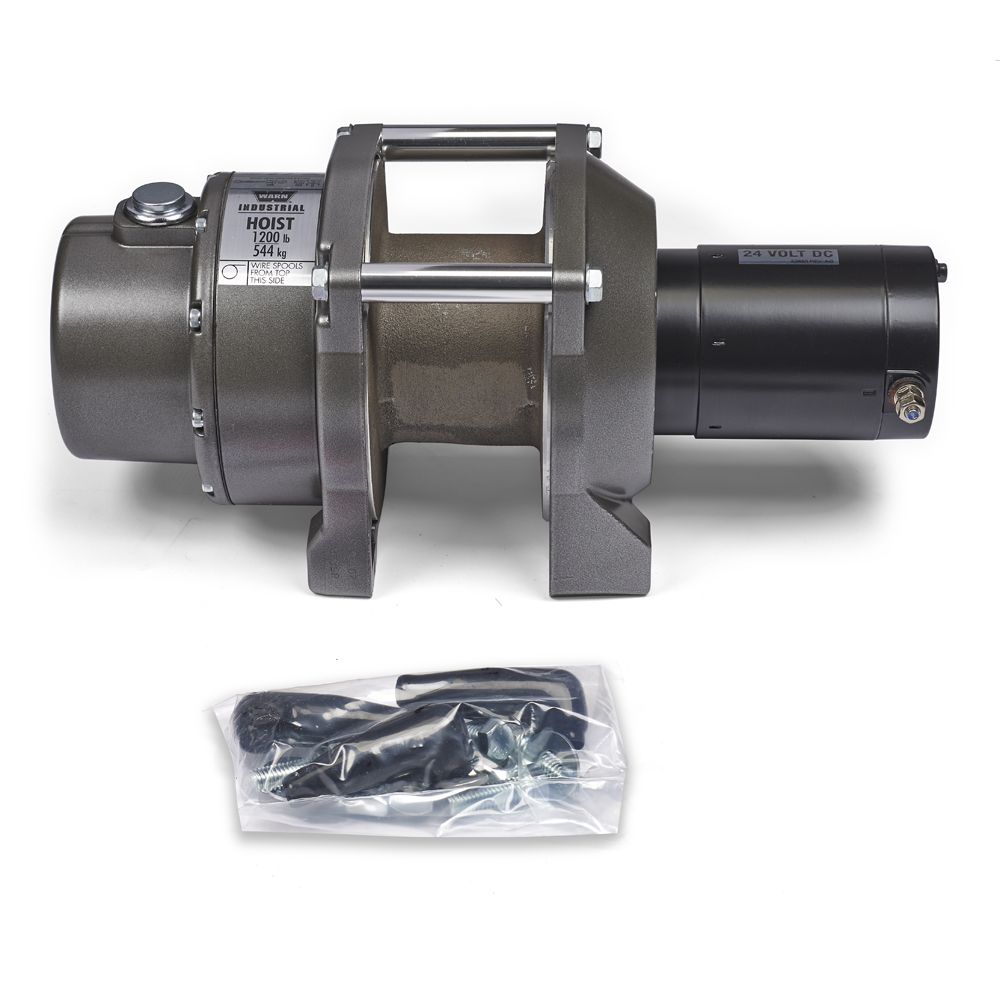

24 Volt Electric; 1200 Pound Line Pull Capacity; Without Rope; Without Fairlead; Without Remote; 216:1 Gear Reduction; Automatic Cone Brake

• The DC1200 hoist combines a powerful permanent magnet DC motor with robust sealing
• Powerful Permanent Magnet DC Motor With Robust Sealing
• Proven 3-Stage Planetary Gear Train
• Permanent Grease Lubrication
• Automatic Cone Brake That Holds Full Rated Load
• Compact Midsize Frame With Integrated Tie Bars For Easy Installation
• Limited 1 Year Warranty

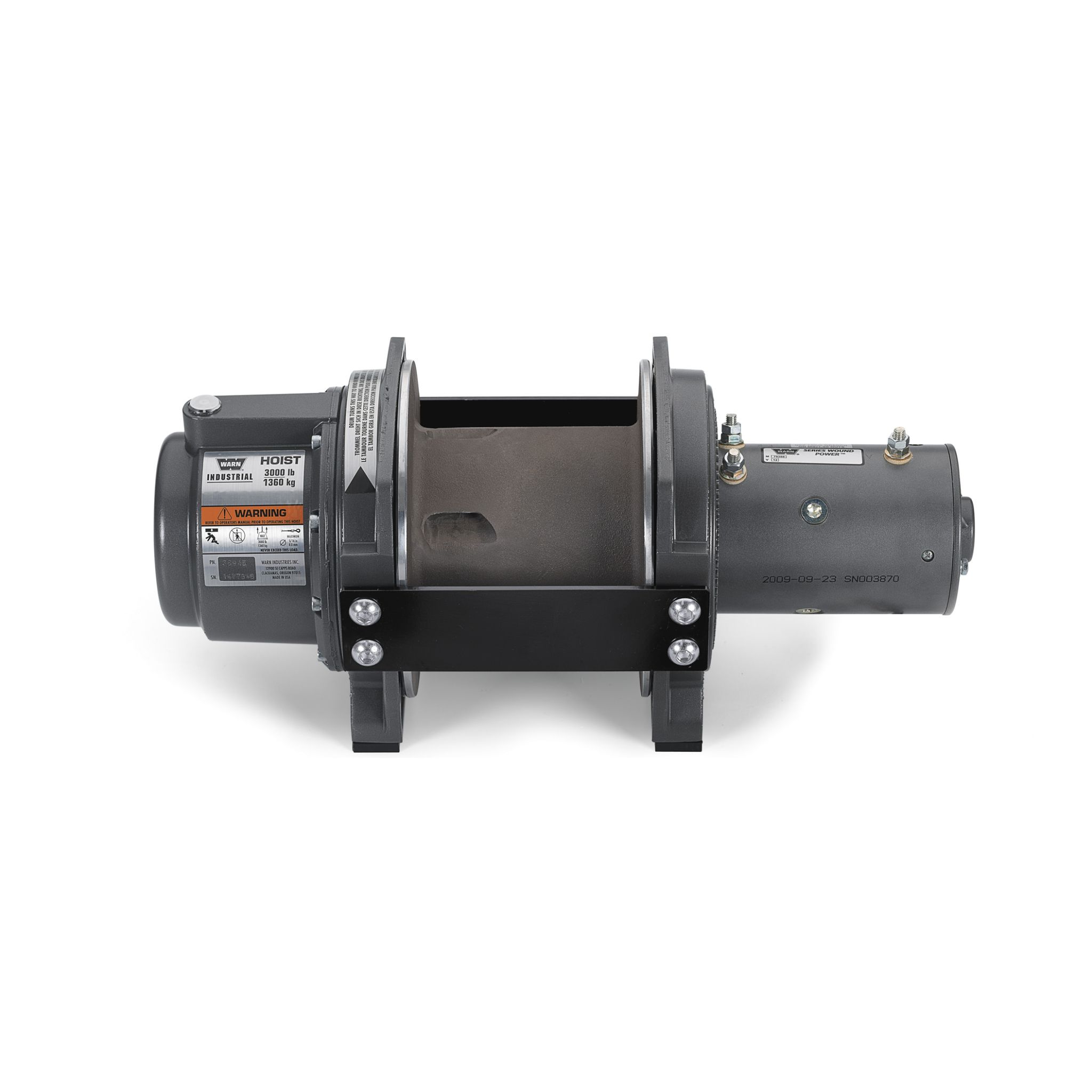

12 Volt Electric; 3000 Pound Line Pull Capacity; Without Rope; Without Fairlead; Without Remote; 199 Gear Reduction; Automatic Disc Brake

• The DC3000 hoist combines a powerful series wound DC motor with robust sealing
• Powerful Series Wound DC Motor With Robust Sealing
• Proven 3-Stage Planetary Gear Train
• Permanent Grease Lubrication
• Automatic Disc Brake That Holds Full Rated Load
• Large Frame With A Cast Aluminum Drum For Plenty Of Wire Rope Capacity
• Limited 1 Year Warranty

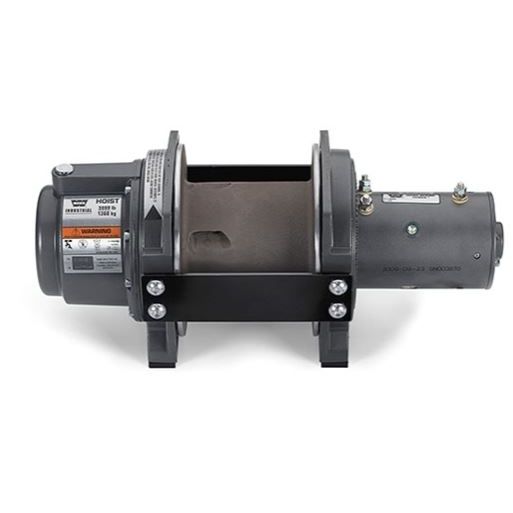

24 Volt Electric; 3000 Pound Line Pull Capacity; Without Rope; Without Fairlead; Without Remote; 199 Gear Reduction; Automatic Disc Brake

• The DC3000 hoist combines a powerful series wound DC motor with robust sealing
• Powerful Series Wound DC Motor With Robust Sealing
• Proven 3-Stage Planetary Gear Train
• Permanent Grease Lubrication
• Automatic Disc Brake That Holds Full Rated Load
• Large Frame With A Cast Aluminum Drum For Plenty Of Wire Rope Capacity
• Limited 1 Year Warranty

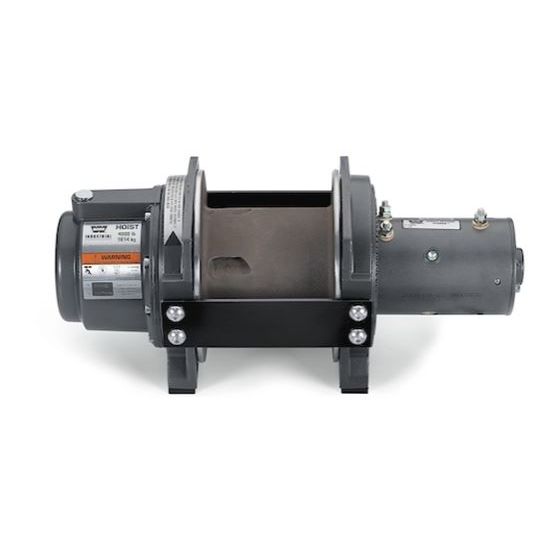

12 Volt Electric; 4000 Pound Line Pull Capacity; Without Rope; Without Fairlead; Without Remote; 315 Gear Reduction; Automatic Disc Brake

• The DC4000 hoist combines a powerful series wound DC motor with robust sealing
• Powerful Series-Wound DC Motor With Robust Sealing
• Proven 3-Stage All-Metal Gear Train With Permanent Grease Lubrication For Years Of Trouble-Free
• Large-Frame Design With A Cast Aluminum Drum Provides Plenty Of Wire Rope Capacity
• Automatic Disc Brake Holds Full Rated Load
• Durable Powder-Coated Finish Stands Up To The Elements
• Limited 1 Year Warranty

24 Volt Electric; 4000 Pound Line Pull Capacity; Without Rope; Without Fairlead; Without Remote; 315 Gear Reduction; Automatic Disc Brake

• The DC4000 hoist combines a powerful series wound DC motor with robust sealing
• Powerful Series-Wound DC Motor With Robust Sealing
• Proven 3-Stage All-Metal Gear Train With Permanent Grease Lubrication For Years Of Trouble-Free
• Large-Frame Design With A Cast Aluminum Drum Provides Plenty Of Wire Rope Capacity
• Automatic Disc Brake Holds Full Rated Load
• Durable Powder-Coated Finish Stands Up To The Elements
• Limited 1 Year Warranty

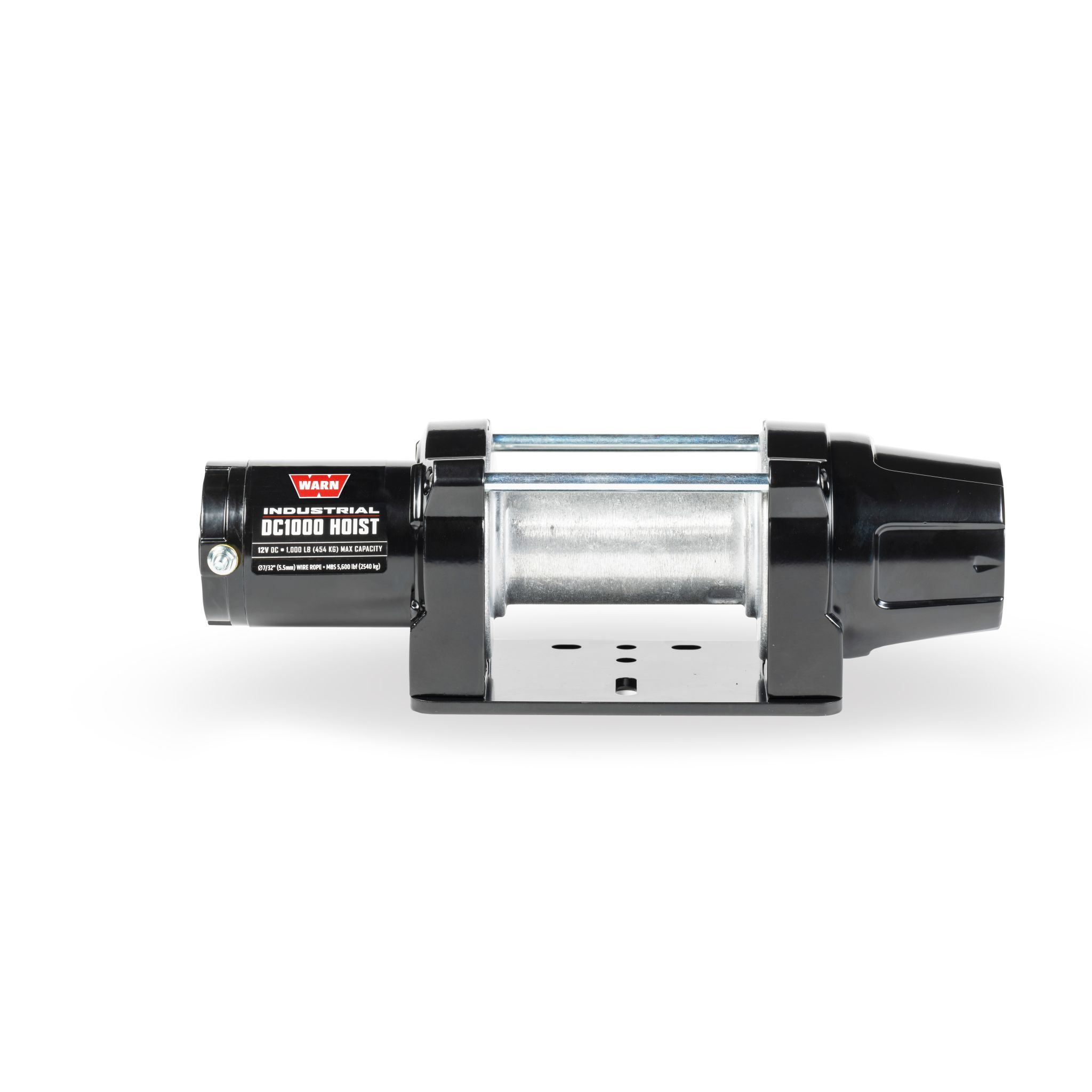

Industrial 1000 lb (454 kg) capacity hoist, 12V DC permanent magnet motor. Reliable all-metal three-stage planetary gear train, load holding automatic mechanical brake, permanent grease lubrication, and IP68/IP69K waterproofing

• 1000 lb (454 kg) capacity
• 12V DC permanent magnet motor
• IP68/IP69K waterproofing sealing
• Mounting bolt pattern 3.0"x6.59" (76.2mm x 167.4mm)
• automatic mechanical brake that holds full-rated load

Industrial 1000 lb (454 kg) capacity hoist, 12V DC permanent magnet motor. Reliable all-metal three-stage planetary gear train, load holding automatic mechanical brake, permanent grease lubrication, and IP68/IP69K waterproofing

• 1000 lb (454 kg) capacity
• 12V DC permanent magnet motor
• IP68/IP69K waterproofing sealing
• Mounting bolt pattern 3.0"x4.87" (76.2mm x 123.7mm)
• automatic mechanical brake that holds full-rated load

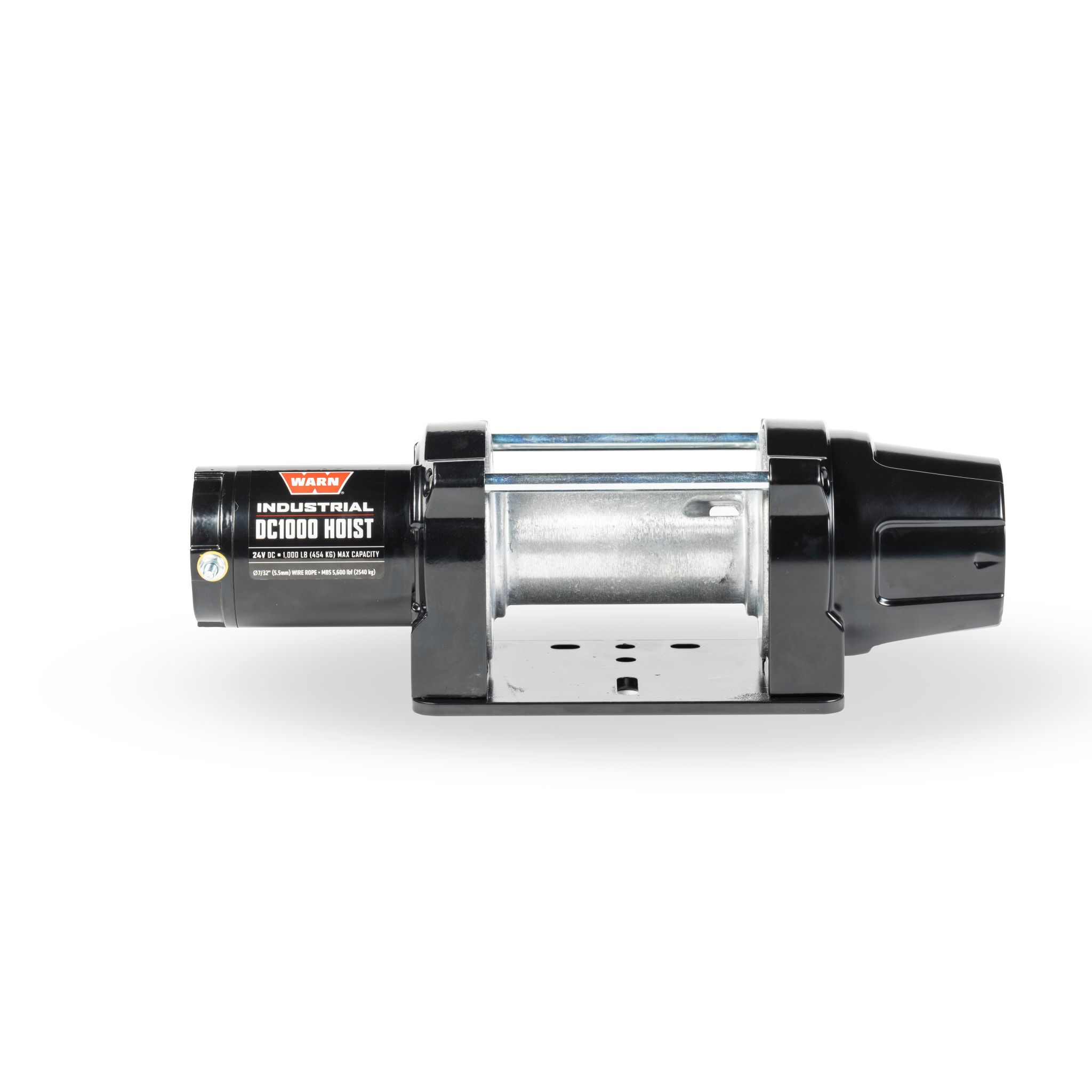

Industrial 1000 lb (454 kg) capacity hoist, 24V DC permanent magnet motor. Reliable all-metal three-stage planetary gear train, load holding automatic mechanical brake, permanent grease lubrication, and IP68/IP69K waterproofing

• 1000 lb (454 kg) capacity
• 24V DC permanent magnet motor
• IP68/IP69K waterproofing sealing
• Mounting bolt pattern 3.0"x6.59" (76.2mm x 167.4mm)
• automatic mechanical brake that holds full-rated load

Industrial 800 lb (363 kg) capacity hoist, 24V DC permanent magnet motor. Reliable all-metal three-stage planetary gear train, load holding automatic mechanical brake, permanent grease lubrication, and IP68/IP69K waterproofing

• 800 lb (363 kg) capacity
• 24V DC permanent magnet motor
• IP68/IP69K waterproofing sealing
• Mounting bolt pattern 3.0"x4.87" (76.2mm x 123.7mm)
• automatic mechanical brake that holds full-rated load
