Data Logging Unit

QWIKDATA 2 ADVANCED LOGGER CONTROL UNIT

• Add More Sensors For Additional Parameters
• Most Powerful/Flexible QwikData 2 Available
• Prepare For And Dominate Any Racing Discipline

QWIKDATA 2 BASIC LOGGER CONTROL UNIT

• Add More Sensors For Additional Parameters
• Build Your Own Data Acquisition System

Qwikdata Bracket Rcng Pkg

• For Use With QwikData Package Or Replacement
• Made In The U.S.A.
• Racing Harness used for Bracket Racing Apps

Qwikdata2 Basic System

• 1 MB Memory Storage
• Adjustable Logging Rates
• Fully Assembled Wiring Harness
• Made In The U.S.A.
• Quick And Easy Installation
• Software Can Be Easily
• Two Programmable Outputs Are Provided
• Up To 34 Data Input Channels

Advanced Qwikdata System

• 4 MB Memory Storage
• Adjustable Logging Rates
• Fully Assembled Wiring Harness
• Made In The U.S.A.
• Quick And Easy Installation
• Software Can Be Easily Updated
• Two Programmable Outputs Are Provided
• Up To 34 Data Input Channels

Cable assembly used to connect general purpose thermocouples to the TK-4 thermocouple converter. The standard QwikData packages and will also be sold individually as a QwikData option and as a spare/replacement part.

Wheel / shaft speed sensor kit for use with the QwikData and QwikData 2 data acquisition systems. Included in all QwikData and QwikData 2 packages and will also be sold individually as a sensor option and as a spare/replacement part.

This item is a pair of rare earth cobalt magnets which is part of the Wheel/Shaft Speed Sensor Kit for use with the QwikData and QwikData 2 data acquisition systems. It will be sold as a spare/replacement item.

QwikData 2

• Includes 26 And 34 Pin Logger Housings
• QwikData 2 LCU Advanced Port Dust Plug

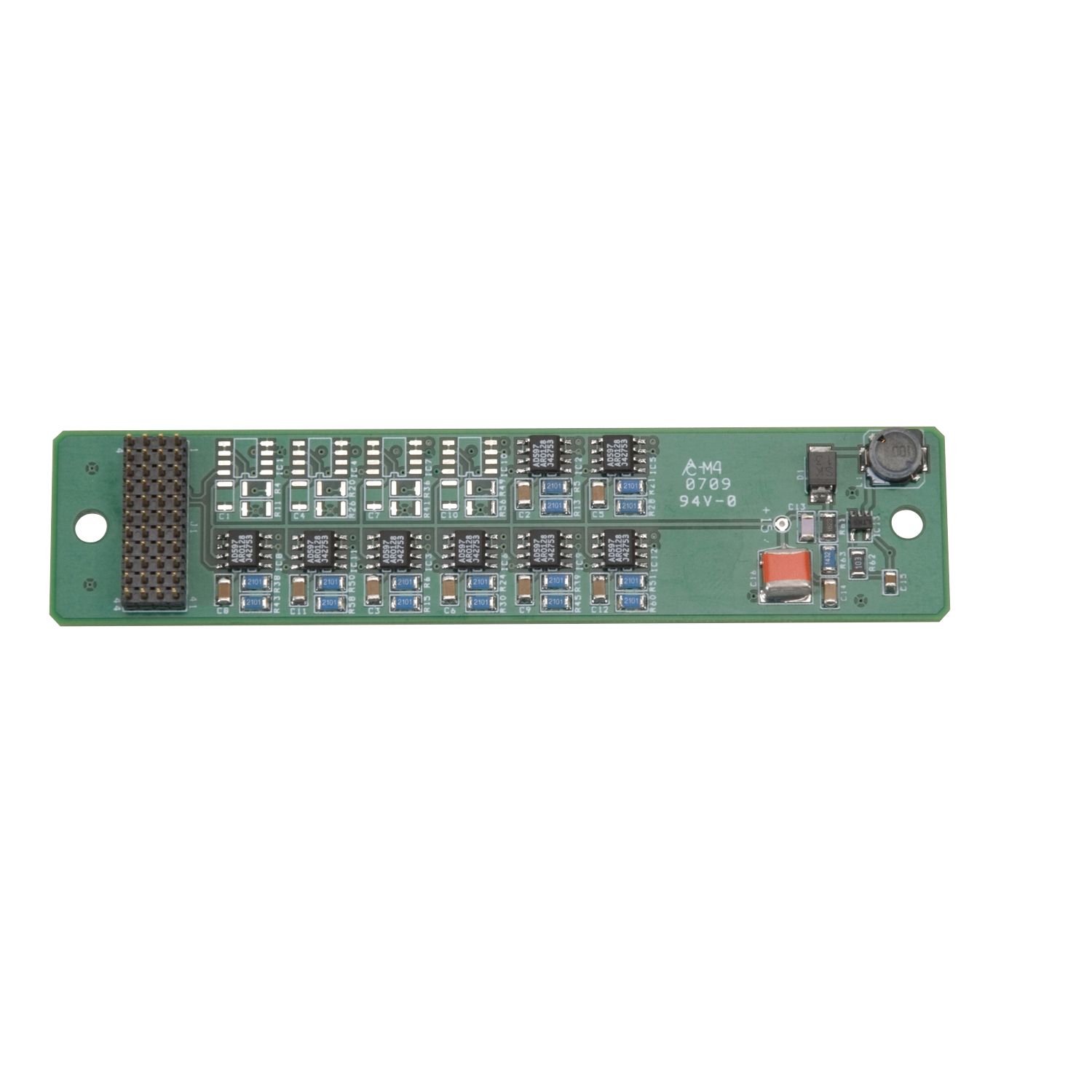

Qwikdata Basic-Upgrade

• Can Monitor Converter And Clutch Slip
• Data Logging Unit Must be Returned to Edelbrock
• Edelbrock will Install Upgrade
• Upgrades Base Units to 24 Analog Inputs

ADAPTER x4 THERMISTOR x8 EGT K TYPE QWIKDATA 2

• Converts 12 Analog Channels Inputs To 8 EGT K-Type Inputs
• Made In The U.S.A.
• x8 EGT/x4 Temperature

Exhaust Gas Thermocouple

• Ferrule And 1/8 in. NPT
• Includes Weld Bushing
• Made In The U.S.A.
• QwikData EGT Thermocouple Compression Fitting
• Sold Individually

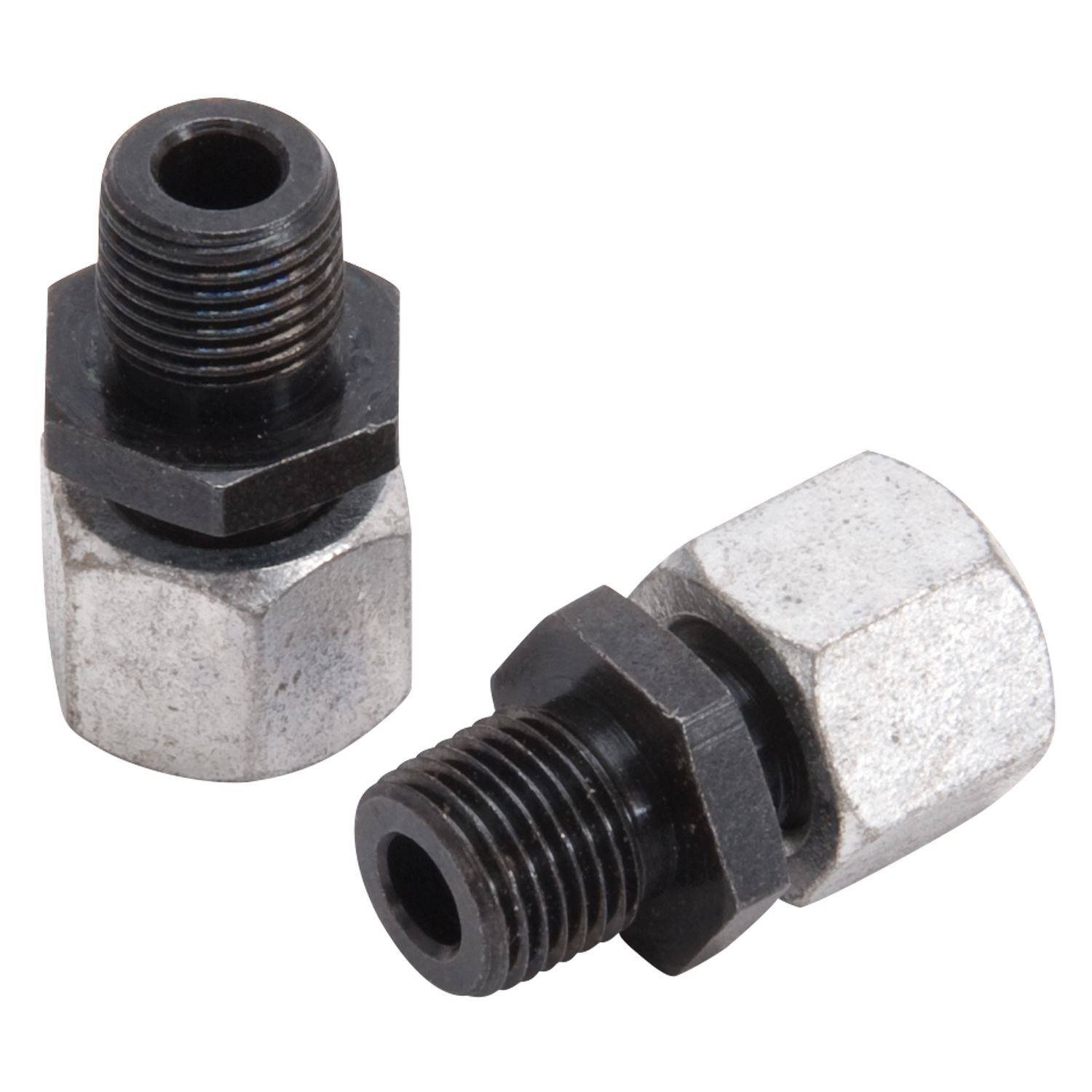

Thermocouple Compression Fitting for Qwikdata

• Ferrule And 1/8 in. NPT
• Includes Extra Wiring Harness
• Made In The U.S.A.
• QwikData Thermocouple Compression Fitting
• Sold Individually

Exhaust Gas Thermocouple

• Designed to Measure Fuel Flow
• Use to Mount QwikData Exhaust Gas Thermocouples

LCU Connector Sockets QwikData 2

• 18 x 1.5mm Threads
• QwikData 2 LCU Connector Sockets

SENSORS HARNESS SIDE QD2

• Adjustable 0-3 Inches
• Harness
