Suspension Bump Stop

2007-2021 TOYOTA TUNDRA REAR HYDRAULIC BUMP STOP SYSTEM

• 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• Replaceable noise reducing striker pad
• Fully serviceable
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Position sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• Fully reversible to factory configuration with no bed cutting required
• Heavy duty 1 ¼” CNC machined nitro steel shaft
• Multi stage CAD plated body for maximum corrosion resistance
• Double sealed high pressure Schrader valve
• Operating range of 50 – 250 PSI

1.5" tall bump stop, polyurethane with 3/8" stud, nut and washer.

1/2" tall bump stop, polyurethane with 3/8" stud, nut and washer.

2010-2014 FORD F150 RAPTOR REAR AIR BUMP KIT

• Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs
• Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts
• Increases frame rigidity and improves overall vehicle dynamics
• Industry first billet cross beam
• Pre-tuned and Nitrogen charged for most Ford Raptors
• Integrated adjustability for future ICON Raptor specific products
• Linear-digressive piston which compliments a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
• CAD Plated body for corrosion free service
• Urethane rod seal and wiper for long service life
• User serviceable and tunable
• Easy bolt on installation without having to remove the truck bed
• 6061 Solid billet cross bar that is polished & anodized
• Bumpstop striker pad does not require leaf spring disassembly
• Comfortable on road manners with sufficient damping capability under extreme load
• Hydro-pneumatic bumpstop increases bump energy capacity
• Velocity sensitive hydraulic bumpstop increases the amount of energy absorbed the faster it is hit
• Reduces rear end kick and improves overall performance
• Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off road use

2017-2020 FORD RAPTOR REAR AIR BUMP KIT

• Bolt-on installation does not require any fabrication or removal of the bed
• Replaceable noise-reducing striker pad
• Fully serviceable
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• 2.5” travel hydraulic bump stop reduces rear end ‘kick’ and improves overall vehicle performance
• Velocity sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune provides smooth engagement and excellent ride quality
• 6061 billet aluminum crossmember increases chassis rigidity to improve overall vehicle dynamics
• Steel clamshell brackets strengthen the frame in critical areas to prevent damage from extreme off-road use
• Adjustable tension rods allow the frame to be preloaded to withstand torsional force during hard impacts
• Heavy duty 1.25” CNC machined nitro steel shafts
• Multi-stage CAD plated body for maximum corrosion resistance

Bump Stop, Embedded Washer, Rubber, 1.25 in. Height

Camburg Slapper Bump Stop - King 2.50" (Single)

• Designed exclusively for Camburg
• Used in Long Travel Slapper kits
• Sold individually

Camburg Bump Stop - Fox 2.00" (Single)

• JM92 MIL-SPEC oil developed specifically for off-road racing
• Black Anodized CNC Machined Aluminum Components
• Owner serviceable and rebuildable

Vehicles equipped with the ICON hydraulic bump stop kit will have an increased bottom-out resistance over stock, reduces rear-end “kick”,as well as an improves drivability off-road.

• Hydraulic / pneumatic bumpstop increases bump energy capacity
• Urethane rod seal and wiper for long service life
• User serviceable
• Velocity sensitive bumpstop increases the amount of energy absorbed the faster it is hit
• Reduces rear end kick and improves overall performance
• Increased bottom resistance over stock
• No loss in travel
• Easy installation inside coil
• Pre-tuned for most users
• Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
• CAD Plated body for corrosion free service

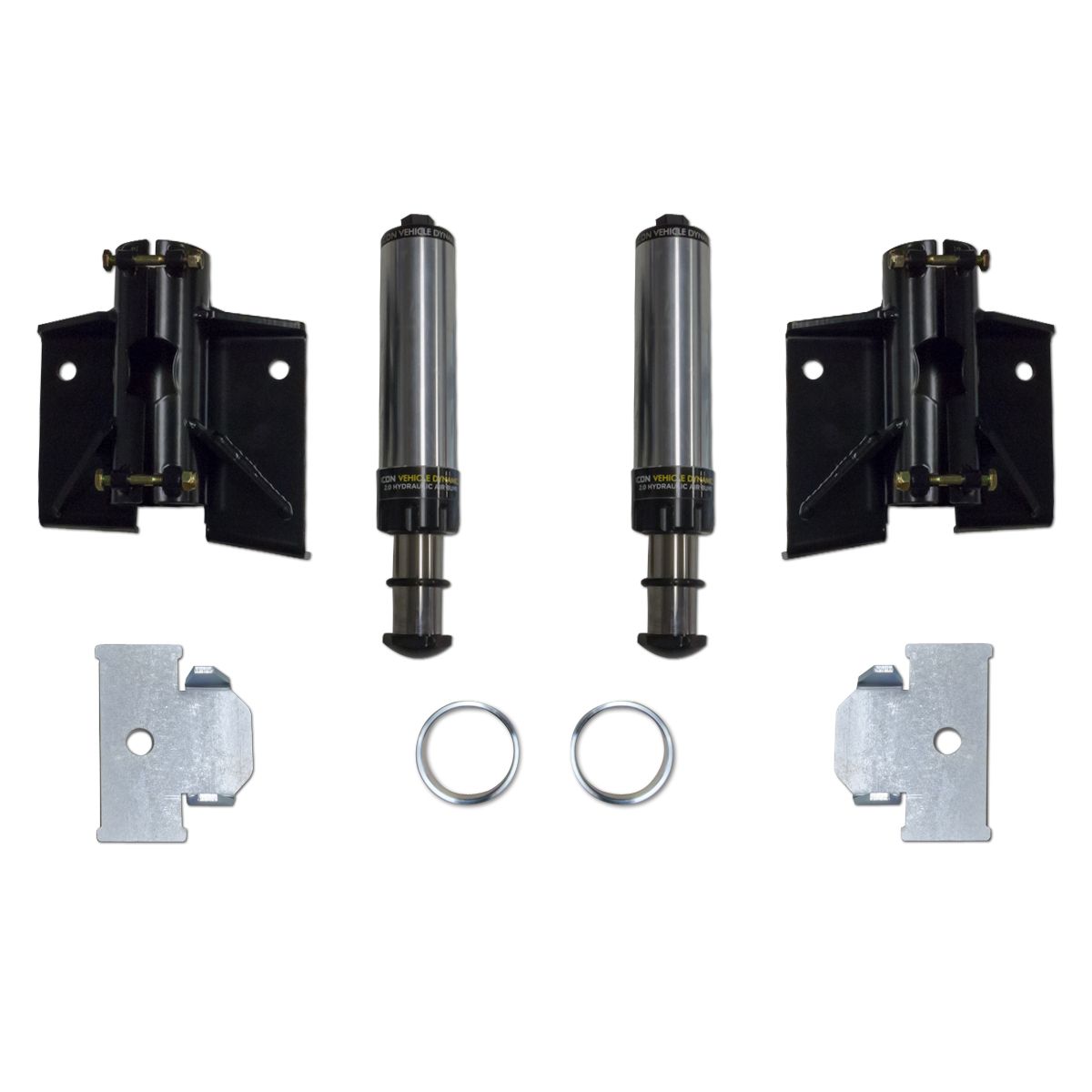

This vehicle specific tuned hydraulic bumpstop system offers both smooth engagement, maximum bottom resistance, and smooth controlled return. The compression and rebound tuned bumpstop is smooth, not abrupt or harsh like the OE bumpstop.

• Bolt-on design using existing holes in frame for clean install with no cutting or welding
• User serviceable
• Industry only Toyota Tacoma specific tune to maximize bottom out resistance while having smooth engagement as well as return
• Absorbs additional impact energy over the OEM rubber bumpstop and returns the axle in a more controlled manner
• Industry only kit allowing adjustment for leaf pack height changes so uptravel is not lost
• Can be returned to stock
• Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
• Anodized billet top cap, o-ring sealed back up cap, seal head and striker
• CAD Plated body for corrosion free service
• Urethane rod seal and wiper for long service life

2020-UP JEEP JT / 2018-UP JEEP JL / 2007-2018 JEEP JK FRONT HYDRAULIC BUMP STOP KIT

• Straightforward bolt-on installation
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• 2.5” travel hydraulic bump stop reduces front end bottom-out and improves overall vehicle performance
• Steel bump stop brackets guaranteed for life against breakage or manufacturer defect
• Velocity sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune provides smooth engagement and excellent ride quality
• Heavy duty 1.25” CNC machined nitro steel shafts
• Multi-stage CAD plated body for maximum corrosion resistance
• Replaceable noise-reducing striker pad
• Fully serviceable

2022-2023 TOYOTA TUNDRA REAR HYDRAULIC BUMP STOP KIT

• 2.5” diameter bump stops with 2.25” of travel
• CNC laser cut steel mounting brackets
• Semi-gloss black powder coat finish on brackets for corrosion resistance
• 100% bolt-on installation on top of rear coil springs
• Impact extruded, hard anodized aluminum bump stop bodies
• Heavy duty 1.625" diameter hardened, chrome plated steel shafts
• Internal reservoir design provides more consistent and predictable performance than emulsion bump stops
• Velocity/position sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune provides smooth engagement and excellent ride quality
• Replaceable, noise reducing striker pads
• CNC machined 6061 billet aluminum components
• Bump stops are fully rebuildable and re-tunable

The ICON 2022-2024 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick.

• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• Fully serviceable
• Fully reversible to factory configuration with no bed cutting required
• 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• Position and velocity sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• Heavy duty 1 ¼” CNC machined nitro steel shaft
• Multi stage CAD plated body for maximum corrosion resistance
• Double sealed high pressure Schrader valve
• Replaceable noise reducing striker pad

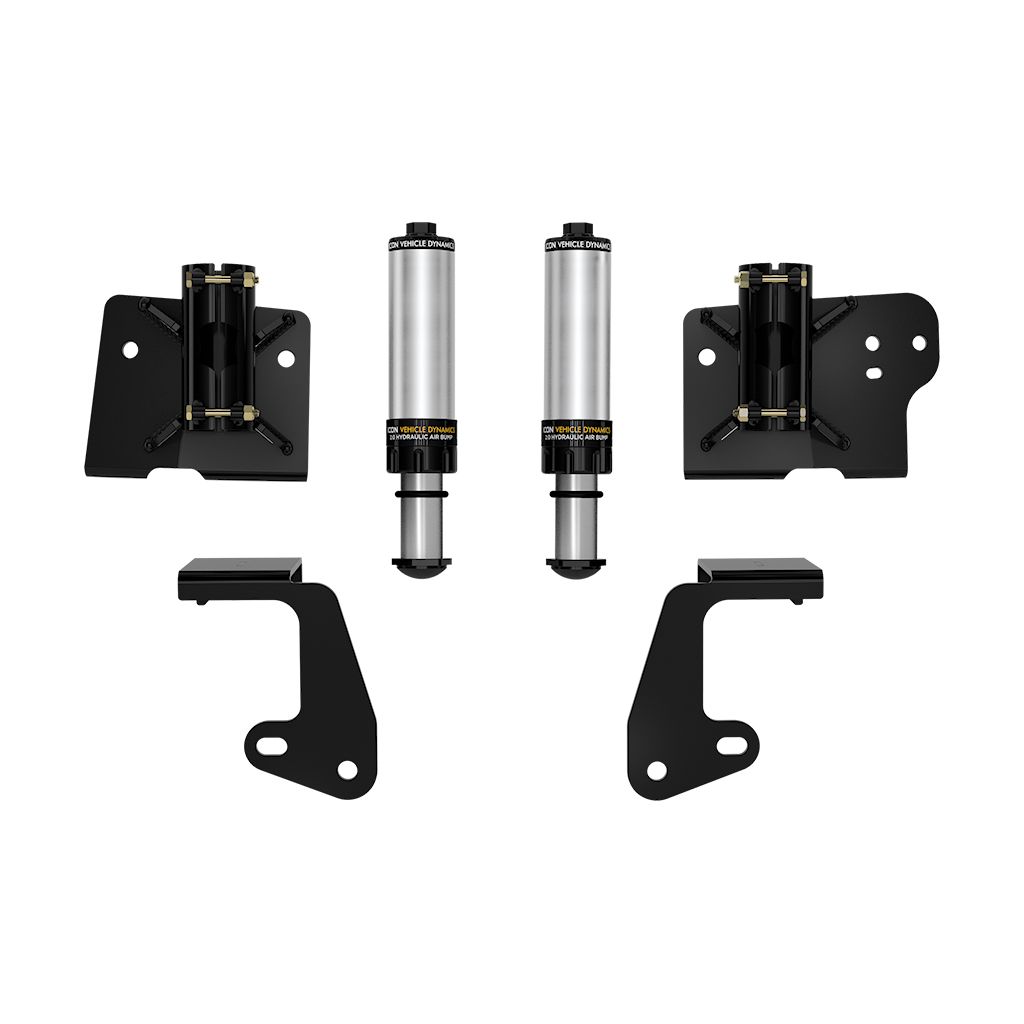

The ICON 2022-2025 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick.

• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• Fully serviceable
• Fully reversible to factory configuration with no bed cutting required
• 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• Position and velocity sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• Heavy duty 1 ¼” CNC machined nitro steel shaft
• Multi stage CAD plated body for maximum corrosion resistance
• Double sealed high pressure Schrader valve
• Replaceable noise reducing striker pad
