Air Suspension Spring

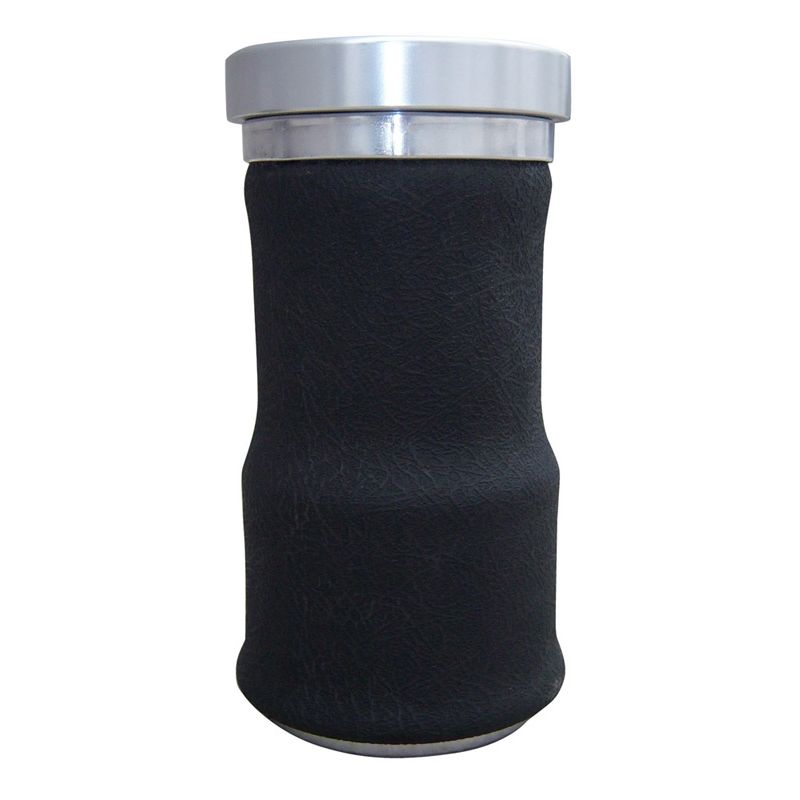

91mm Straight Sleeve Air spring

F2107 3500 lb. 1T sleeve air spring

Firestone 6781 double convoluted air spring, 6.5" diameter with 1/4" npt port. Length is 3" minimum, 4.5"-5" ride height and 7" maximum. Load capacity is 2140 lbs. at 100 psi.

Firestone 6873 double convoluted air spring, 8" diameter with 1/4" npt port. Length is 3" minimum, 5"-5.5" ride height and 8" maximum. Load capacity is 2140 lbs. at 100 psi.

Firestone 7012 rolling sleeve air spring, 5" diameter with 1/8" npt port. Length is 4" minimum, 7"-8" ride height and 13" maximum. Load capacity is 1000 lbs. at 100 psi.

Firestone 7076 rolling sleeve air spring, 4" diameter with 1/8" npt port. Length is 3.5" minimum, 5"-6" ride height and 9" maximum. Load capacity is 800 lbs. at 100 psi.

Firestone 7325 double convoluted air spring, 8" diameter with 1/4" npt port. Length is 3" minimum, 5"-6" ride height and 10" maximum. Load capacity is 3400 lbs. at 100 psi.

Firestone 9000 tapered rolling sleeve air spring, 5" diameter with 1/4" npt port. Length is 4.5" minimum, 9"-9.5" ride height and 12" maximum. Load capacity is 1500 lbs. at 100 psi.

Firestone 9002 tapered rolling sleeve air spring, 5" diameter with 1/4" npt port. Length is 4.5" minimum, 8"-8.5" ride height and 11" maximum. Load capacity is 1500 lbs. at 100 psi.

Ridetech 9100 tapered rolling sleeve air spring, 6.5" diameter with 1/4" npt port. Length is 5.25" minimum, 10"-10.5" ride height and 15" maximum. Load capacity is 2000 lbs. at 100 psi.
