Engine Valve Spring Seat

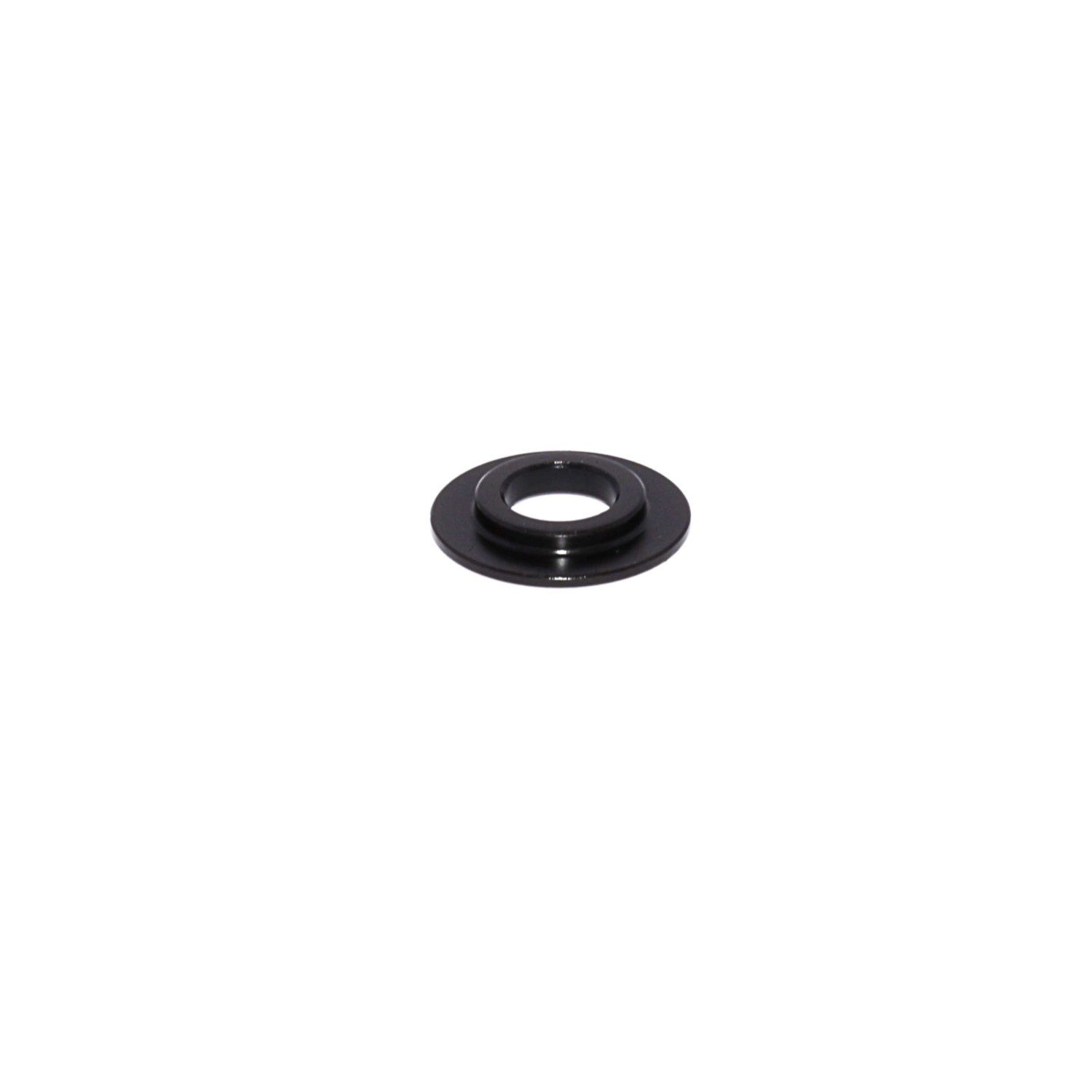

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4861 features a 1.300" OD and a .510" ID.

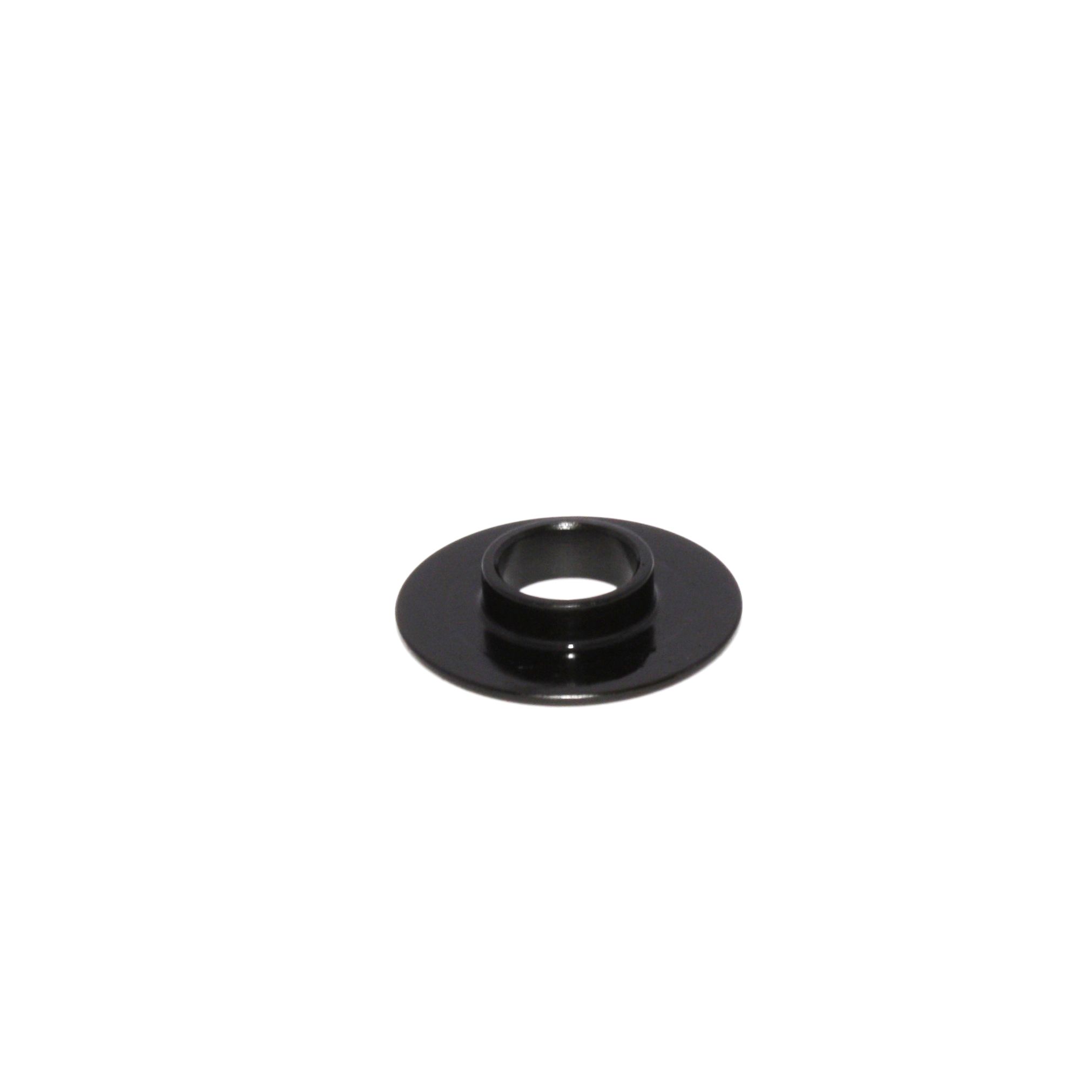

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4695 seat's 1.300" OD works well with our 26921 and 26926 valve springs.

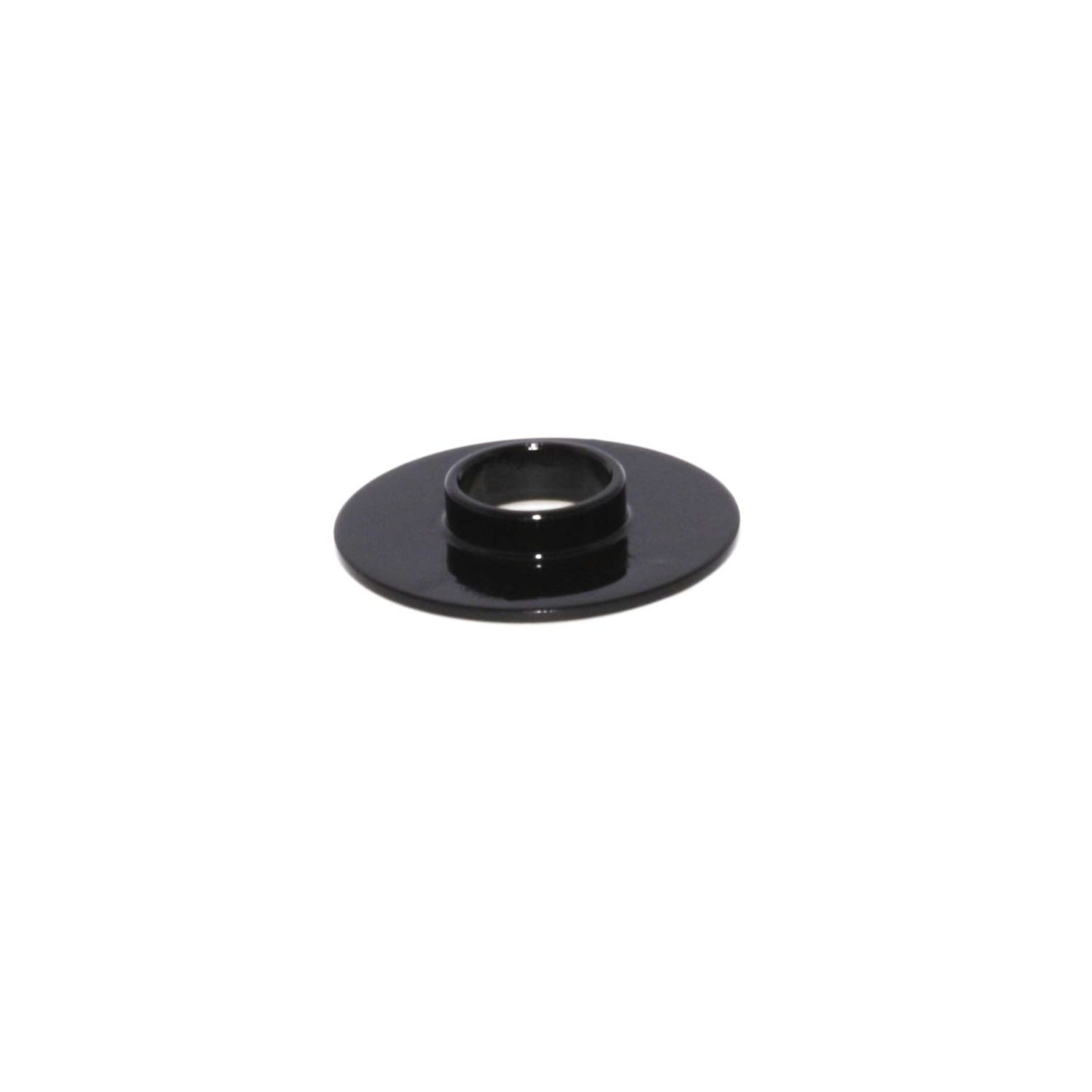

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4872 features a 1.300" OD and a .520" ID which works well for our 26918 Beehive valve spring.

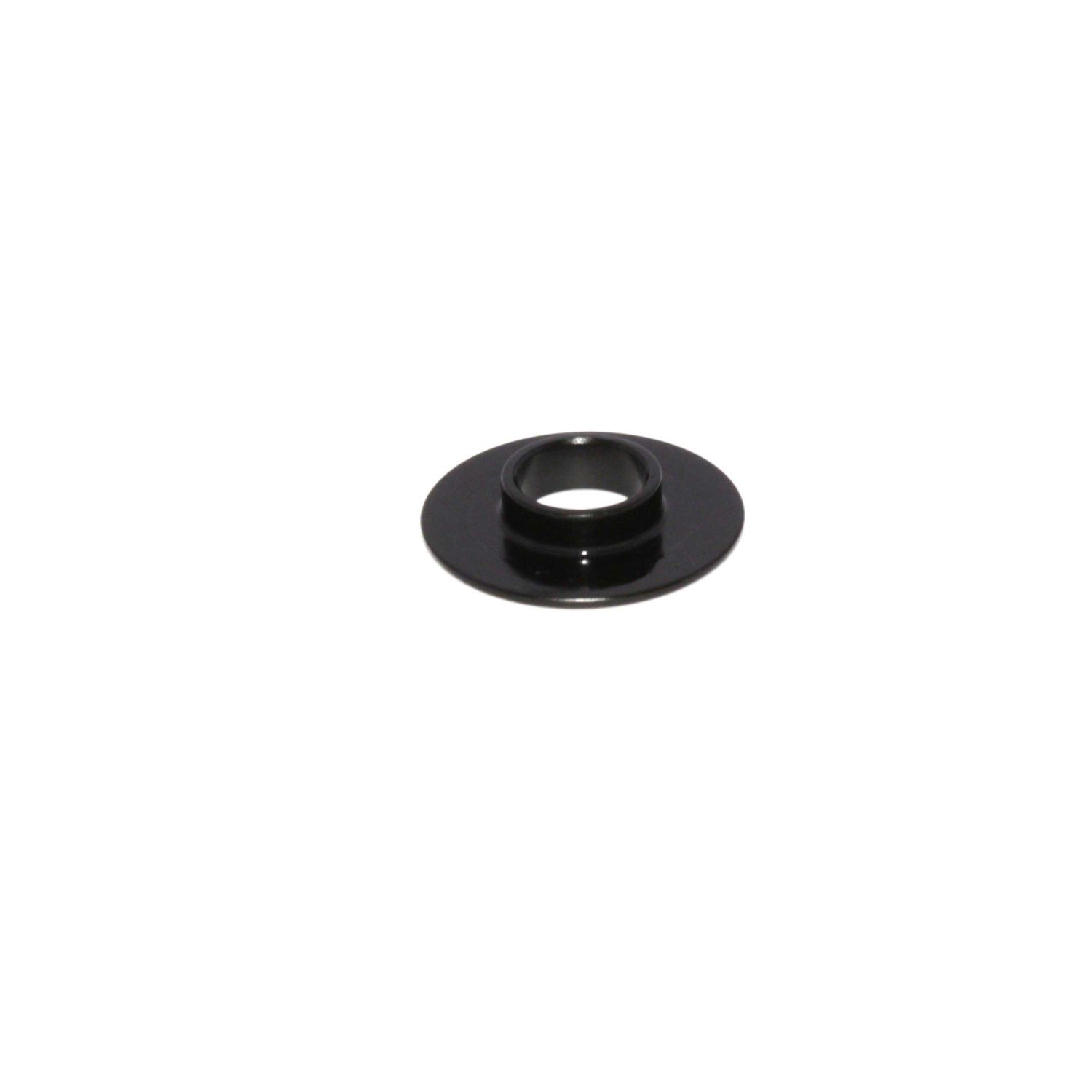

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4873 features a 1.300" OD and a .520" ID.

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4676 seat's 1.300" OD works well with our 7228 and 7230 conical springs in applications with a .530" OD guide.

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4677 seat's 1.300" OD works well with our 7228 and 7230 conical springs in applications with a .570" OD guide.

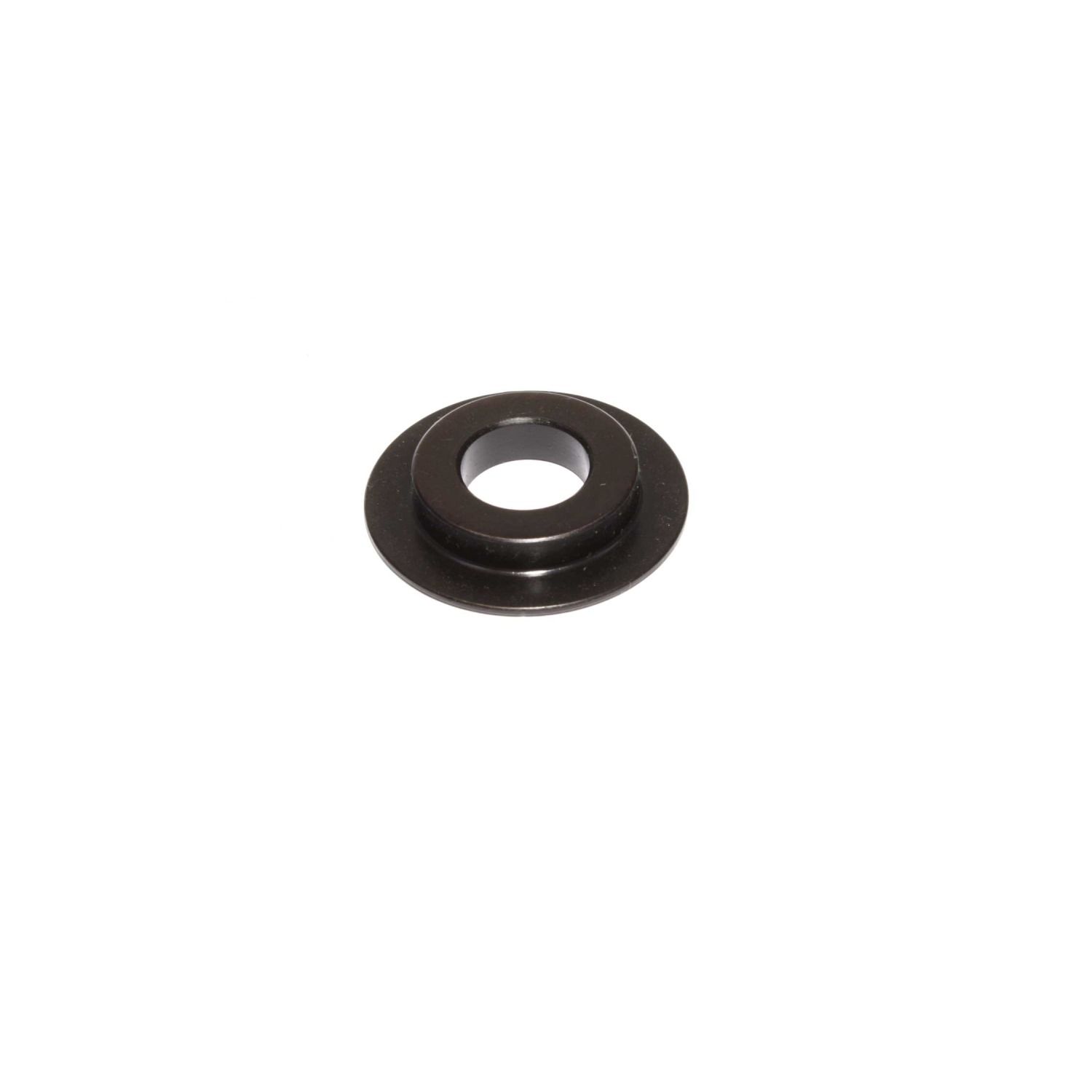

26926 and 26526 valve springs in .570" guide applications.

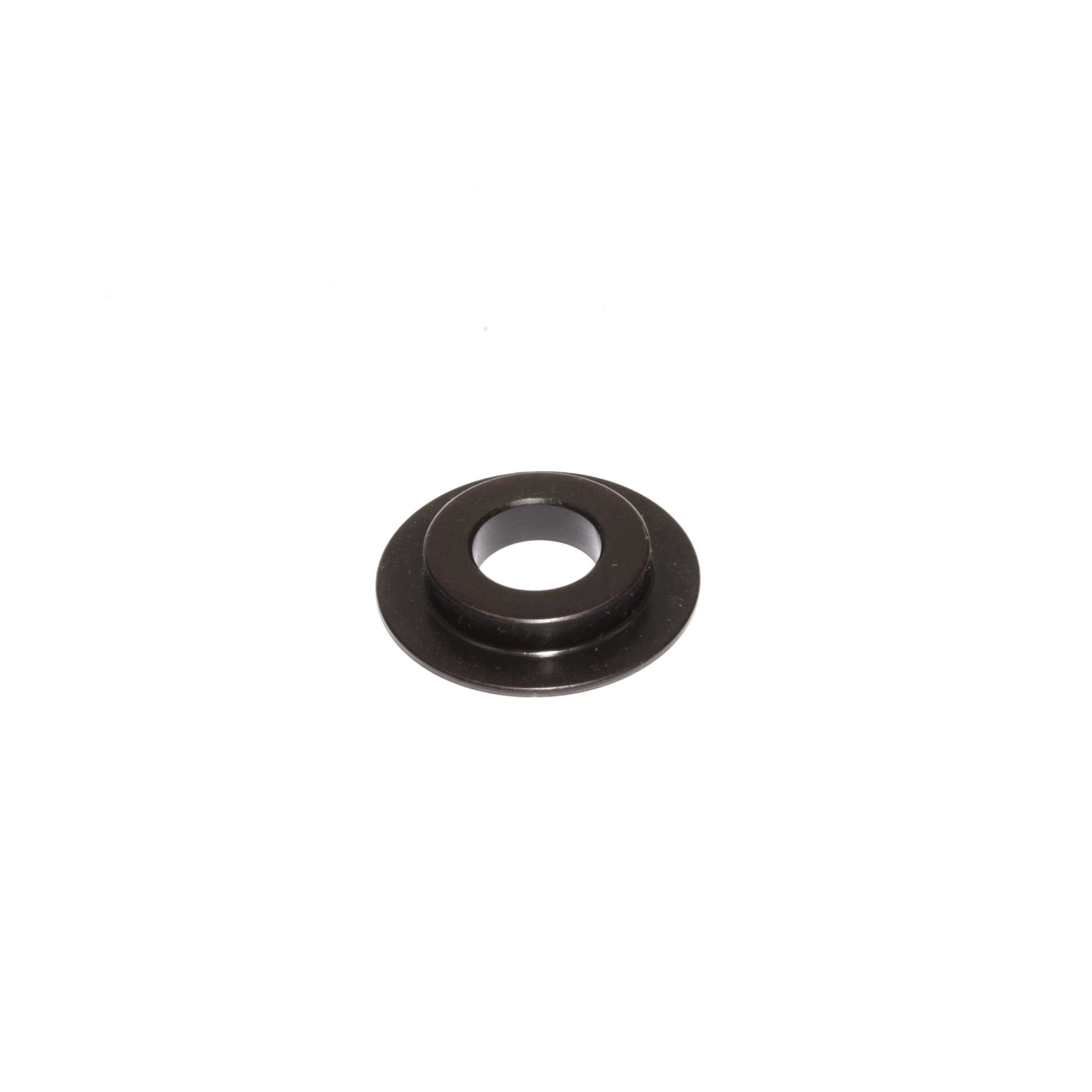

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4693 seat's 1.300" OD works well with our 26981 beehive valve springs in .570" OD guide applications.

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4705 seat's 1.300" OD works well with our 26915 and 26918 Beehive valve springs in .570" OD Guide applications.

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4863 features a 1.300" OD and a .570" ID.

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4683 seat's 1.300" OD works well with our valve springs in ." guide applications.

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4731 features a 1.340" OD and a .570" ID that works well with our 26921 and 26926 dual valve springs.

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4868 features a 1.350" OD and a .515" ID.

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4869 features a 1.350" OD and a .515" ID.

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4712 features a 1.400" OD and a .520" ID.

this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The 4667 seat's 1.420" OD works well with our 7256 conical spring.
