Auxiliary Light Wiring

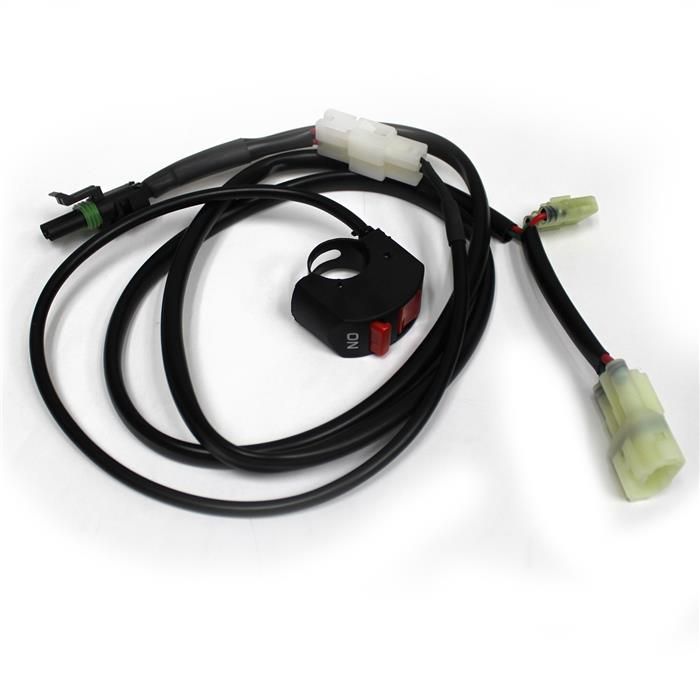

Headlight Wiring Harness - '09 CRF450R (For Squadron/S2 Lights)

• This harness is only designed to run a headlight.

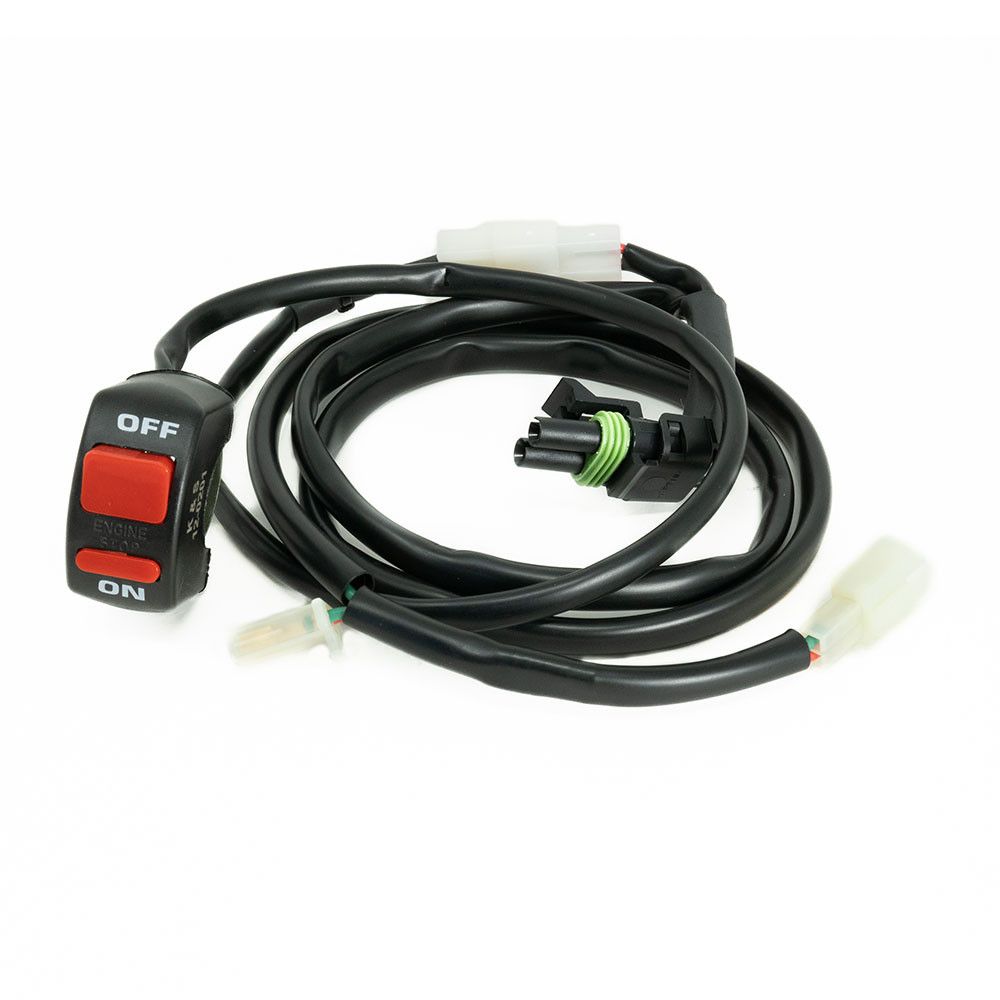

Headlight Wiring Harness - '13-16 CRF250R/CRF450R (For Squadron/S2 Lights)

• This harness is only designed to run a headlight.

Headlight Wiring Harness - '09-18 KX250F/KX450F (Includes Switch)

• This harness is only designed to run a headlight.

Headlight Lower Wiring Harness - '10-16 RMZ250; '08-16 RMZ450 (Includes Switch)

Headlight Wiring Harness - '10-13 YZ450F (Includes Switch)

• PLEASE NOTE: Depending on your model year, you may have to re-pin the capacitor and capacitor harness; we have provided the connectors to swap in this kit. This harness is only designed to run a headlight.

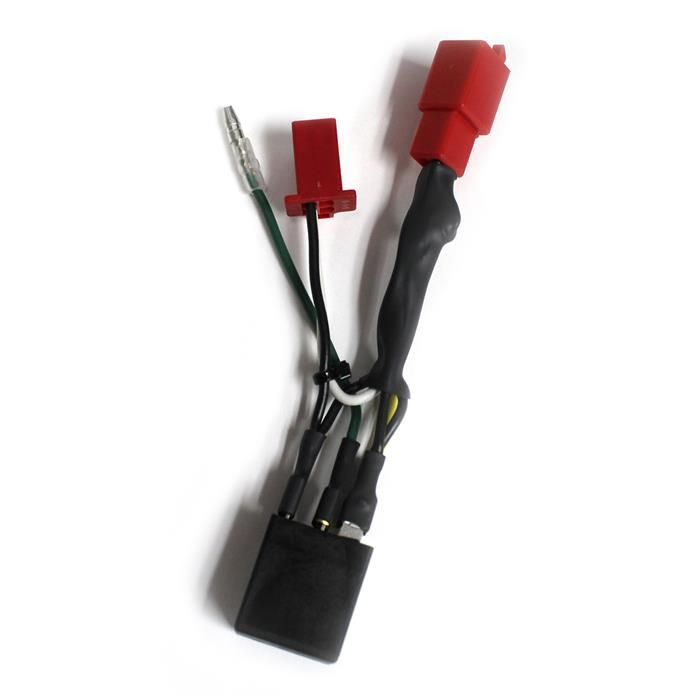

Hi-Low Headlight Wiring Harness - <Applicable KTM/Husqvarna Models> (For XL Pro/XL80 Lights)

• The hi-beam indicator on the bike will remain on even though the light will be running in low beam. This will not compromise any of the bikes existing wiring.

LP Controller Module

• Please note that if you have two LP Series lights you will need to purchase two of these harnesses.

LP Series Backlit Add-on Wiring Harness

• Please Note: This will not work with LP Series Sport Models.

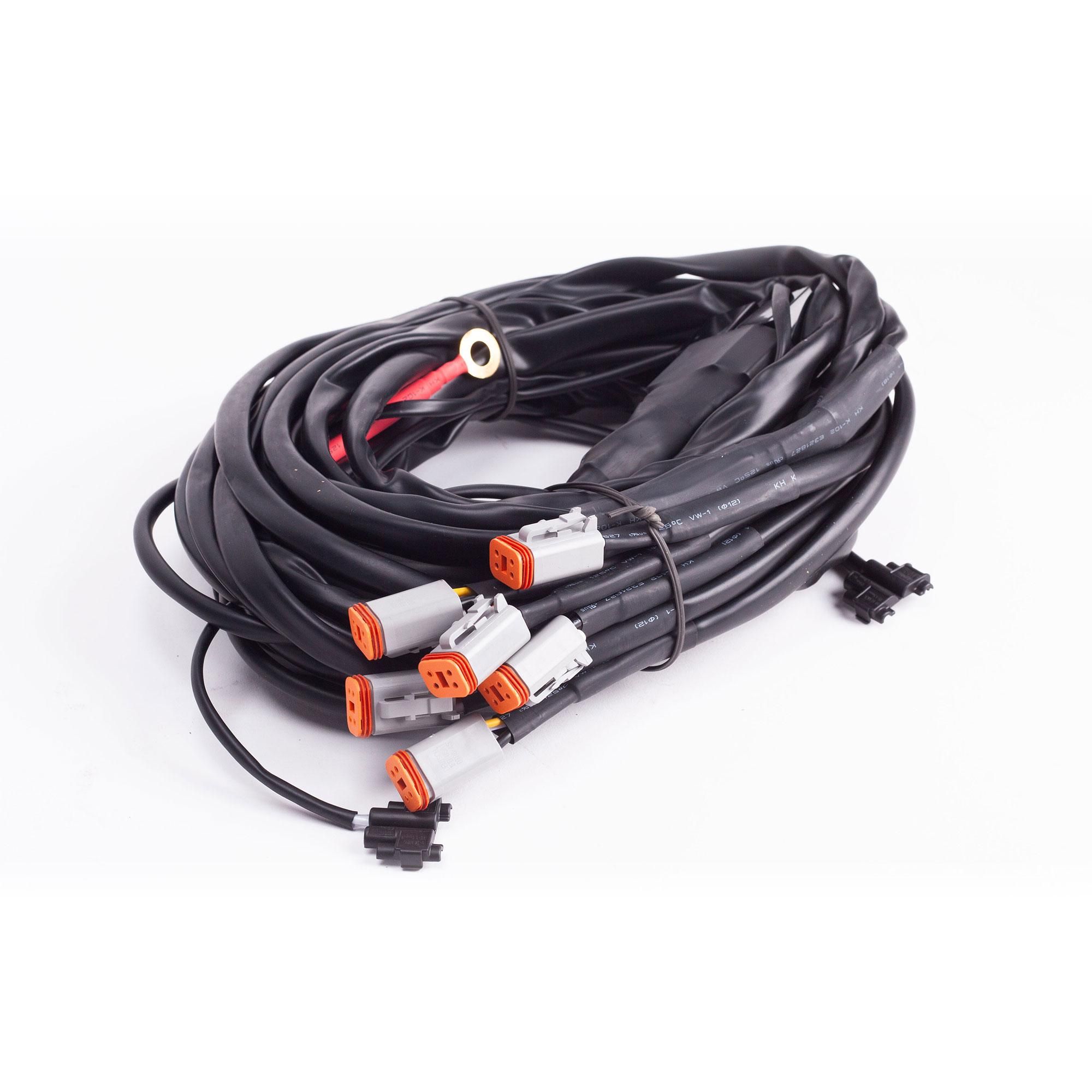

LP4 / Upfitter Wiring Harness - 6 Light Max

• It includes leads to wire into the stock vehicle upfitter auxiliary switches

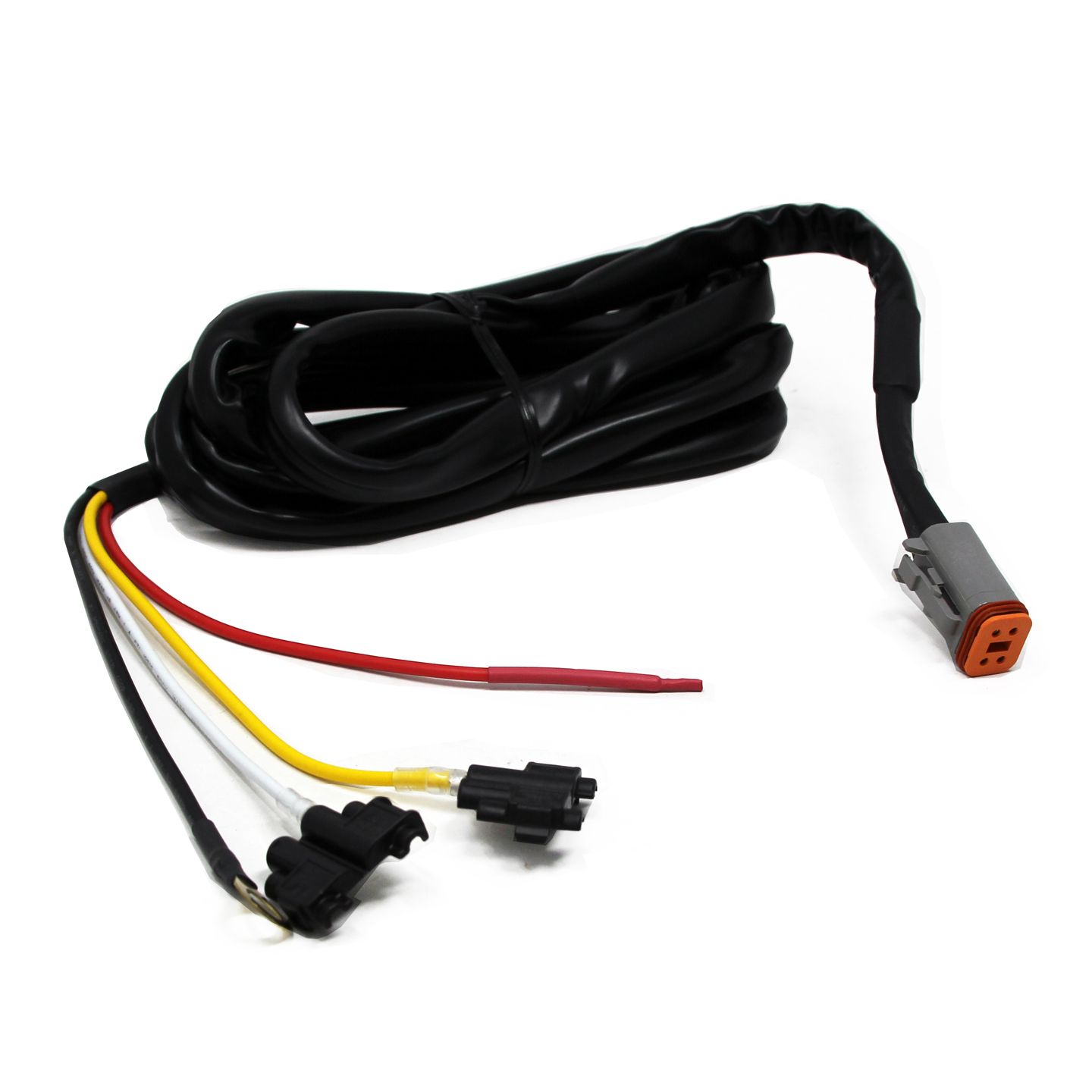

LP4 Upfitter Single Light Wiring Harness

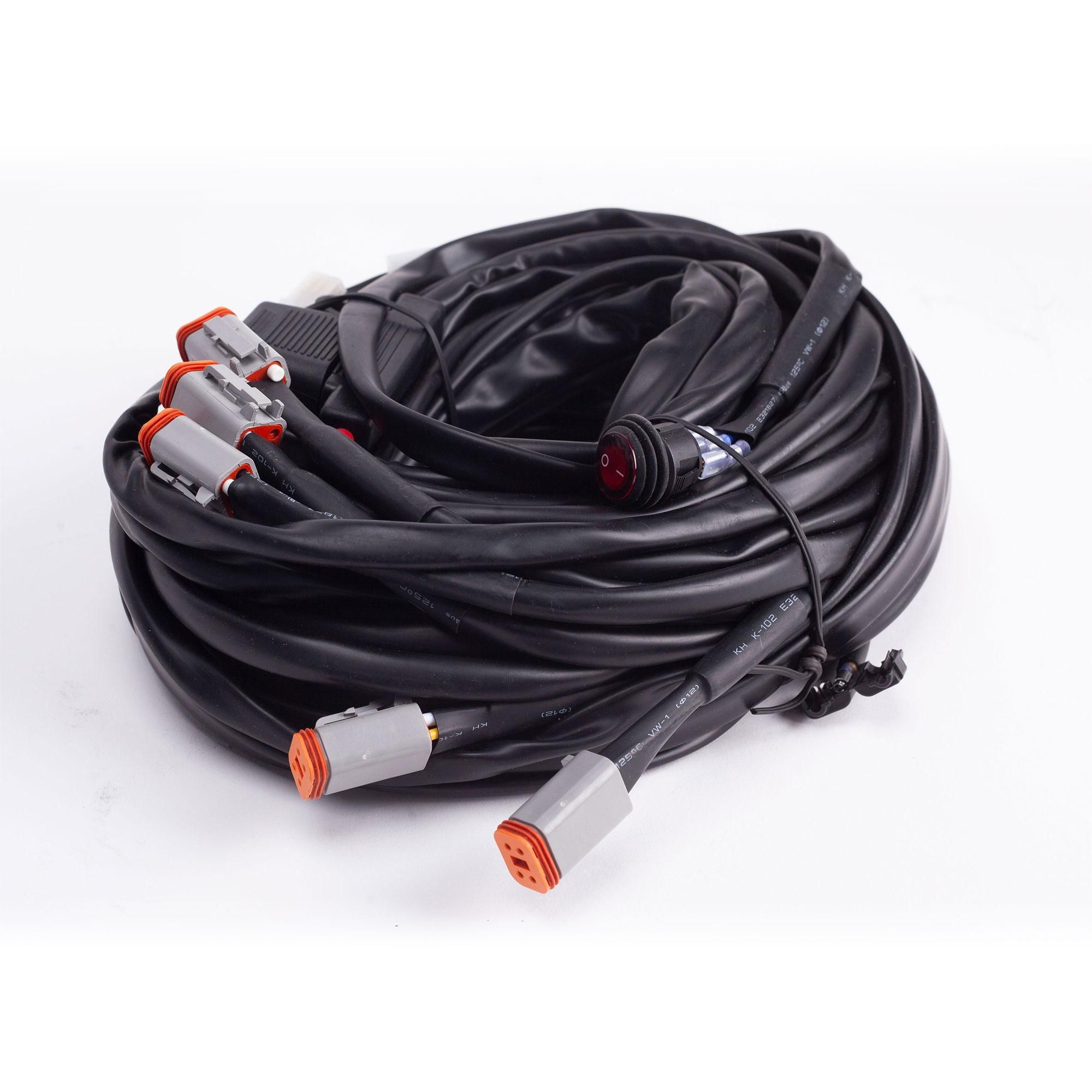

LP4 Wiring Harness - 6 Light Max

• It includes an on/off toggle switch to provide power to the lights

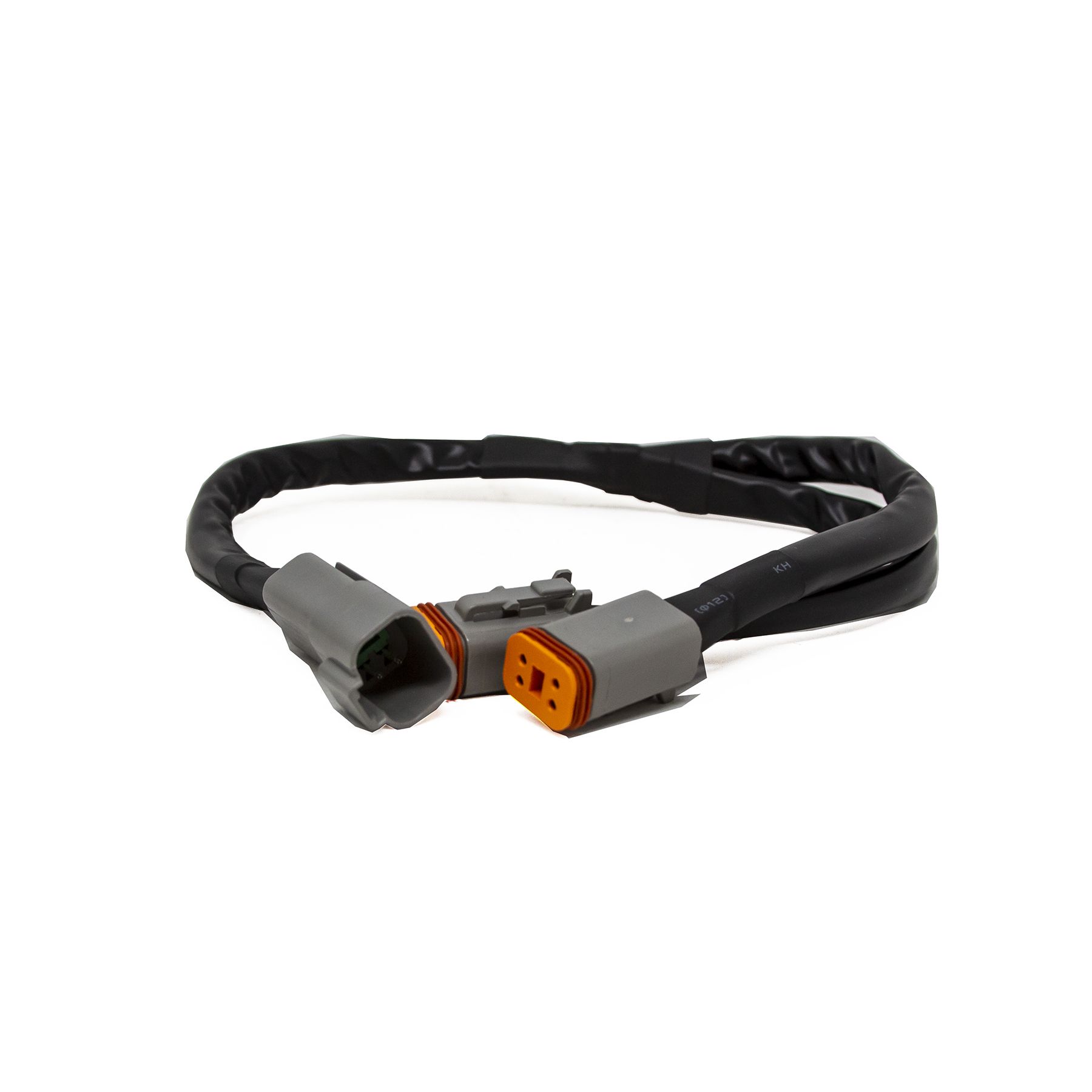

LP4/LP9 Sport Splitter Harness

• Controller module harness - draw dependent on controller capacity

LP6, LP4 / Upfitter Wiring Harness - 5 Light Max

• It includes leads to wire into the stock vehicle upfitter auxiliary switches

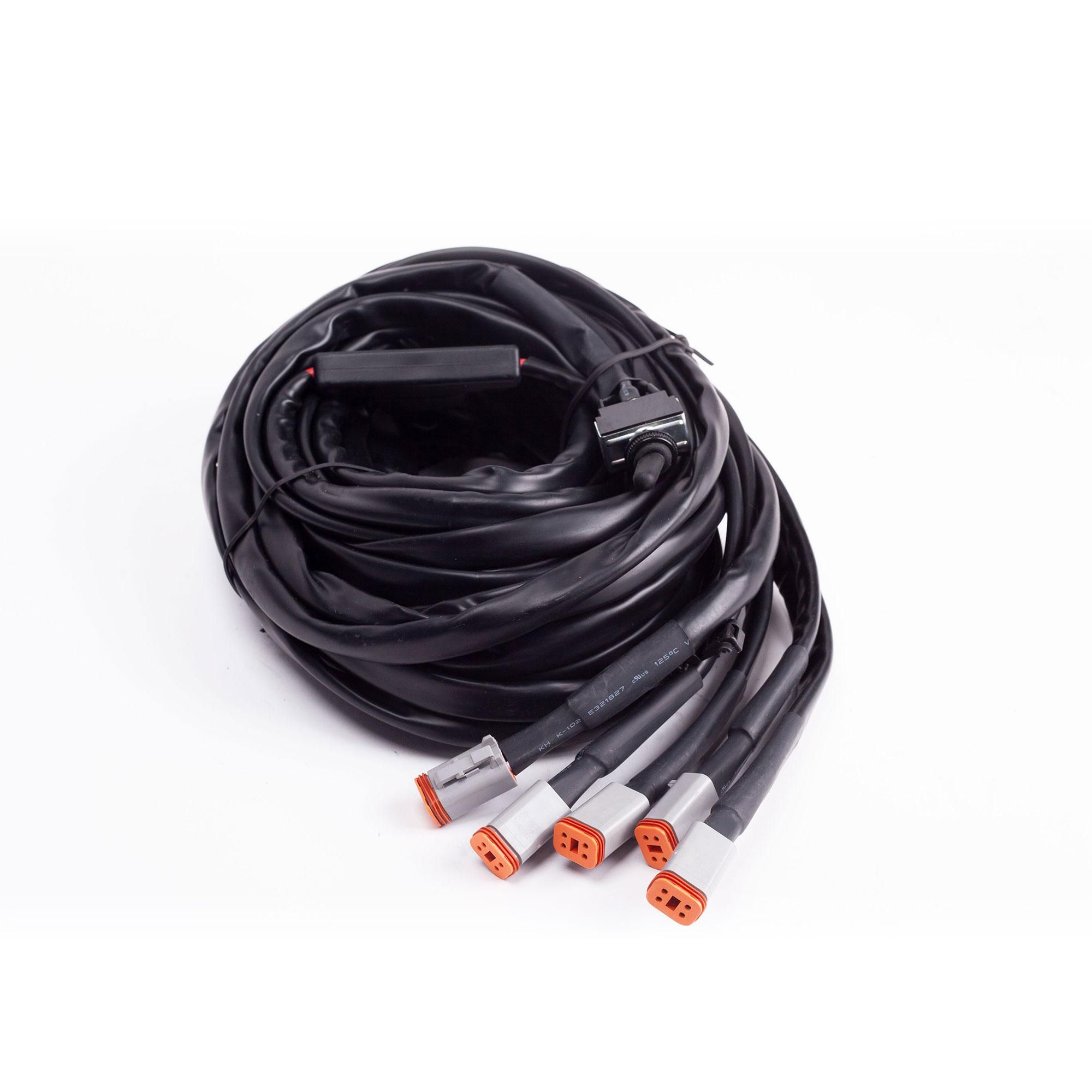

LP6, LP4 Wiring Harness - 5 Light Max

• It includes an on/off toggle switch to provide power to the lights

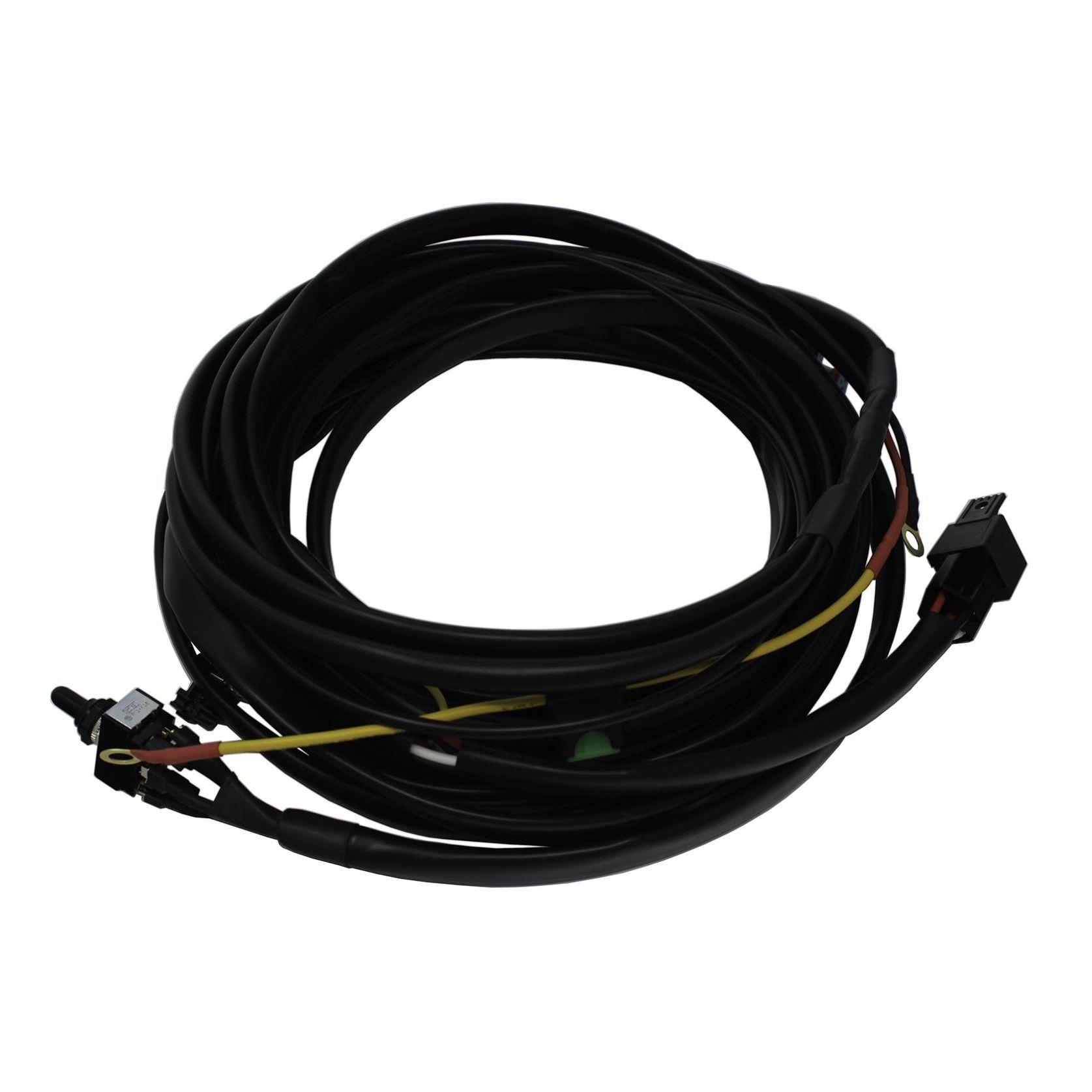

LP6/LP9 Pro 2-Light Max Wiring Harness

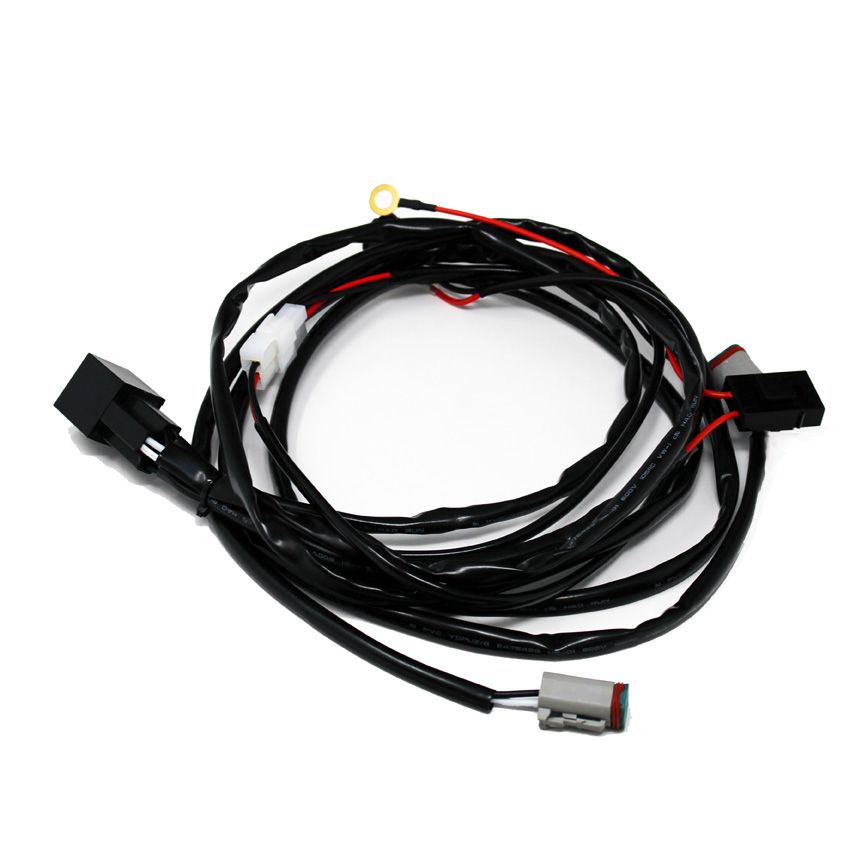

LP9 Sport Series Splitter 2-Light Max Wiring Harness
