Multi-Purpose Sensor

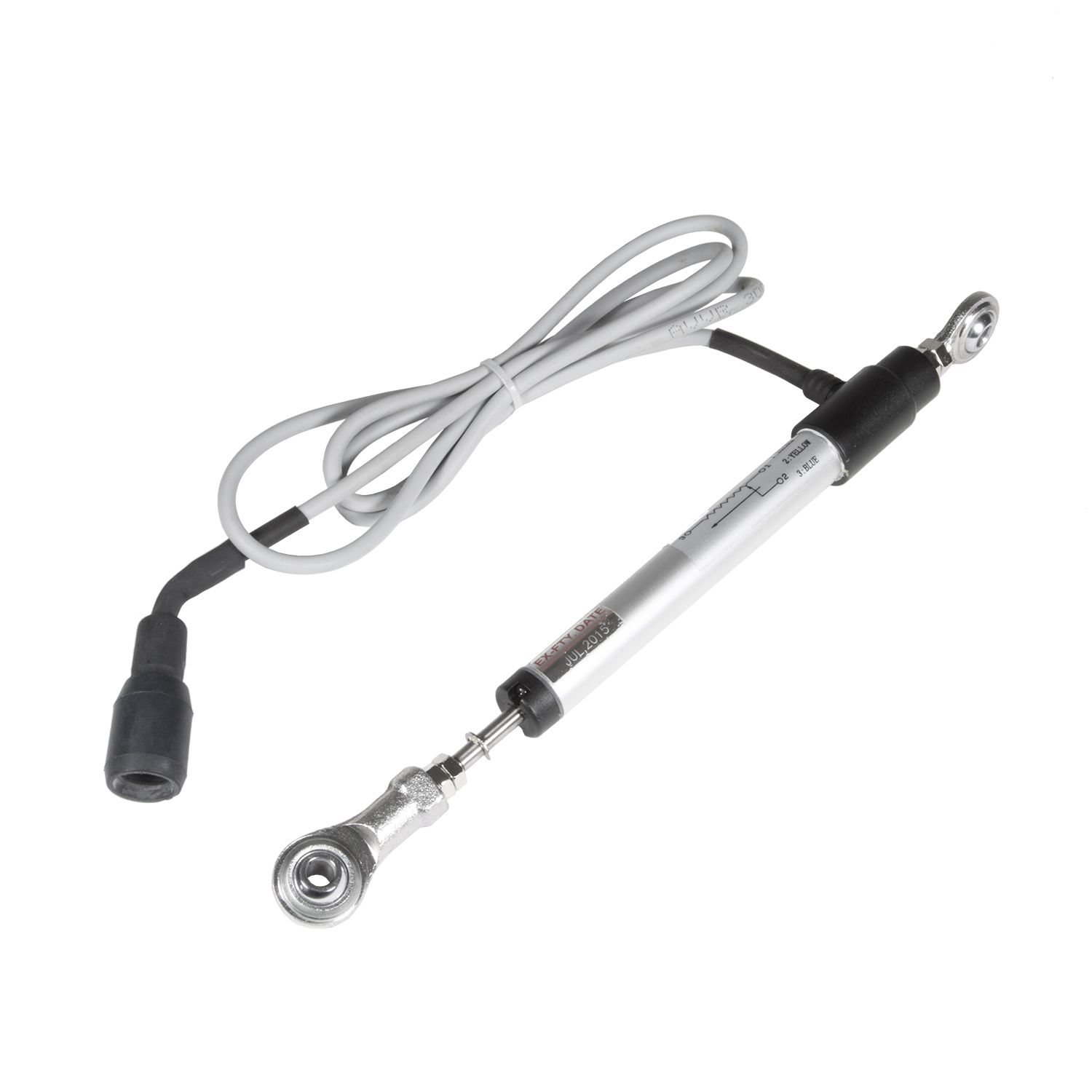

Stack Data Acquisition Series, Linear Potentiometer, Club, 100mm/4" (E.G. Suspension)

• Total Electrical Travel: 100 mm (4")
• Maximum Operating Speed: 5m/s
• Retracted Mounting Distance: 228 mm (9")
• Anodised Aluminium Housing, IP65 Sealed.
• Body Length: 189 mm (7.4"), Body Width: 13 mm (0.5")
• Spherical Bearing Mounting Hole Size: 5 mm (0.197")
• Pre-terminated cable with Mini Sure Seal Connector. Length: 1,000 mm (39")
• Linearity: +/- 0.1%
• Life: Greater than 25 million cycles
• Operating Temperature: -30 to +100 Degrees C (-22 to 212 Degrees F)

Stack Data Acquisition Series, Linear Potentiometer, Club, 150mm/6" (E.G. Suspension)

• Total Electrical Travel: 150 mm (6")
• Maximum Operating Speed: 5m/s
• Retracted Mounting Distance: 278 mm (11")
• Anodised Aluminium Housing, IP65 Sealed.
• Body Length: 239 mm (9.4"), Body Width: 13 mm (0.5")
• Spherical Bearing Mounting Hole Size: 5 mm (0.197")
• Pre-terminated cable with Mini Sure Seal Connector. Length: 1,000 mm (39")
• Linearity: +/- 0.05%
• Life: Greater than 25 million cycles
• Operating Temperature: -30 to +100 Degrees C (-22 to 212 Degrees F)

Stack Data Acquisition Series, Linear Potentiometer, Club, 200mm/8" (E.G. Suspension)

• Total Electrical Travel: 200 mm (8")
• Maximum Operating Speed: 5m/s
• Retracted Mounting Distance: 330 mm (13")
• Anodised Aluminium Housing, IP65 Sealed.
• Body Length: 291 mm (11.5"), Body Width: 13 mm (0.5")
• Spherical Bearing Mounting Hole Size: 5 mm (0.197")
• Pre-terminated cable with Mini Sure Seal Connector. Length: 1,000 mm (39")
• Linearity: +/- 0.05%
• Life: Greater than 25 million cycles
• Operating Temperature: -30 to +100 Degrees C (-22 to 212 Degrees F)

Stack Data Acquisition Series, Linear Potentiometer, Club, 50mm/2" (E.G. Suspension)

• Active Electrical Travel: 50 mm (2.0")
• Maximum Operating Speed: 5m/s
• Retracted Mounting Distance: 178 mm (7")
• Anodised Aluminium Housing, IP65 Sealed.
• Body Length: 139 mm (5.5"), Body Width: 13 mm (0.5")
• Spherical Bearing Mounting Hole Size: 5 mm (0.197")
• Pre-terminated cable with Mini Sure Seal Connector. Length: 1,000 mm (39")
• Linearity: +/- 0.1%
• Life: Greater than 25 million cycles
• Operating Temperature: -30 to +100 Degrees C (-22 to 212 Degrees F)

Stack Data Acquisition Series, Linear Potentiometer, Professional, 100mm/4" (E.G. Suspension)

• Total Electrical Travel: 100 mm (4")
• Maximum Operating Speed: 10m/s
• Retracted Mounting Distance: 248 mm (9.8")
• Anodised Aluminium Housing, IP67 Sealed.
• Body Length: 207.5 mm (8.2"), Body Width: 15 mm (0.6")
• Spherical Bearing Mounting Hole Size: 5 mm (0.197")
• Pre-terminated cable with Mini Sure Seal Connector. Length: 585mm (23")
• Linearity: +/- 0.1%
• Life: Greater than 25 million cycles
• Operating Temperature: -40 to +150 Degrees C (-40 to 300 Degrees F) and short term to 175 Degrees C (347 Degrees F)

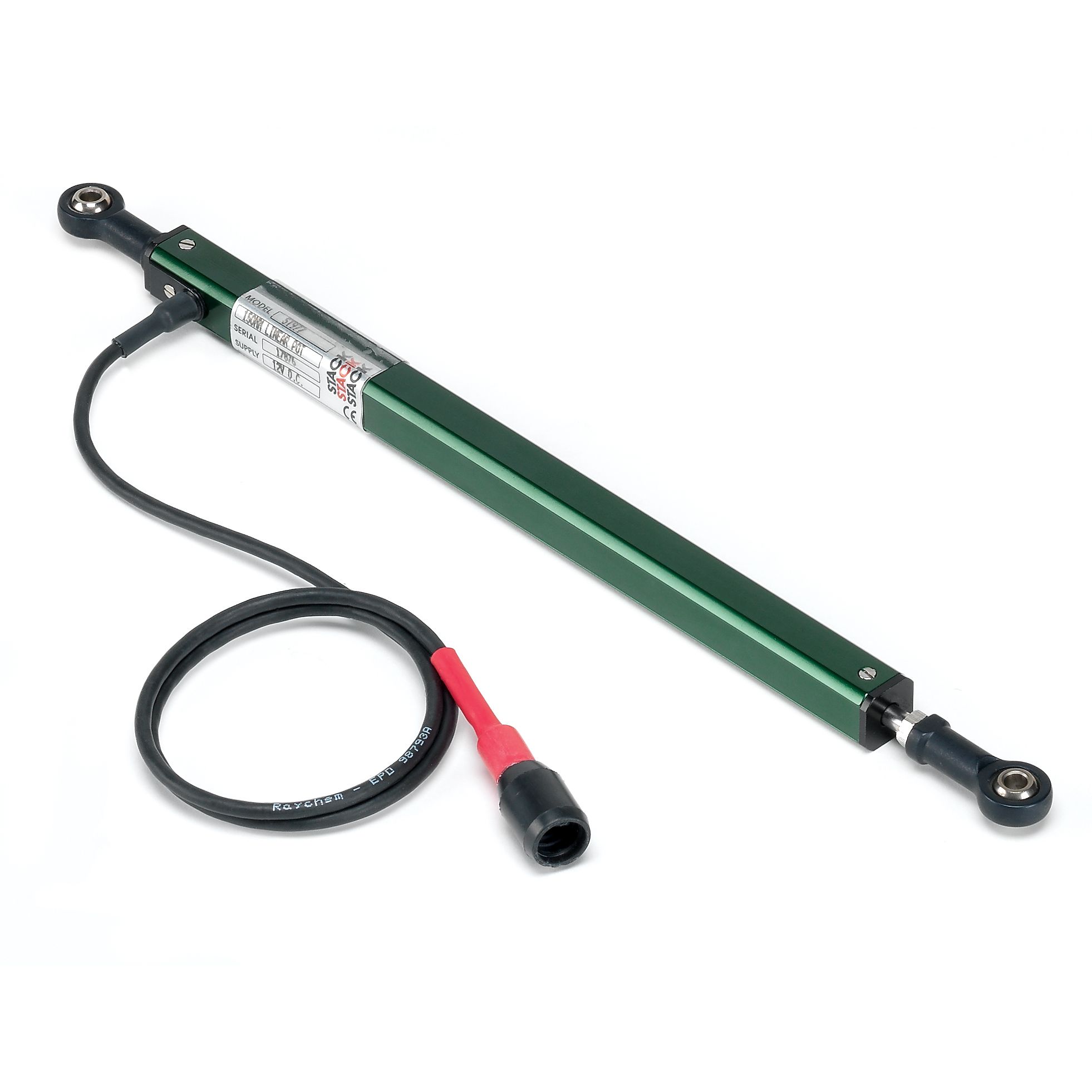

Stack Data Acquisition Series, Linear Potentiometer, Professional, 150mm/6" (E.G. Suspension)

• Total Electrical Travel: 150 mm (6")
• Maximum Operating Speed: 10m/s
• Retracted Mounting Distance: 298 mm (11.7")
• Anodised Aluminium Housing, IP67 Sealed.
• Body Length: 257.5 mm (10.1"), Body Width: 15 mm (0.6")
• Spherical Bearing Mounting Hole Size: 5 mm (0.197")
• Pre-terminated cable with Mini Sure Seal Connector. Length: 585mm (23")
• Linearity: +/- 0.1%
• Life: Greater than 25 million cycles
• Operating Temperature: -40 to +150 Degrees C (-40 to 300 Degrees F) and short term to 175 Degrees C (347 Degrees F)

Stack Data Acquisition Series, Linear Potentiometer, Professional, 200mm/8" (E.G. Suspension)

• Total Electrical Travel: 200 mm (8")
• Maximum Operating Speed: 10m/s
• Retracted Mounting Distance: 351 mm (13.8")
• Anodised Aluminium Housing, IP67 Sealed.
• Body Length: 310.5 mm (12.2"), Body Width: 15 mm (0.6")
• Spherical Bearing Mounting Hole Size: 5 mm (0.197")
• Pre-terminated cable with Mini Sure Seal Connector. Length: 585mm (23")
• Linearity: +/- 0.1%
• Life: Greater than 25 million cycles
• Operating Temperature: -40 to +150 Degrees C (-40 to 300 Degrees F) and short term to 175 Degrees C (347 Degrees F)

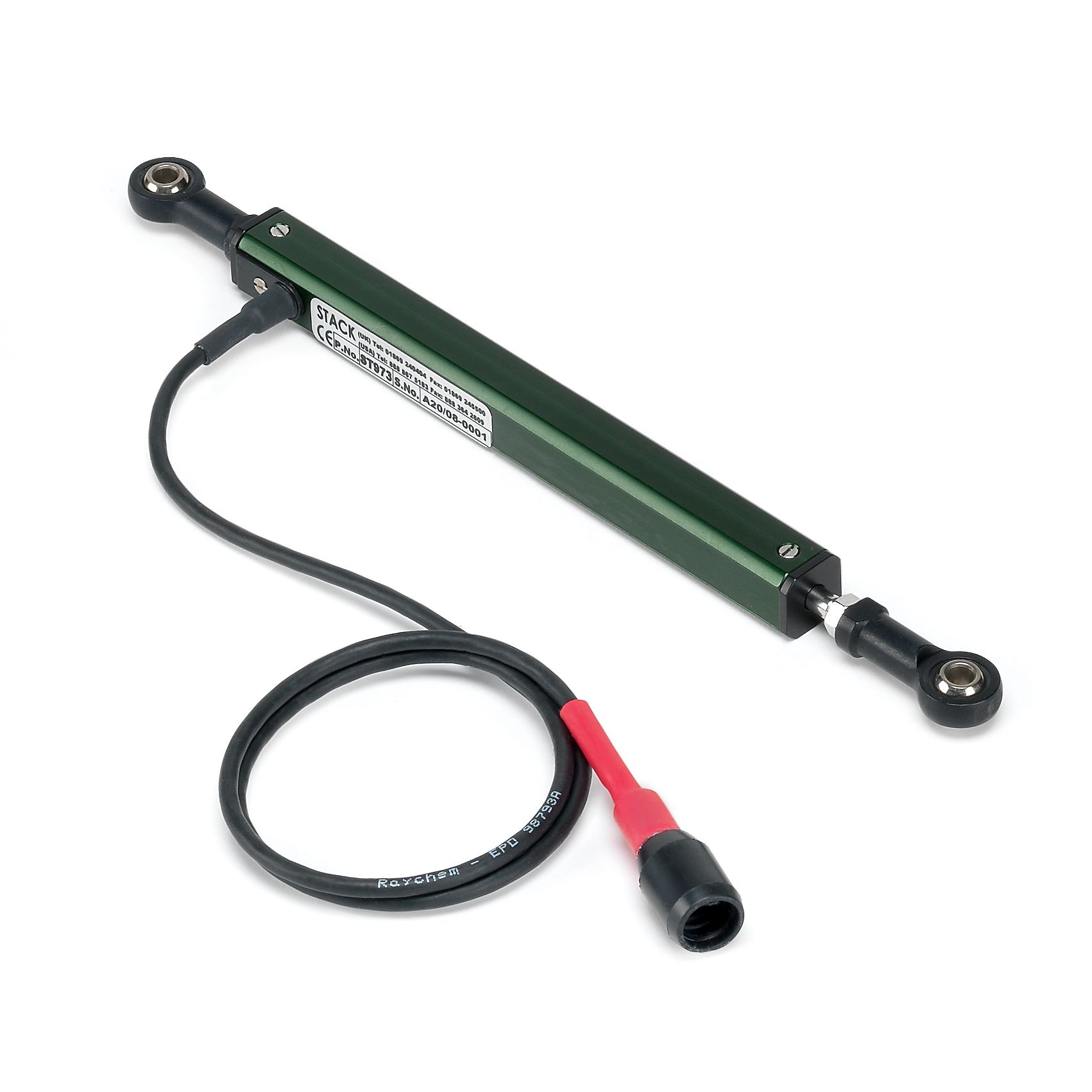

Stack Data Acquisition Series, Linear Potentiometer, Professional, 50mm/2" (E.G. Suspension)

• Active Electrical Travel: 50 mm (2.0")
• Maximum Operating Speed: 10m/s
• Retracted Mounting Distance: 198 mm (7.8")
• Anodised Aluminium Housing, IP67 Sealed.
• Body Length: 157.5 mm (6.2"), Body Width: 15 mm (0.6")
• Spherical Bearing Mounting Hole Size: 5 mm (0.197")
• Pre-terminated cable with Mini Sure Seal Connector. Length: 585mm (23")
• Linearity: +/- 0.2%
• Life: Greater than 25 million cycles
• Operating Temperature: -40 to +150 Degrees C (-40 to 300 Degrees F) and short term to 175 Degrees C (347 Degrees F)

Stack Data Acquisition Series, Rotary Potentiometer 360Deg (E.G.Steering)

Stack Instruments Series, Wheel Speed Pulse Amplifier
