Drive Shaft Pinion Yoke

10 Bolt 1310 Pinion Yoke. Hub is 1.940 Inches, Spline is 1.312 , Through the Hole is 1.150 U-Bolt Style U-J C/L to End of Hub is 3.160 U-Bolt Style.

12 Bolt 1310 Pinion Yoke Strap Style. Hub is 1.739 Inches, Spline is 1.328, Through the Hole is 1.166 Strap Style U-J C/L to End of Hub is 2.850.

1410 Dana 60 Pinion Yoke. Hub is 1.873 Inches, Spline is 1.276 29, Through the Hole is 1.5 Strap Style.

205 Transfer Case Yoke 1310 CV Style. Hub is 1.875, Spline is 1.403 21, Through the Hole is 3.00 CV Style.

Cap is 1.188. Seal Surface is 1.880 Spline is 1.378 Diameter 31 Based on 32, 7.940 U-J C/L to End of Spline.

25 Spline Mustang 1310 1.5In. Seal Diameter.

8.8 Ford 1310 Pinion Yoke U-Bolt. U-Bolt Measures 1.666 Inches C/L to C/L.

Aluminum 1350 Pinion Yoke for GM 12 Bolt. Hub is 1.738 Inches, Spline is 1.298 , Through the Hole is 1.146 U-Bolt Style U-J C/L to End of Hub is 3.124.

Transfer Case Yoke. Hub is 2.125 Inches, Spline is 1.400 32, Through the Hole is 2.00 Strap Style.

OEM Quality Pinion Yoke. Hub is 1.550 Inches, Spline is 1.146 26, Through the Hole is 1.5 Strap Style.

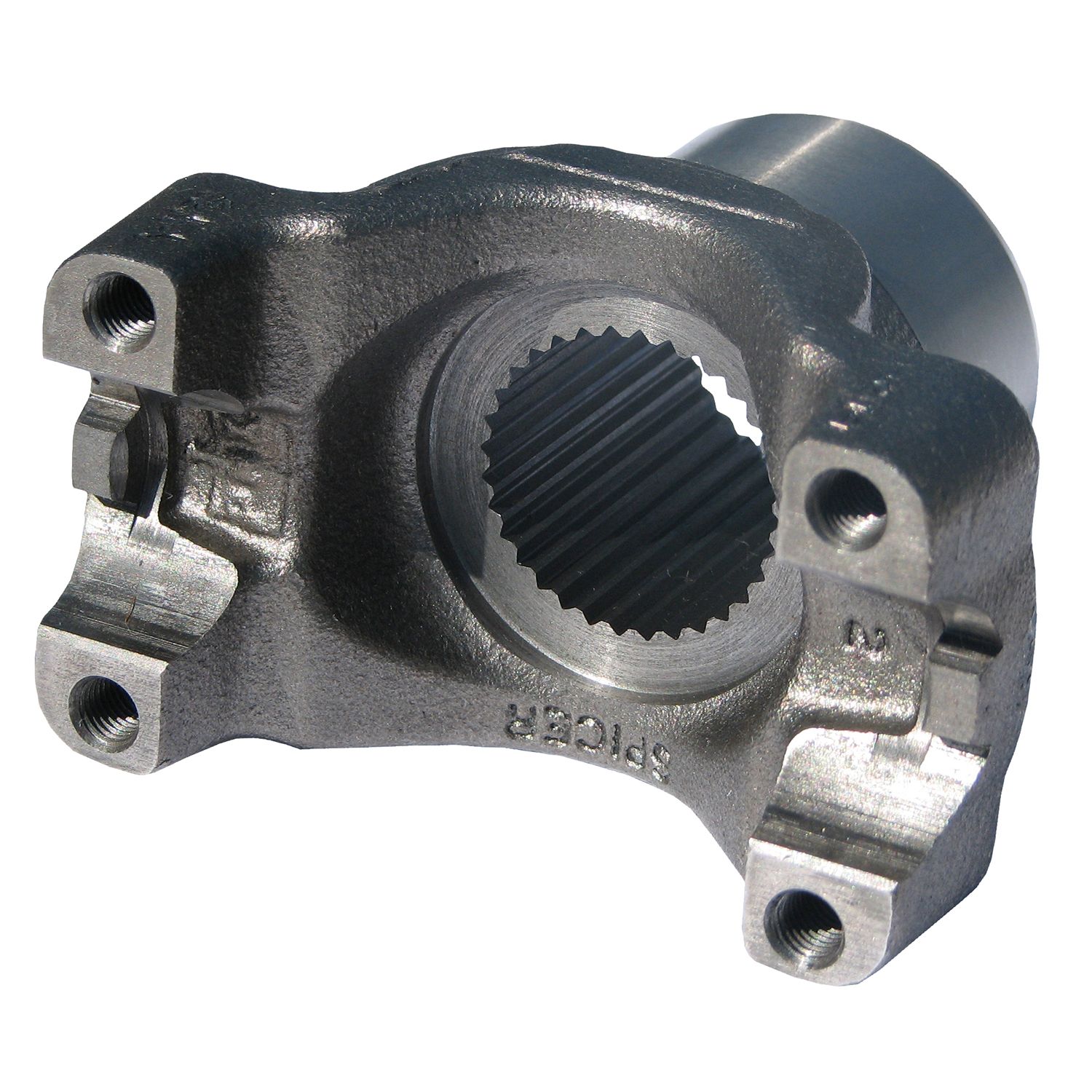

Dana 60 1310 Pinion Yoke. Hub is 1.500 Inches, Spline is 1.276 29 , Through the Hole is 1.5 U-Bolt Style.

Pinion Yoke 1310. Hub is 1.8740 Inches, Spline is 1.256 , Through the Hole is 1.514 U-Bolt Style.

Differential Yoke. Hub is 1.552 Inches, Spline is 1.026 23, Through the Hole is 1.5 Strap Style.

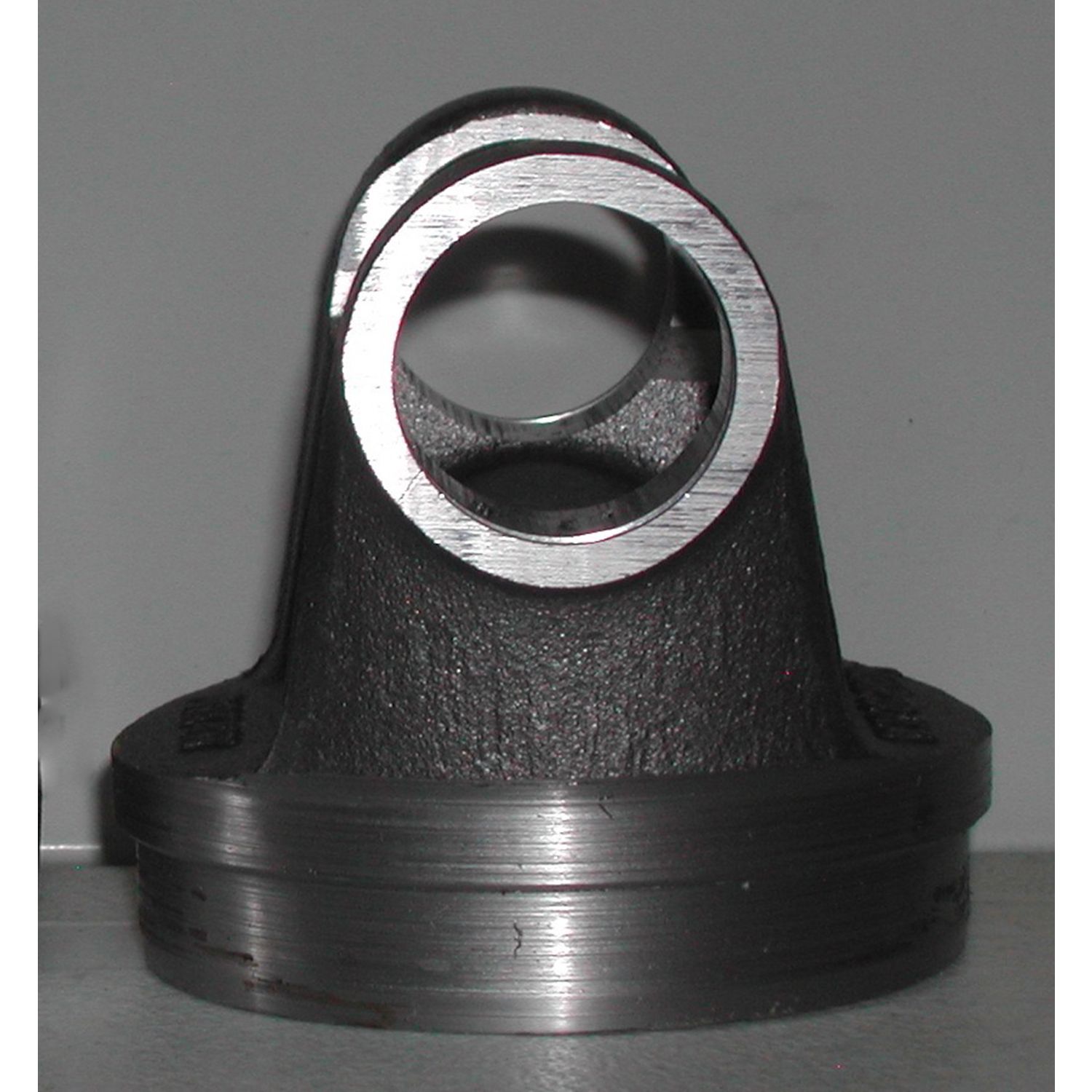

Drive Shaft Yoke. 1350 Series Tube Yoke for 3.5 .095 Wall Tubes.

Ford 8.8 1350 Pinion Yoke Chromoly for Ford 8.8. Hub is 1.815 Inches, 28 Spline is 1.219 , Through the Hole is 2.244 U-Bolt Style U-J C/L to End of Hub is 4.125.

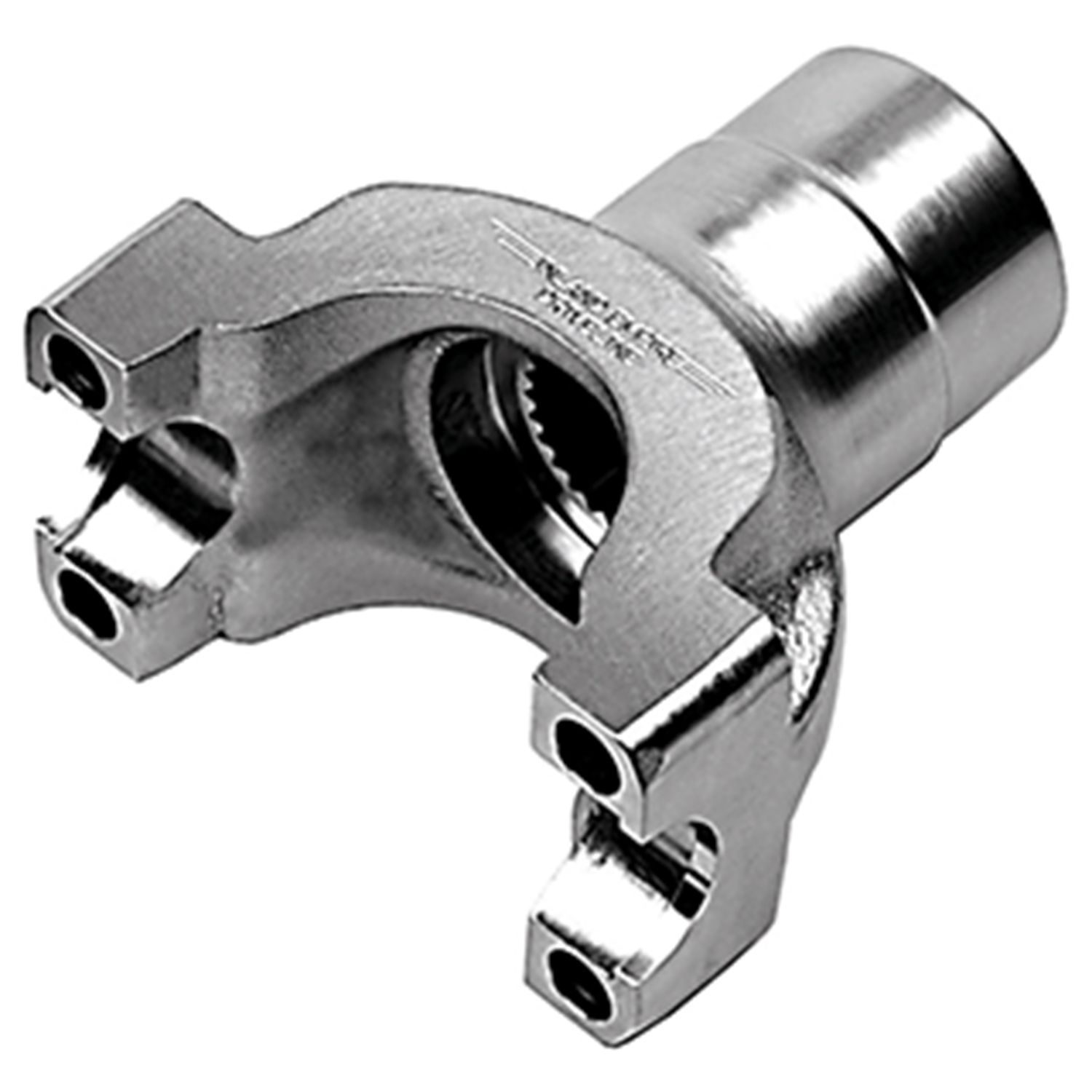

Forged 1350 Pinion Yoke Chromoly. Forged 1350 Pinion Yoke Chromoly. Hub is 2.125 Inches, Spline is 1.202 , Through the Hole is 1.993 U-Bolt Style U-J C/L to End of Hub Is3.875.
