Electronic Multi-Purpose Gauge

Stack Instruments Series, Multi-Function Dash Display Logger (Mfd), Black, 0-6-13K RPM

• Fully configurable LCD and Intelligent Alarm System via" drag & drop" setup on PC equipped with included DataPro Designer Software
• Sealed (IP67) Carbon Composite Casing
• Includes powerful DataPro analysis software
• Integrated data logging - 32Mb of memory, and user selectable channel recording frequencies of up to 200Hz (200 samples per second) with 10 bit resolution (16 bit digital inputs optional)
• Steering and Lateral G, Track Map shows the actual track position relating to the cursor position on the Charts, and more!
• with a maximum system sample rate of 4000 samples per second for a total of 20 channels able to be recorded at maximum frequencies for extremely detailed data analysis.
• Track Mapping from recorded vehicle data (inertial or GPS)
• Fully customizable and user configurable Layouts, Layout Manager allows Layouts to be grouped together for different tasks and users
• Docking Panes feature means that a data analysis pane is never hidden
• Lap Normalization ensures all laps overlay accurately for data comparison
• Toggle between Distance and Time base Charting, Overlay Chart data from different, or same, run, Rolling Lap Time Chart and Report, Timeline and Corner Radius Charts, Overlay different types of parameter on the same chart e.g.
• 14 standard inputs - 1x RPM, 3x Flexible Digital / Analog, 5x Analog, 1x LAP, 1x Battery Voltage, 3x Inboard Accelerometers
• Pre-configured layouts to help novice users
• Logbook feature for organized digital record keeping about vehicle setup (tire pressures & compounds, damper settings, temperature and weather conditions, etc.)
• Integrated switches and alarm lights - Internal Warn and Shift Light Lamps with external outputs and included external push botton driver controls
• Optionally enable ECU Canbus data stream and GPS mapping functions with purchase of adapter harnesses sold separately.
• Expandable up to 45 channels of data. Additional input expansions sold separately.
• Complete system" ready out of the box" including wiring harness, lap time receiver, speed sensor, USB interface and DataPro software.
• Professional Wiring Loom with Military Connector

Stack Instruments Series, Multi-Function Dash Display Logger (Mfd), Black, 0-8K RPM

• Fully configurable LCD and Intelligent Alarm System via" drag & drop" setup on PC equipped with included DataPro Designer Software
• Sealed (IP67) Carbon Composite Casing
• Integrated data logging - 32Mb of memory, and user selectable channel recording frequencies of up to 200Hz (200 samples per second) with 10 bit resolution (16 bit digital inputs optional)
• Includes powerful DataPro analysis software
• with a maximum system sample rate of 4000 samples per second for a total of 20 channels able to be recorded at maximum frequencies for extremely detailed data analysis.
• Steering and Lateral G, Track Map shows the actual track position relating to the cursor position on the Charts, and more!
• Track Mapping from recorded vehicle data (inertial or GPS)
• Fully customizable and user configurable Layouts, Layout Manager allows Layouts to be grouped together for different tasks and users
• Docking Panes feature means that a data analysis pane is never hidden
• Lap Normalization ensures all laps overlay accurately for data comparison
• Toggle between Distance and Time base Charting, Overlay Chart data from different, or same, run, Rolling Lap Time Chart and Report, Timeline and Corner Radius Charts, Overlay different types of parameter on the same chart e.g.
• 14 standard inputs - 1x RPM, 3x Flexible Digital / 0-5V Analog, 5x 0-5V Analog, 1x LAP, 1x Battery Voltage, 3x Inboard Accelerometers
• Pre-configured layouts to help novice users
• Logbook feature for organized digital record keeping about vehicle setup (tire pressures & compounds, damper settings, temperature and weather conditions, etc.)
• Integrated switches and alarm lights - Internal Warn and Shift Light Lamps with external outputs and included external push botton driver controls
• Optionally enable ECU Canbus data stream and GPS mapping functions with purchase of adapter harnesses sold separately.
• Expandable up to 45 channels of data. Additional input expansions sold separately.
• Complete system" ready out of the box" including wiring harness, lap time receiver, speed sensor, USB interface and DataPro software.
• Professional Wiring Loom with Military Connector

Stack Instruments Series, Multi-Function Dash Display Logger (Mfd), White, 0-8K RPM

• Fully configurable LCD and Intelligent Alarm System via" drag & drop" setup on PC equipped with included DataPro Designer Software
• Sealed (IP67) Carbon Composite Casing
• Includes powerful DataPro analysis software
• Integrated data logging - 32Mb of memory, and user selectable channel recording frequencies of up to 200Hz (200 samples per second) with 10 bit resolution (16 bit digital inputs optional)
• Steering and Lateral G, Track Map shows the actual track position relating to the cursor position on the Charts, and more!
• with a maximum system sample rate of 4000 samples per second for a total of 20 channels able to be recorded at maximum frequencies for extremely detailed data analysis.
• Track Mapping from recorded vehicle data (inertial or GPS)
• Fully customizable and user configurable Layouts, Layout Manager allows Layouts to be grouped together for different tasks and users
• Docking Panes feature means that a data analysis pane is never hidden
• Lap Normalization ensures all laps overlay accurately for data comparison
• Toggle between Distance and Time base Charting, Overlay Chart data from different, or same, run, Rolling Lap Time Chart and Report, Timeline and Corner Radius Charts, Overlay different types of parameter on the same chart e.g.
• 14 standard inputs - 1x RPM, 3x Flexible Digital / Analog, 5x Analog, 1x LAP, 1x Battery Voltage, 3x Inboard Accelerometers
• Pre-configured layouts to help novice users
• Logbook feature for organized digital record keeping about vehicle setup (tire pressures & compounds, damper settings, temperature and weather conditions, etc.)
• Integrated switches and alarm lights - Internal Warn and Shift Light Lamps with external outputs and included external push botton driver controls
• Optionally enable ECU Canbus data stream and GPS mapping functions with purchase of adapter harnesses sold separately.
• Expandable up to 45 channels of data. Additional input expansions sold separately.
• Complete system" ready out of the box" including wiring harness, lap time receiver, speed sensor, USB interface and DataPro software.
• Professional Wiring Loom with Military Connector

Stack Instruments Series, Pro Lcd Motorsport Display Logger, W/ Harness (Ip65)

• 7" (17.78 Cm) Tft Sunlight Visible Colour Lcd Panel Supports Multiple User Configured Rich Graphic Pages Including Uses Like Tuning, Warm Up, Qualifying, Race, And More!
• Data exchange and configuration via ethernet or USB
• Product Dimensions - 211mm Wide x 132mm High x 35mm Deep (excluding connector)
• 16 User configurable multi-color alarm LEDs with on-screen visual and text warnings
• CANbus enabled data comms compatible with a wide variety of aftermarket EFI systems
• 12 configurable analog sensor inputs (0-5V, digital, or resistive) standard, expandable via optional sensor modules.
• 4 Configurable I/O for driver control switches and alarm triggered outputs.
• Professional grade datalogging - user configurable sampling rates up to 1kHz, support for up to 128 total channels), immense memory capacity, and Professional Edition DataPro software enabled standard out of the box.
• Inboard tri-axis accelerometer and optional GPS NEMA input provide comprehensive data regarding vehicle dynamics for post race analysis including track mapping and lap timing functions.
• IP65 sealed for protection against the elements.

Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, & Fuel Pressure.

• Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, & Fuel Pressure.
• IP67 sealed
• Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
• Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
• Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
• Display features digital values for vehicle parameters and configurable text warning messages
• Built-in warning and shift light LEDs
• Optional shift light output, single stage or progressive shift light
• Configurable for engines from 1-12 cylinders
• Programmable Speed input

Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, & Fuel Pressure.

• Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, & Fuel Pressure.
• IP67 sealed
• Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
• Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
• Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
• Display features digital values for vehicle parameters and configurable text warning messages
• Built-in warning and shift light LEDs
• Optional shift light output, single stage or progressive shift light
• Configurable for engines from 1-12 cylinders
• Programmable Speed input

Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, & Fuel Pressure.

• Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, & Fuel Pressure.
• IP67 sealed
• Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
• Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
• Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
• Display features digital values for vehicle parameters and configurable text warning messages
• Built-in warning and shift light LEDs
• Optional shift light output, single stage or progressive shift light
• Configurable for engines from 1-12 cylinders
• Programmable Speed input

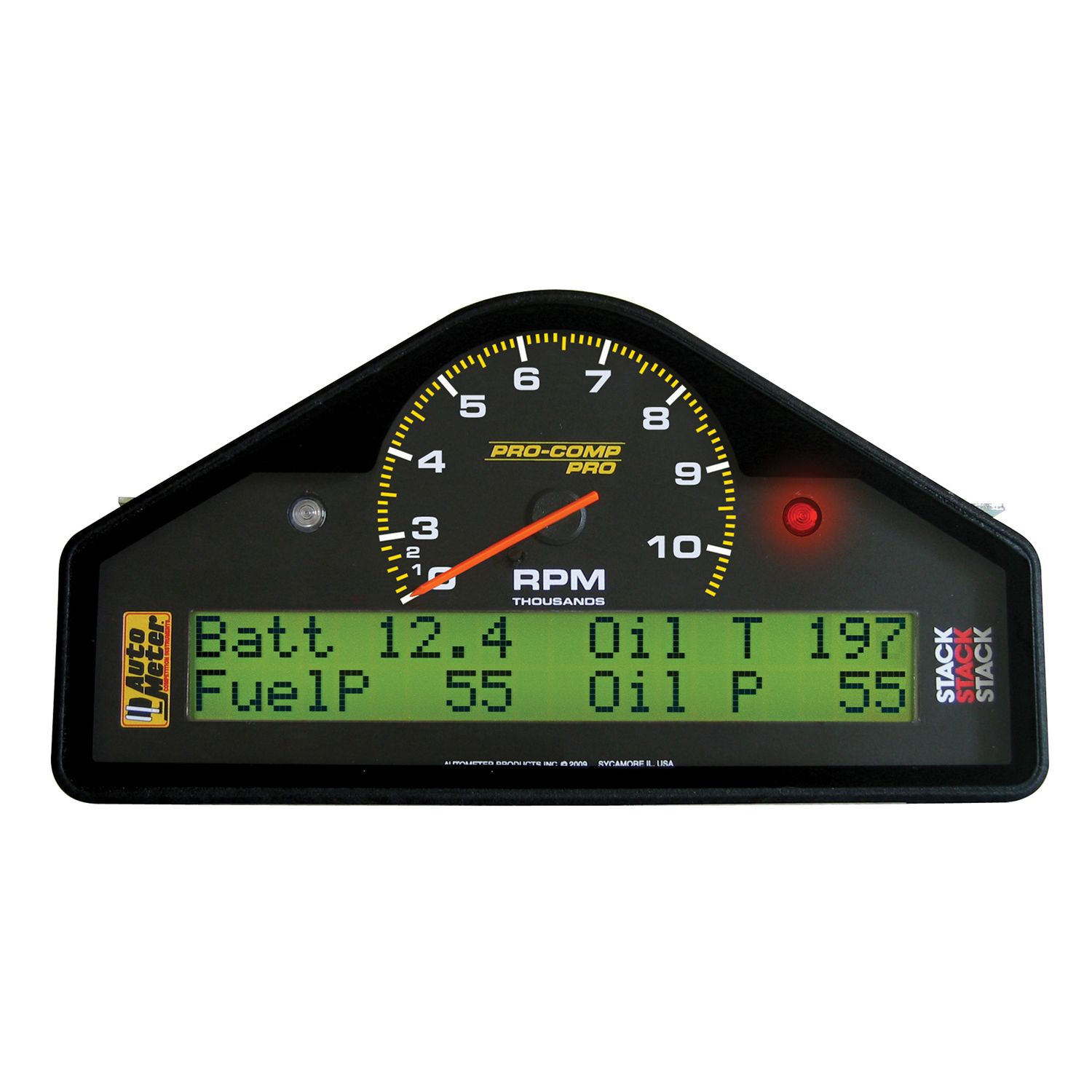

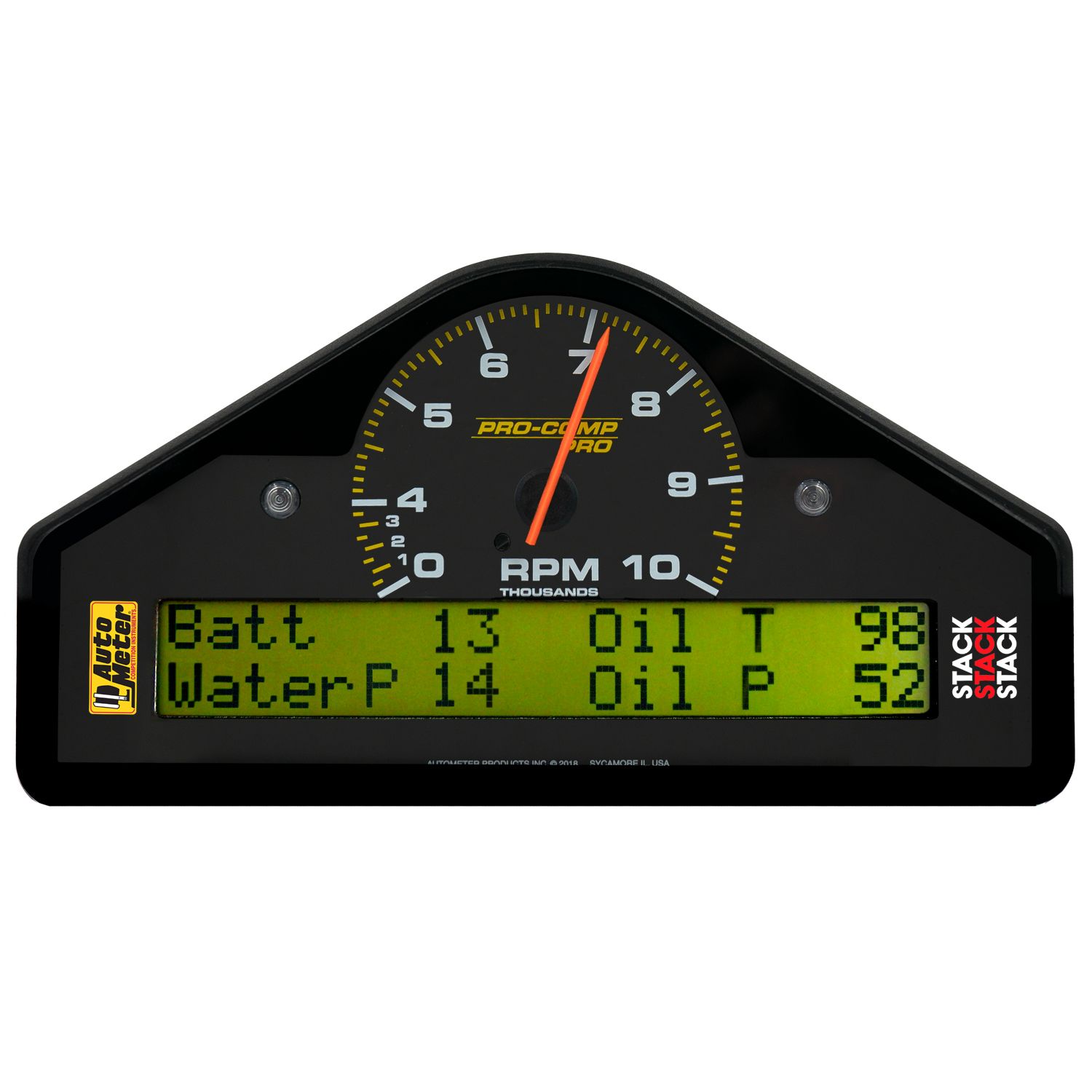

Stack Instruments Series, Race Display, Pre-Configured, Black, 0-3-10.5K RPM (Bar, Degree C, Km/H)

• Intelligent Alarm System
• Sealed (IP67) Carbon Composite Casing
• Sensors Included
• Displays: RPM, Oil Pressure and Temperature, Water Temperature, Fuel Pressure, and Battery Voltage. Speed optional with purchase of speed sensor separately.
• Ideal for naturally aspirated race cars
• External Shift & Alarm Light Outputs - 5 Stage External Sequential Shift Light Option
• Combination of Analog & Digital Display Types
• Simultaneous display of up to 5 parameters
• Optional Lap Time, Predictive Lap Display, Corner and Straight Speeds
• Professional Wiring Loom with Military Connector

Stack Instruments Series, Race Display, Pre-Configured, Black, 0-3-10.5K RPM (PSI, Degree C, MPH)

• Intelligent Alarm System
• Sealed (IP67) Carbon Composite Casing
• Sensors Included
• Displays: RPM, Oil Pressure and Temperature, Water Temperature, Fuel Pressure, and Battery Voltage. Speed optional with purchase of speed sensor separately.
• Ideal for naturally aspirated race cars
• External Shift & Alarm Light Outputs - 5 Stage External Sequential Shift Light Option
• Combination of Analog & Digital Display Types
• Simultaneous display of up to 5 parameters
• Optional Lap Time, Predictive Lap Display, Corner and Straight Speeds
• Professional Wiring Loom with Military Connector

Stack Instruments Series, Race Display, Pre-Configured, Black, 0-3-10.5K RPM (PSI, Degree F, MPH)

• Intelligent Alarm System
• Sealed (IP67) Carbon Composite Casing
• Sensors Included
• Displays: RPM, Oil Pressure and Temperature, Water Temperature, Fuel Pressure, and Battery Voltage. Speed optional with purchase of speed sensor separately.
• Ideal for naturally aspirated race cars
• External Shift & Alarm Light Outputs - 5 Stage External Sequential Shift Light Option
• Combination of Analog & Digital Display Types
• Simultaneous display of up to 5 parameters
• Optional Lap Time, Predictive Lap Display, Corner and Straight Speeds
• Professional Wiring Loom with Military Connector

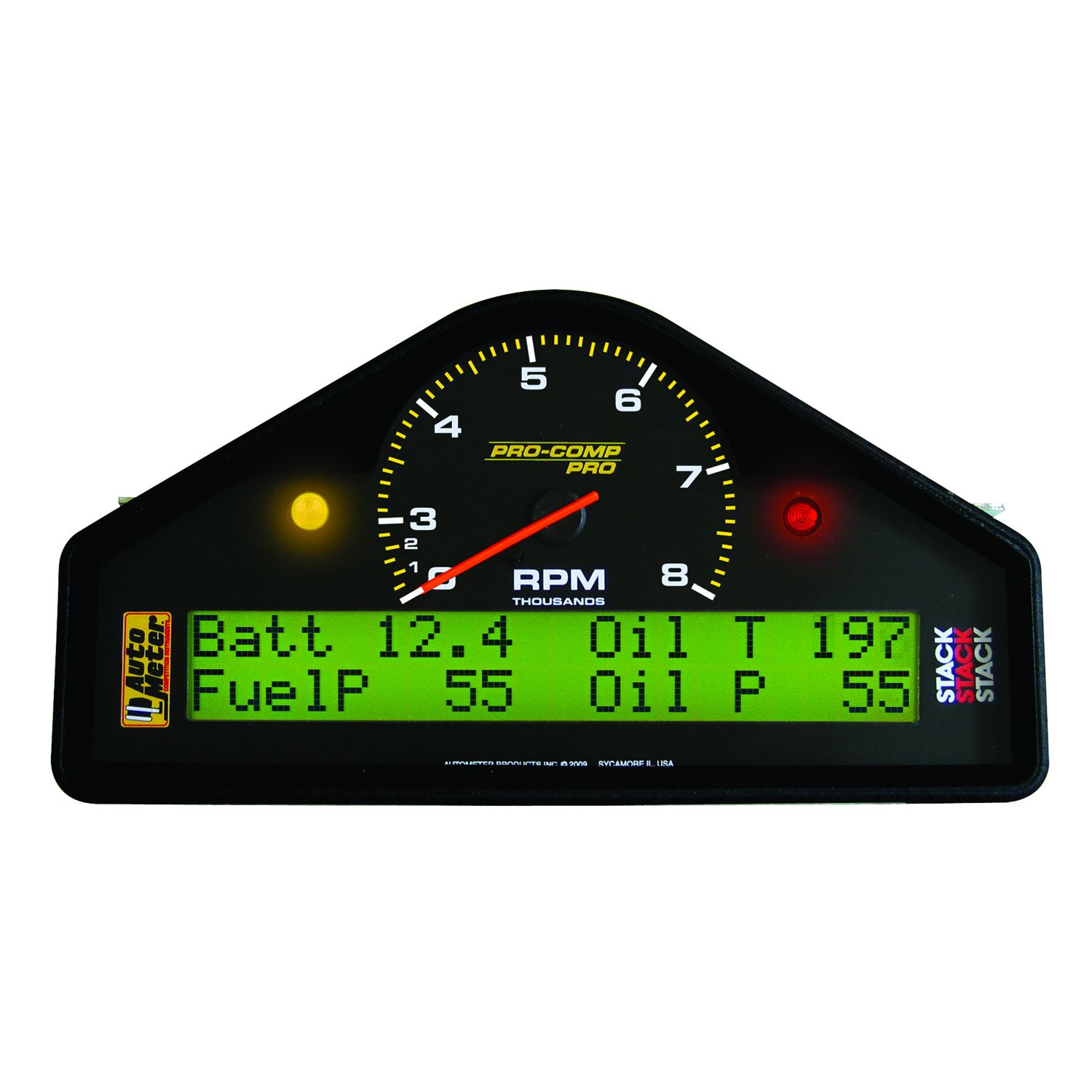

Stack Instruments Series, Race Display, Pre-Configured, Black, 0-3-8K RPM (Bar, Degree C, Km/H)

• Intelligent Alarm System
• Sealed (IP67) Carbon Composite Casing
• Sensors Included
• Displays: RPM, Oil Pressure and Temperature, Water Temperature, Fuel Pressure, and Battery Voltage. Speed optional with purchase of speed sensor separately.
• Ideal for naturally aspirated race cars
• External Shift & Alarm Light Outputs - 5 Stage External Sequential Shift Light Option
• Combination of Analog & Digital Display Types
• Simultaneous display of up to 5 parameters
• Optional Lap Time, Predictive Lap Display, Corner and Straight Speeds
• Professional Wiring Loom with Military Connector

Stack Instruments Series, Race Display, Pre-Configured, Black, 0-3-8K RPM (PSI, Degree C, MPH)

• Intelligent Alarm System
• Sealed (IP67) Carbon Composite Casing
• Sensors Included
• Displays: RPM, Oil Pressure and Temperature, Water Temperature, Fuel Pressure, and Battery Voltage. Speed optional with purchase of speed sensor separately.
• Ideal for naturally aspirated race cars
• External Shift & Alarm Light Outputs - 5 Stage External Sequential Shift Light Option
• Combination of Analog & Digital Display Types
• Simultaneous display of up to 5 parameters
• Optional Lap Time, Predictive Lap Display, Corner and Straight Speeds
• Professional Wiring Loom with Military Connector

Stack Instruments Series, Race Display, Pre-Configured, Black, 0-3-8K RPM (PSI, Degree F, MPH)

• Intelligent Alarm System
• Sealed (IP67) Carbon Composite Casing
• Sensors Included
• Displays: RPM, Oil Pressure and Temperature, Water Temperature, Fuel Pressure, and Battery Voltage. Speed optional with purchase of speed sensor separately.
• Ideal for naturally aspirated race cars
• External Shift & Alarm Light Outputs - 5 Stage External Sequential Shift Light Option
• Combination of Analog & Digital Display Types
• Simultaneous display of up to 5 parameters
• Optional Lap Time, Predictive Lap Display, Corner and Straight Speeds
• Professional Wiring Loom with Military Connector

Stack Instruments Series, Race Display, Pre-Configured, Black, 0-3-8K RPM Invert (Bar, Degree C, Km/H)

• Intelligent Alarm System
• Sealed (IP67) Carbon Composite Casing
• Sensors Included
• Displays: RPM, Oil Pressure and Temperature, Water Temperature, Fuel Pressure, and Battery Voltage. Speed optional with purchase of speed sensor separately.
• Ideal for naturally aspirated race cars
• External Shift & Alarm Light Outputs - 5 Stage External Sequential Shift Light Option
• Combination of Analog & Digital Display Types
• Simultaneous display of up to 5 parameters
• Optional Lap Time, Predictive Lap Display, Corner and Straight Speeds
• Professional Wiring Loom with Military Connector

Stack Instruments Series, Race Display, Pre-Configured, Black, 0-3-8K RPM Invert (PSI, Degree C, MPH)

• Intelligent Alarm System
• Sealed (IP67) Carbon Composite Casing
• Sensors Included
• Displays: RPM, Oil Pressure and Temperature, Water Temperature, Fuel Pressure, and Battery Voltage. Speed optional with purchase of speed sensor separately.
• Ideal for naturally aspirated race cars
• External Shift & Alarm Light Outputs - 5 Stage External Sequential Shift Light Option
• Combination of Analog & Digital Display Types
• Simultaneous display of up to 5 parameters
• Optional Lap Time, Predictive Lap Display, Corner and Straight Speeds
• Professional Wiring Loom with Military Connector
