These elbows were developed by the Edelbrock engineering team using the latest in Computational Fluid Dynamic (CFD) software. Elbow #3814 has universal bolt pattern to adapt a single TB (Up to a 95mm) to a 4500 flange
The Edelbrock 3847 Elbow can be used in square bore (4150 style) manifold applications. It accommodates LS1 80 mm or Edelbrock PN 3864 LS2 (90mm 4-bolt) or Ford style 75mm throttle bodies.
The Edelbrock 3847 Elbow can be used in square bore (4150 style) manifold applications. It accommodates LS1 80 mm or Edelbrock PN 3864 LS2 (90mm 4-bolt) or Ford style 75mm throttle bodies.

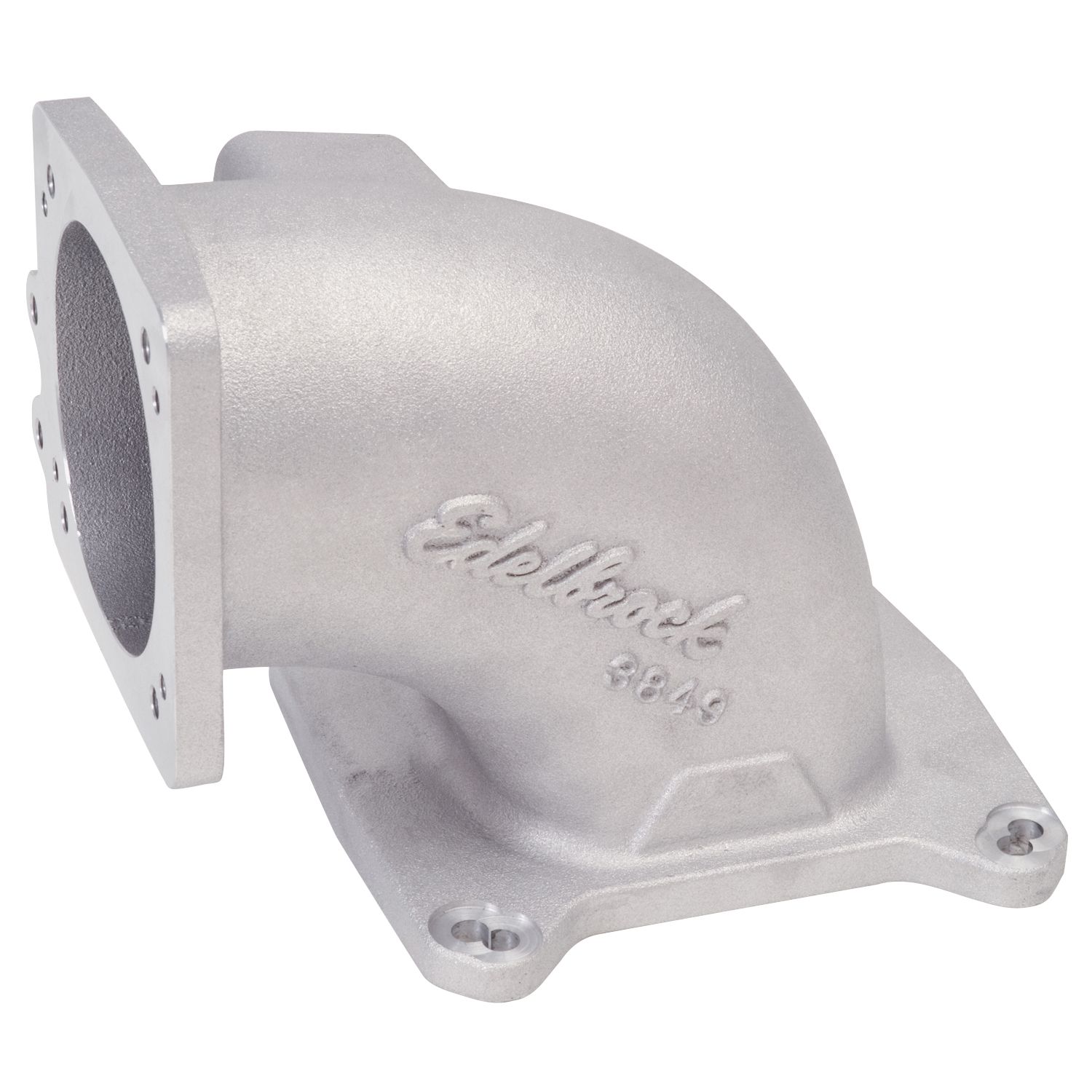

These elbows were developed by the Edelbrock engineering team using the latest in Computational Fluid Dynamic (CFD) software. High Flow Intake Elbow 3849 can be used with up to a 95mm Throttle Body.
The Edelbrock 38493 Intake elbow was developed by the Edelbrock engineering team. High Flow Intake Elbow (up to 95mm Throttle Body). This version is powder coated with a black mini-texture prior to being machined.
The Edelbrock High-Flow EFI Intake Elbow #3815 is intended for high-power EFI applications and is capable of over 1,400 naturally aspirated horsepower.
